Product Description

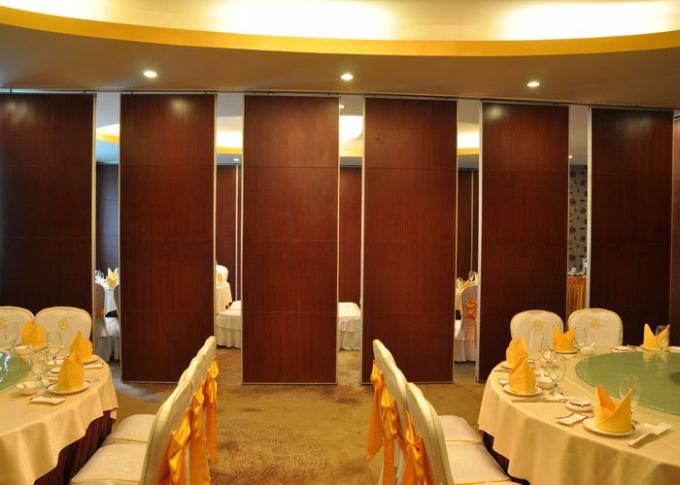

Restaurant Movable Wooden Melamine Folding Sound Proof Partition Wall Malaysia
Product Details:
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) |
Bottom Seal(mm)/ Pressure(kg) |
LCP stretch (mm) | ||||
| BG65-32 | 22 | 60 | 32db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 |
| BG65-38 | 27 | 60 | 38db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 |
| BG65-45 | 35 | 60 | 45db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 |
1)Thickness panel:65mm,85mm,100mm, height from 2 meter to 17 meters
2)Top supported without floor track or guide
3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available
4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side
5) Sound insulation coefficien :STC 32db to 53 db, ASTM standard of acoustic tested in HongKong.
6) Available in wide range of finishes.
7) Fast delivery and Rich experiences in oversea project installation guide & supervision.
Specifications:
The wooden sound proof partition wall consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant,schools,office,religion,hospitals,shopping arcades and many other indoor applications product.
There are wide of range face finishes are available:melamine faced MDF or
Plywood,,fabric,carpet,fabric,artificial,leather,wood veneer,high pressure laminate,Formica ,acoustic panel,white boad ect.,panels may also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.
BUNGE works with Architects,designer,developers,contractores and owners in design product selection,decorative finishes,project management and after-sales warranty services as her one-stop solution business service.
| Product name | Wooden Movable Sound Proof Partition |
| type | movable,sliding,folding |
| material | MDF,MGO board,aluminium |
| finish | anti-fire fabric,leather,melamine |
| main accessories | track,hang wheel,transfer bar |
| width | 800-1200 mm(can be customized) |
| height | 2000-4500 mm(can be customized) |
| thickness | 65 mm/85 mm/100 mm |
| color | differernt kinds of colors are avaialble |
| acoustic coefficient | 30db-60db |
| fireproof | B1 |
| environmental | E1 |
Common Applications:
BUNGE soundproof movable partition wall can be used to Convention Centers, Gymnasiums, Religious Facilities, Hotels, Auditoriums, Corporate Training Facilities, Civic or Exposition Halls, Schools, Banquet Facilities, etc.
With movable sound proof partition wall systems, there are no more barriers to maximizing the potential of your available building spaces.
Specifications
| Color | Accept Customized |
|---|---|
| Application | Hotel,banquet Hall |
| Panel Width | 500 Mm--1230 Mm |
| Door Material | Melamine Board |
| Surface | Leather |
| Position | Interior |
| Open Style | Sliding |
| Feature | Sound Insulation |
| Product Name | Sound Proof Partitions |
| Size | 85 Mm(3 1/4 Inch) |
| Highlight | movable sound proof partitions , movable soundproof partition |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | BANGE |
| Certification | ISO9001 |
| Model Number | 85 mm sound proof partitions |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
