Product Description

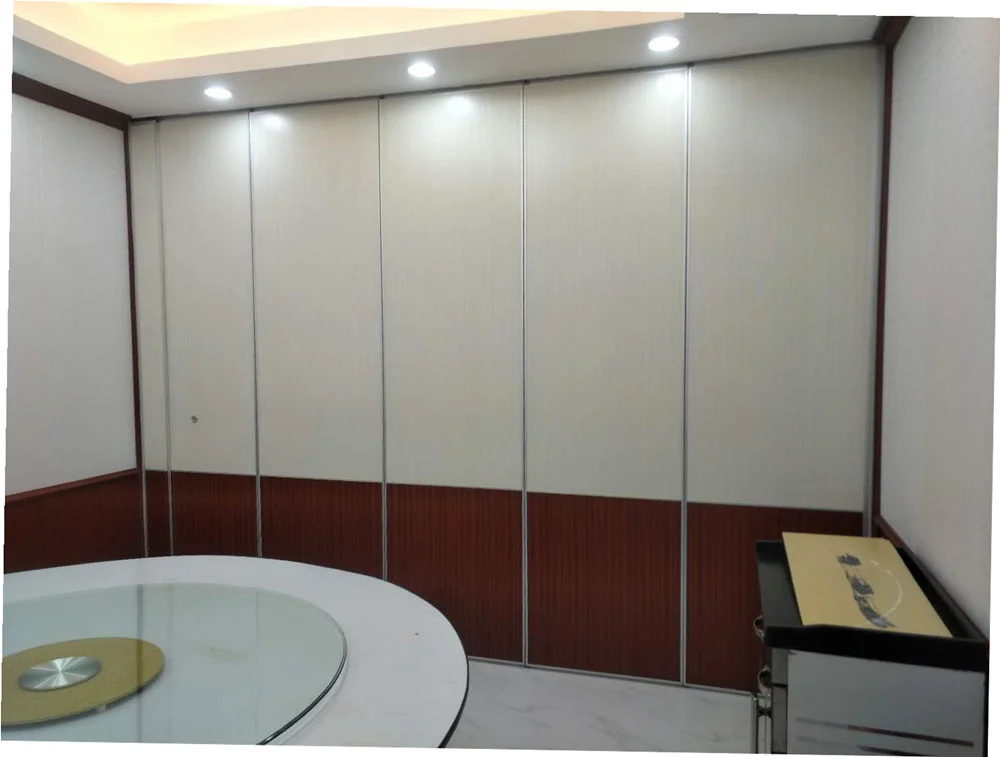

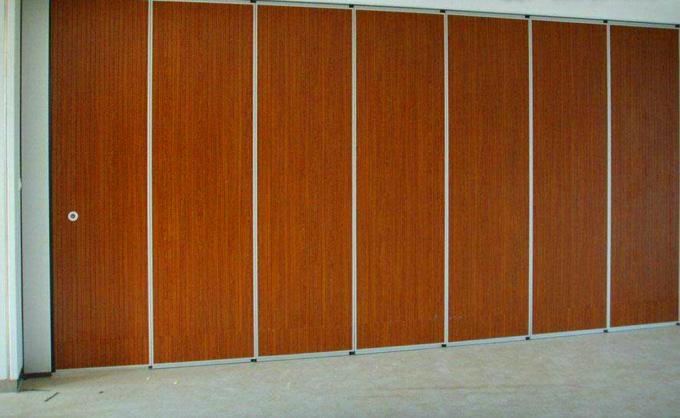

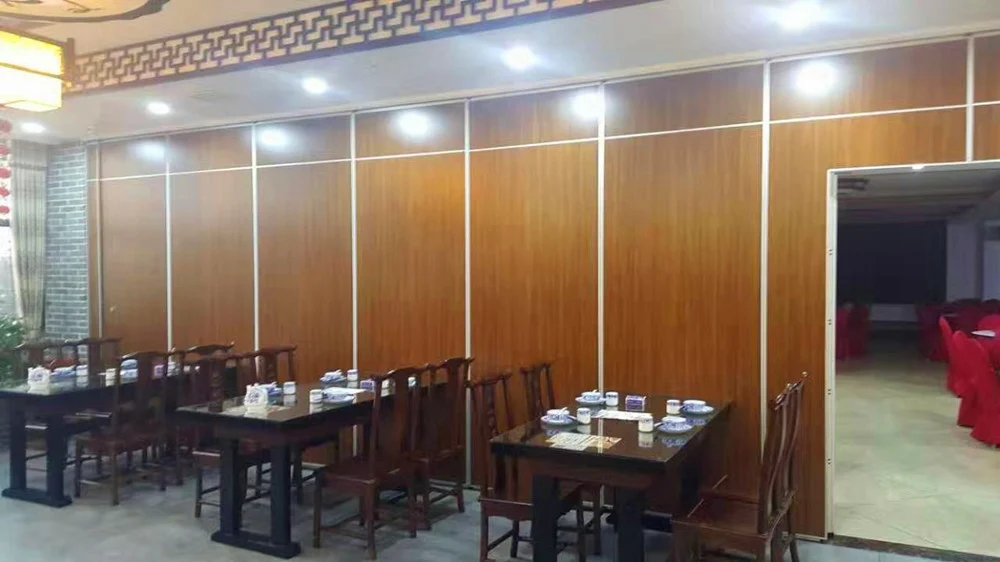

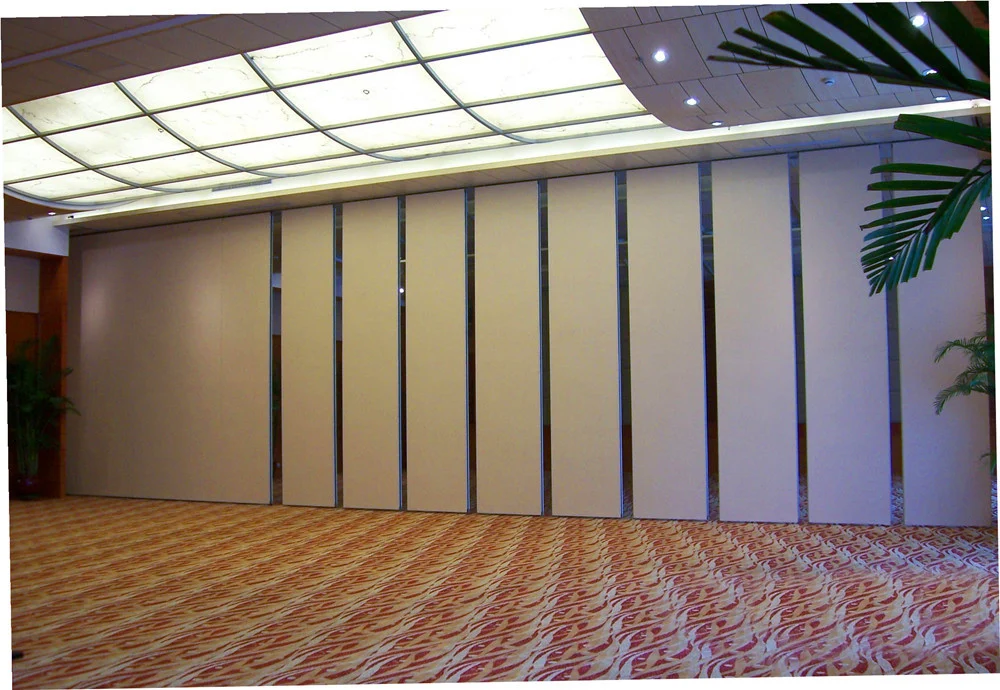

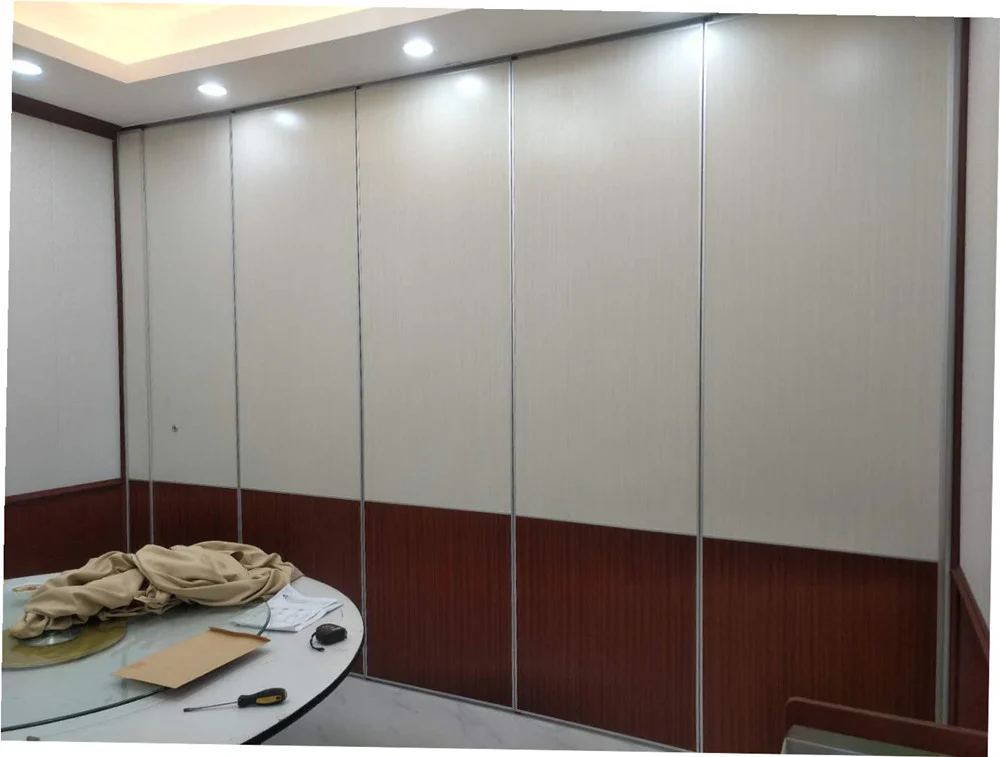

Top Hanging System Sliding Folding Movable Partitions Office Sound Proofing Wall Panel
Description:
Soundproof partition walls, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.
Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements and surface finishes, with melamine probably being the most popular.
Feature:
1.65mm ,85mm, 100mm aluminum frame thickness panel ,Max height up to 15 meters.
2.Top supported without floor track or guide, only have track on the ceiling.
3.clear anodized extruded aluminum tracks and frames,customized powder coated color are available.
4.Sound insulation certificate :STC 32db to 53db.
5.Available in wide range of finishes, melamine ,fabric/PU leather, HPL, printing etc.
6.Fast delivery and Rich experiences in oversea project installation guide & supervision.
Surface:
1. The partition wall of the movable partition series consists of glass, melamine board, fire board, color steel plate, gypsum board and other decorative materials.
2.The heart is made of aluminum alloy frame and steel with fire, moisture, noise, environmental protection, non-deformation and other functions, in the hotel partition layout, color and surface decoration, etc. to maintain the hotel after the partition is simple and exquisite, durable and flexible use Diversified spaces and very stylish hotel interior style after partition.
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 – 1200mm 1′ 5/8″ — 4′ |
500 – 1200mm 1′ 5/8″ — 4′ |
500 – 1200mm 1′ 5/8″ — 4′ |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Structure:
The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.
We can offer:
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
Specifications
| Height | 6 M |
|---|---|
| Color | Multi Color |
| Open Style | Folding |
| Application | Office,conference Room |
| Thickness | 85 Mm |
| Surface | Melamine,fabric,leather |
| Highlight | sounproof folding partition , movable soundproof partition |
Product Details
| Place of Origin | China,Guangzhou |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO9001 |
| Model Number | Series 65 mm sound proof partition |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
