Product Description

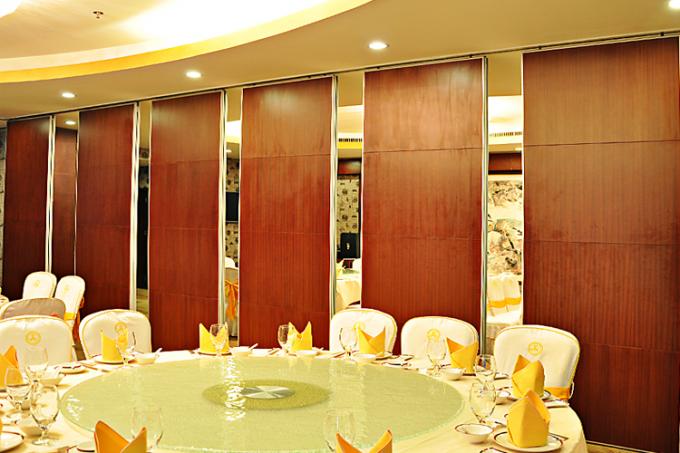

Removable commercial furniture soundproof partition wall for hotel
Technical information:
| Series | BG65 | BG85 | BG100&BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Advantage:
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Combines elegance with robust construction.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Sealed for life roller assemblies provide smooth and silent movement.
The system offers various levels of sound reduction.
Extensive range of surface finishes available.

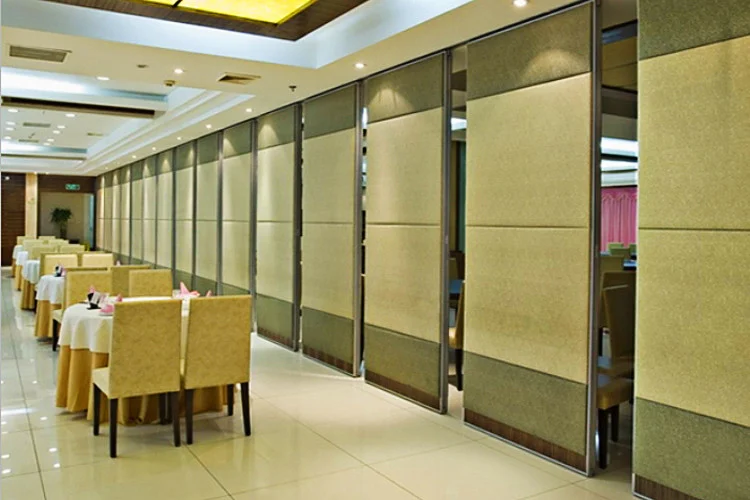

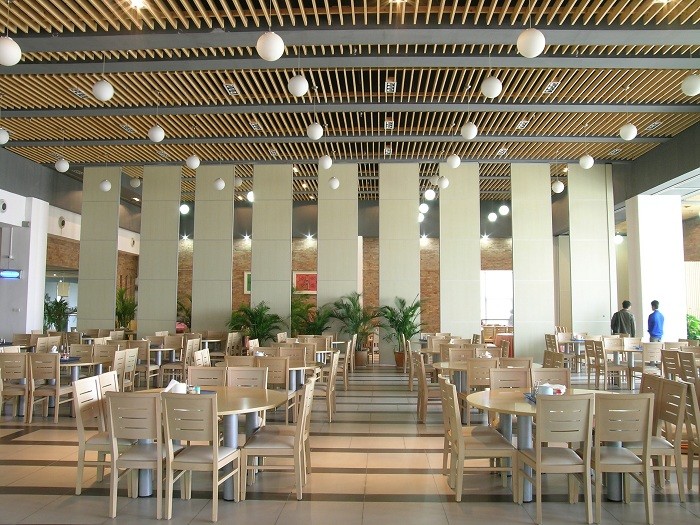

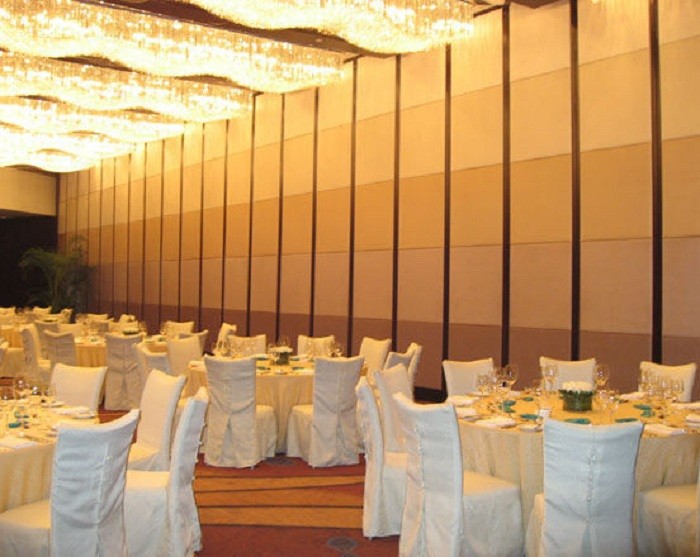

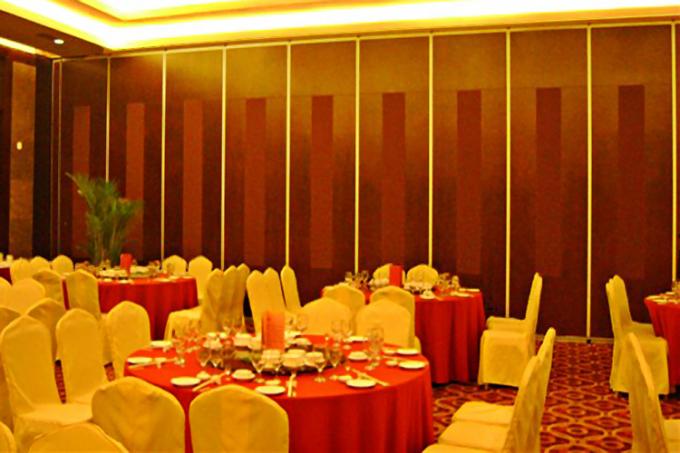

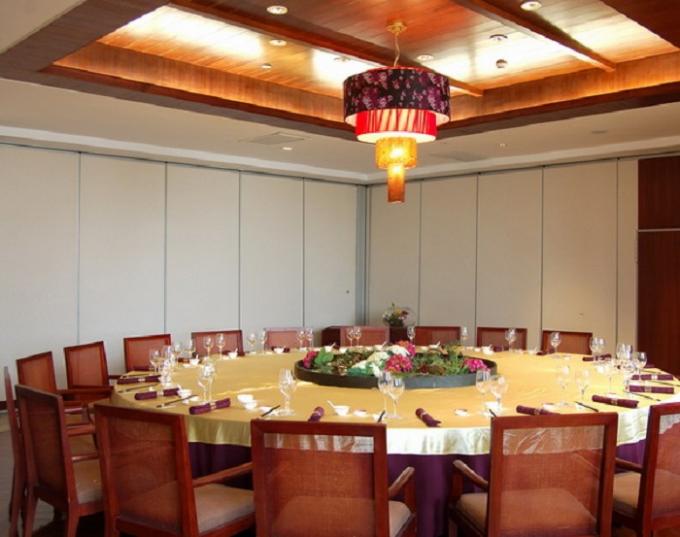

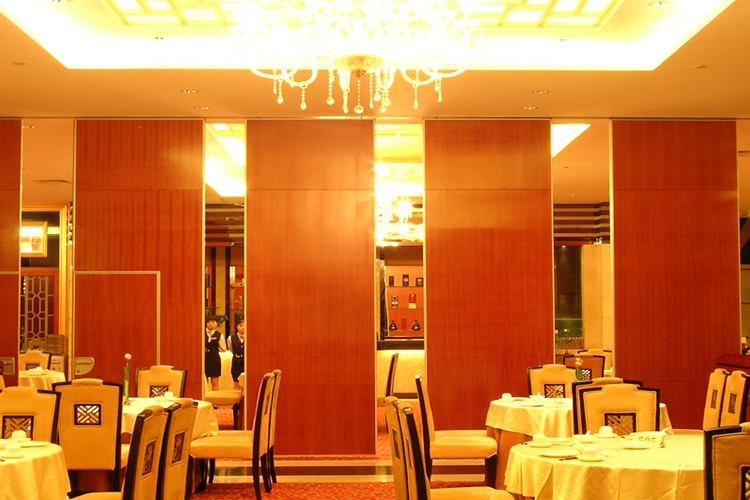

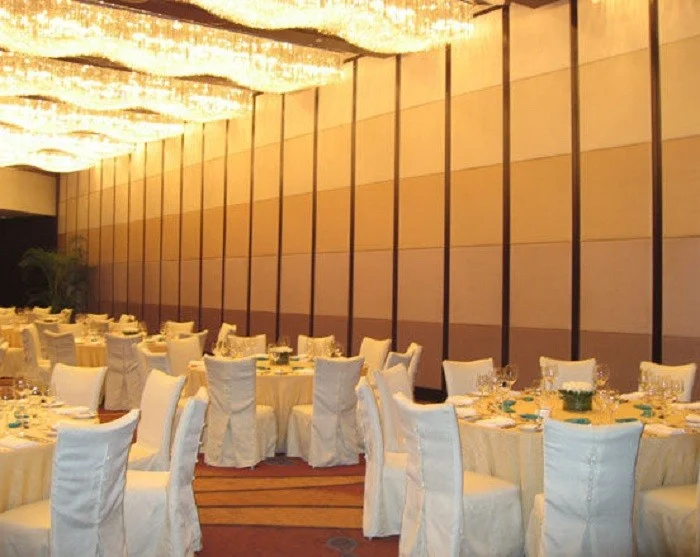

Case show:
Specification:
Our soundproof partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system .
Fair experience:
2010 Spring and Autumn Canton Fair/ Big Five in Dubai
2011 Big Five in Dubai/ Spring and Autumn Canton Fair
2012 March Brazil Fair and April Canton Fair/ July South Africa Fair/ Aug. Jordan Fair/ Oct. Canton Fair
2013 Spring Canton Fair/ Autumn Canton Fair
2014 Spring Canton Fair/ Autumn Canton Fair
2015 Spring Canton Fair /Autumn Canton Fair
Specifications
| Material | Wooden,fabric,leather |
|---|---|
| Certificate | ISO9001 |
| Height | 4 M |
| Thickness | 65 Mm |
| Width | 500/1200 Mm |
| Application | Hotel,restaurant,banquet Hall |
| Product Name | Movable Partition Wall |
| Service | OEM Service |
| Highlight | sounproof folding partition , movable sound proof partitions |
Product Details
| Place of Origin | China,Guangzhou |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO9001 |
| Model Number | Series 65 mm movable partition wall |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
