Name: Operable Room Divider Sound Proof Partitions Board Materials For Restaurant
Brand: EBUNGE

Product Description

Operable room divider sound proof partitions board materials for restaurant

Folding partition wall can separate the space speedy and conveniently.There is top hung system without the need for a floor track.Conference room soundproof wall partition is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.

Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.Soundproof movable partition wall is hanging on the aluminum track, assembled with muti direction wheels.

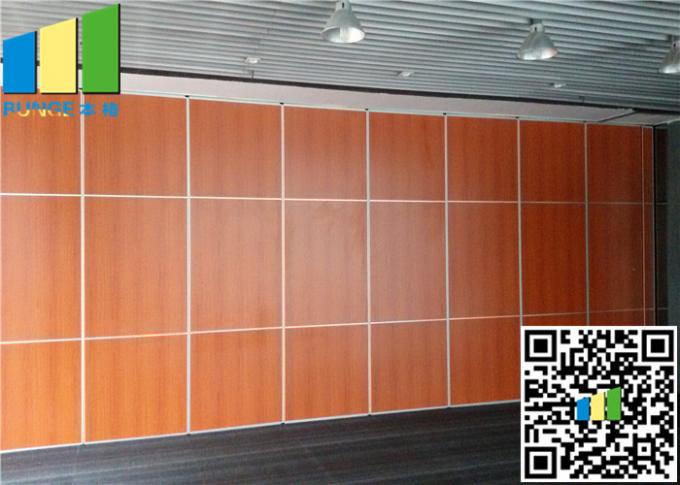

Operable Room Divider Sound Proof Partitions Board Materials For Restaurant 0

Technical parameters:

Series	BG65	BG85	BG100
Panel suspension	Top hung only	Top hung only	Top hung only
Track system	Single or twin point	Single or twin point	Single or twin point
Panel thickness	65mm	80mm / 85mm	100mm
Panel height	Up to 4000mm	Up to 6000mm	Up to 18000mm
Max height	4000mm	6000mm	18000mm
Panel width	600-1230mm	600-1230mm	600-1230mm
Frame construction	Aluminum frame	Aluminum frame	Aluminum frame
Face material	9mm	9mm / 12mm	12mm
Fire safety	Optional Class I or O	Optional Class I or O	Optional Class I or O
Vertical profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles
Retractable seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals
Operation of seals	Manual, with supplied operating handle	Manual, with supplied operating handle	Manual, with supplied operating handle
Locking	Optional lock to pass doors	Optional lock to pass doors	Optional lock to pass doors
Pass doors	Single open in panel or double open in two panel	Single open in panel or double open in two panel	Single open in panel or double open in two panel
Sound insulation	20-32dB Rw	28-36dB Rw	32-50dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx30-48kg/sq M
Finish Material	Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

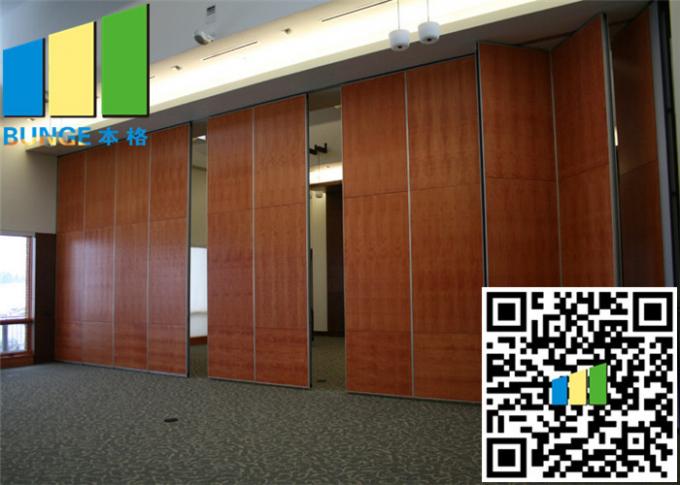

Operable Room Divider Sound Proof Partitions Board Materials For Restaurant 1

We design and manufacture value for many products with one year’s warranty on all the outstanding ranges illustrated in this brochure.
They offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.

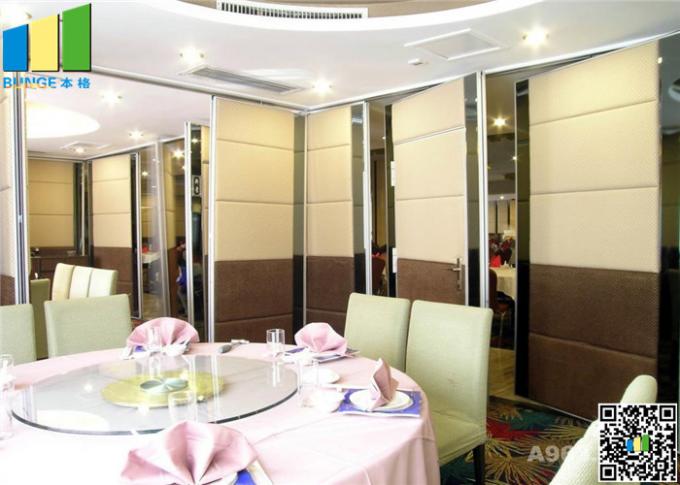

Operable Room Divider Sound Proof Partitions Board Materials For Restaurant 2

Folding partition are specified where functional space delineation is an integral element within the partition project. Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize the use of space. Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches,conference and function suites, exhibition centers,banks and restaurants.

Specifications

Product Name	Acoustic Room Dividers
Material	Aluminium Frame And Mdf Board
Height	Less Then 4 M
Width	500-1200 Mm
Thickness	65mm
Function	Space Divide,sound Proof
Application	Gallery,theater,office,banquet Hall,hotel Ect
Highlight	sounproof folding partition , movable soundproof partition

Product Details

Place of Origin	Guangzhou,China
Brand Name	EBUNGE
Model Number	Series 65 mm movable partitions
Packaging Details	Carton package, MDF batten on four section sides ,foam board on both front face.
