Product Description

High Quality Movable Modern Folding Soundproof Partitions for Conference Room



Features:

1> The Partition Board is made from high density s/s frame, special made rubber, excellent sound

insulation cotton and finish board etc. the finish board is flat and hard;



2> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the

board can be stored in may different ways;



3> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the

same plane with the ceiling decoration. It won’t affect the whole decoration style;



4> Around the board ,there is sound insulation rubber, it can help to insulate the sound entering;



5> The operation ways is much easier, it’s better than the old ways which was use spring before;

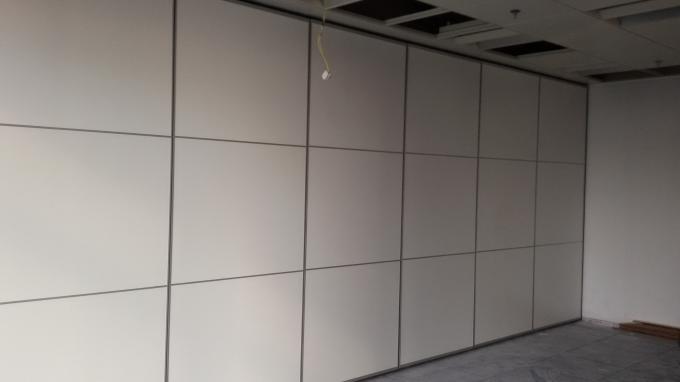

Movable Modern Folding Soundproof Partitions for Conference Room 0

EBUNGE Operable Wall Systems-Technical Information

TYPE BG65 BG85 BG100 & BG125
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M

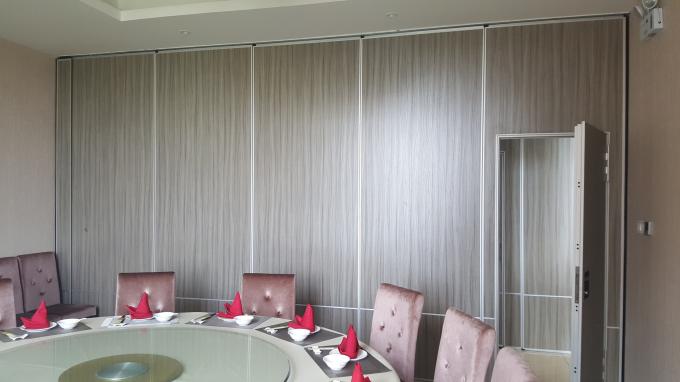

Movable Modern Folding Soundproof Partitions for Conference Room 1



2,FIXING

Movable Exhibition partition wall is also called sliding partition wall or movable sound insulation wall, which is widely used to divide big room into small rooms. Each piece of partition can turn 360 degree which makes it flexible. Different core materials decide its sound insulation performance and various finishes make it adapt to many projects such as hotel, exhibition hall, restaurant, multi-functional room, etc.

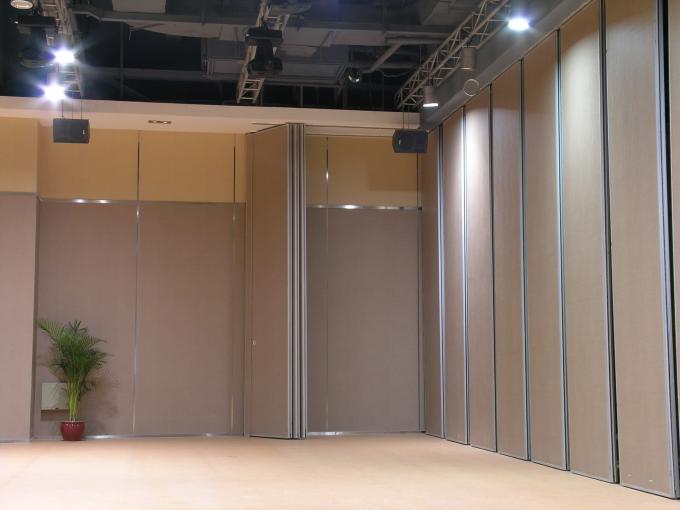

Movable Modern Folding Soundproof Partitions for Conference Room 2



Common Applications:

1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.

2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.

3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.

4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.

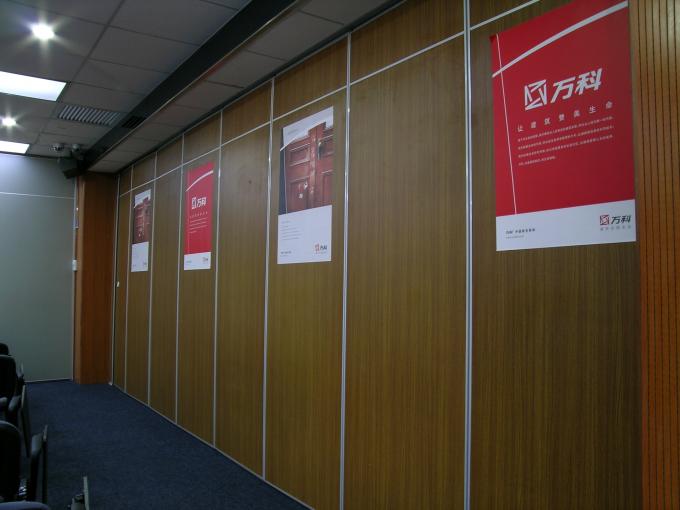

Movable Modern Folding Soundproof Partitions for Conference Room 3

Specifications

Panel Width500 Mm--1220 Mm
Thickness85 Mm(3 1/4 Inch)
FinishingMelamine,fabric,leather
Product NameSound Proof Partitions
ServiceOEM ODM
StyleOpening
ApplicationHotel,Banquet Hall
ColorColor Selective (Customized)
MaterialMDF+Aluminum
Highlightmovable sound proof partitions , movable soundproof partition

Product Details

Place of OriginGuangdong
Brand NameEBUNGE
CertificationISO9001
Model NumberSeries 85 mm sound proof patitions
Packaging DetailsCarton package, MDF batten on four section sides , foam board on both front face.
