Product Description

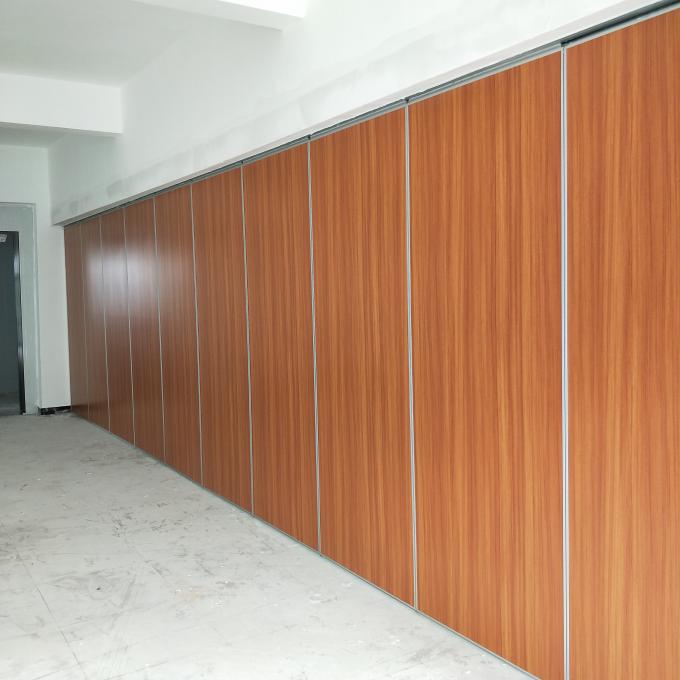

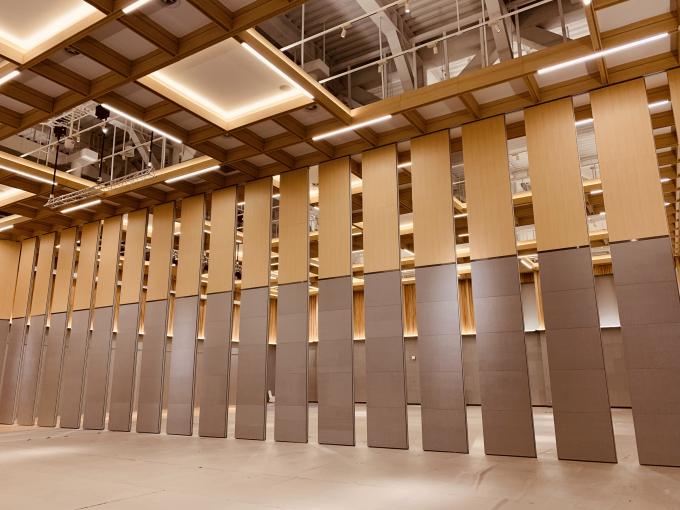

Panel Thickness 65 mm Floor to Ceiling System Sliding Soundproof Wall Partitions For Hotel
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Specification:
Bunge movable partition walls is made of high quality anodized aluminum frame with environmentally composite materials.The panels move on a ceiling track with no requirement of floor guides or rails,and they have a standard thickness of 65 mm,85 mm and 100 mm,and a width up to 1230 mm.Maximum height can reach 13 meter tall.
Soundproof partition wall feature:
Top hanging ceiling track, no need floor track.
Manual operation system, no automatic system.
Divide one room to two or more rooms.
Partition panels can be sliding and folding.
Easy to install.
Size and surface can be customized.
Soundproof partition surface:
Due to the movable partition walls flexibility and cost effectiveness, it allows large rooms to be conveniently sub-divided to maximize space utilization.
Operable wall material is customized built to suit the specified requirement. Movable partition system can be made from aluminium, gypsum, MDF, melamine-faced particleboard, plasterboard, plastic, PVC, softwood, stainless steel or wood veneer.
Application:
Increasingly, flexible and efficient space utilisation is becoming a must for offices, hotels, exhibition centres, studios and similar. Intelligent solutions are needed that facilitate multifunctional room configuration. You have at your disposal operable partition systems capable of harmoniously combining daylight-flooded and sound insulated room concepts.
Sliding aluminium accessories:
Track: The tracks are made from extruded 6063 – T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Seals: Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 22.5 MM or 23 mm.
Structure:
To create a better sound insulation folding partition wall door, we put high density fiberglass inside the partition frame, Sourcing from imported world famous fiberglass brand Owens Corning which is the best sound insulation cotton manufacturer.
Our service:
We offer quality, reliable solutions with partitions and moveable walls (solid or glass) and accordion doors, security grilles, and wood roll-up doors and shutters. We provide pricing, technical assistance, installation and design options for General Contractors, Architects, and Interior Designers.
Specifications
| Finished | Fabric,veneer,laminate |
|---|---|
| Height | Less Than 4 M |
| Thickness | 65 Mm |
| Width | 500-1200 Mm |
| Application | Hotel,restaurant,banquet Hall |
| Product Name | Sound Proof Partitions |
| Service | OEM Service |
| Open Style | Sliding |
| Position | Commercial |
| Color | Custom Design Color |
| Highlight | sounproof folding partition , movable soundproof partition |
Product Details
| Place of Origin | China,Guangzhou |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO9001 |
| Model Number | Series 65 mm sound proof partitions |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
