Product Description

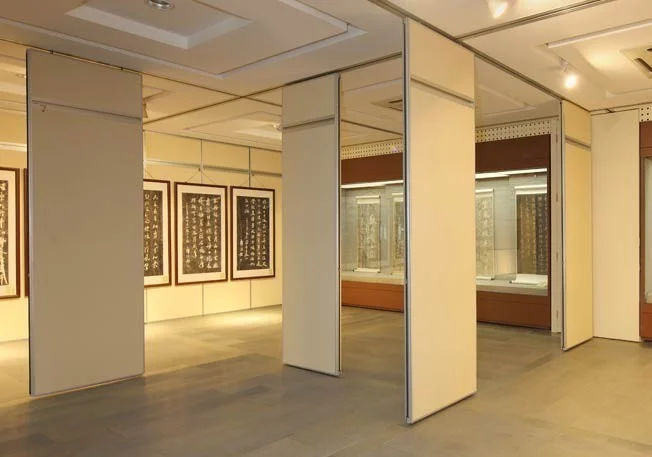

Commercial Furniture Aluminum Sliding Operable Sound Proof Partitions
Product Description:
Panel Suspension: Movable, top hung system without the need for floor track.
Panel Width: 600-1200mm
Roller on Panel: Single roller or double roller
Soundproof rate: 38db, 43db, 48db, 53db
Panel Frames: Heavy-duty Steel-gusseted aluminum inner frames reinforced with full height
Track: Aluminum track or steel track
Top & Bottom Seals: top and bottom pressure retractable seals ensure effortless moved and locked
Panel Stacking: Numerous panel stacking options for complete flexibility
Panel Face: MDF, Plywood, Woven fabric, Leather, Natural wood venner, Melamine, Wood moldings, etc.
Sound Proof Partition Features:
1. Stability and safety- The new type of foaming technology assures you of reliable stability,
2. Fire retardant- Excellent fire resistance, no burning against fire, carbonization with the skin, no droplets.
3. Sound proofing
With a 95% of the closed porosity of the middle core, the partition obstructs the spreading of sound, and ensure a quiet and peaceful environment.
4. Insulation value- Keep warming and heat insulation, which has excellent cold-resistance and heat-insulation performance to reduce the cost of heating and refrigeration.
5. Light – The board adopts the micropore foaming technology, and reduce the weight afford and installation budget a lot, and also can be easily moving.
6. Decoration on both sides- Choose any patterns on both sides of AEP, and make the partition much gorgeous and fabulous,
7.Flexible Uses – Useful in many applications – conference rooms, exhibition centers, restaurants, schools, churches, retail shops, or factories, etc
| TYPE | 65# | 85# | 100#&125# |
| Panel Suspension | top hung only | top hung only | top hung only |
| Track system | single or twin point | single or twin point | single or twin point |
| Panel thickness | 65mm | 80mm | 100mm |
| Panel height | up to 4000mm, higher than 3000mm refer our tech data | up to 6000mm, higher than 6000mm refer our tech data | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame | Aluminium or Steel | Aluminium or Steel | Aluminium or Steel |
| Face Material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire Safety | Class I or 0 | Class I or 0 | Class I or 0 |
| Vertical | Aluminium, anodised with sealing profils, painted-optional | ||
| Retractable seals | Aluminium, black with double rubber seals | ||
| Operation of seals | manual, with supplied operating handle | ||
| Locking | optional lock to pass doors | ||
| Doors | single open in one panel or double open in two panel | ||
| Sound insulation | 40/44/47/50db | 40/44/47/50/53db | 40/44/47/50/53/58db |
| Weight | 33-44kg/m2 | 43-50kg/m2 | 63-70kg/m2 |
Application
1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects
Specifications
| Material | Melamine |
|---|---|
| Door Material | Melamine Board |
| Position | Interior |
| Open Style | Sliding |
| Feature | Sound Proofing |
| Color | Accept Customized |
| Size | 85 Mm(3 1/4 Inch) |
| Product Name | Sound Proof Partitions |
| Application | Hotel,banquet Hall |
| Panel Width | 500 Mm--1230 Mm |
| Highlight | sounproof folding partition , movable sound proof partitions |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | BANGE |
| Certification | ISO9001 |
| Model Number | 85 mm sound proof partition |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
