Aluminum Profile Decorative Acoustic Partition Wall Water - Proof Space Saving

Multi Color Customized Room Divider Decorative Flexible Sliding Partition Wall

Product Description

1) When moving a wall panel, there is a 20-25mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.

2) Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.

3) The pressure seals are extend and retracted by a single 180 degree turn of removable operating handle.

4) Final Closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.

EBUNGE Soundproof Movable partition Features:

1- 65mm ,85mm, 100mm aluminum frame thickness panel ,Max height up to 15 meters.

2-Top supported without floor track or guide, only have track on the ceiling.

3- clear anodized extruded aluminum tracks and frames,customized powder coated color are available.

4- Sound insulation certificate :STC 32db to 45db

5- Available in wide range of finishes, melamine ,fabric/PU leather, HPL, printing etc.

6- Fast delivery and Rich experiences in oversea project installation guide & supervision.

We have 4 types of movable wall , 65type , 85type , 100type and 125 ultra-high type . You can choose the right

movable wall upon the Height and Soundproof requirement as following,

65 type— Max height 4m, soundproof: 20dB to 32dB

85 type— Max height:6m,Soundproof: 30dB to 38dB

100 type— Max height:7m,Soundproof: 35dB to 45dB

125ultra-height — Max height:15m,Soundproof : 35dB to 45dB

We offer:

Professional manufacturer, fine workmanship

Good in quality and reasonable in price

Timely delivery

Accept mixed order

100% origin raw materials

GraetFold Technical Description Feature

1.Change the room space flexibly.

2.Heavy Track loading capacity make sure the safety of Partition.

3.Precise welding between separate rail can avoid repairing and maintenances in high probability.

4.Partition retract and push easily, only one person can handle the moving job.

5.Wide application: can be used in Office place, commercial place, exhibition place, Hospital place, etc.

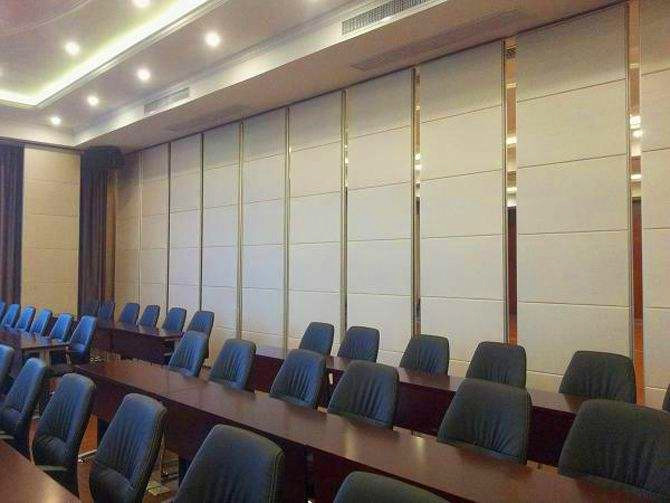

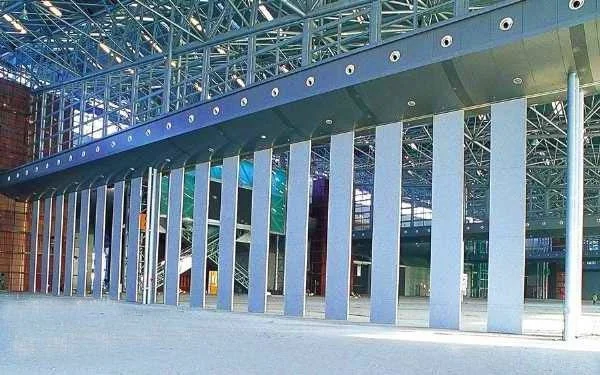

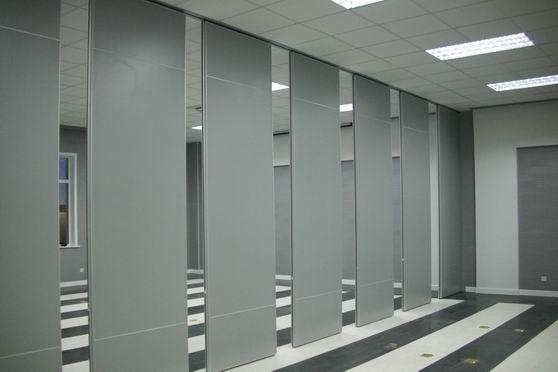

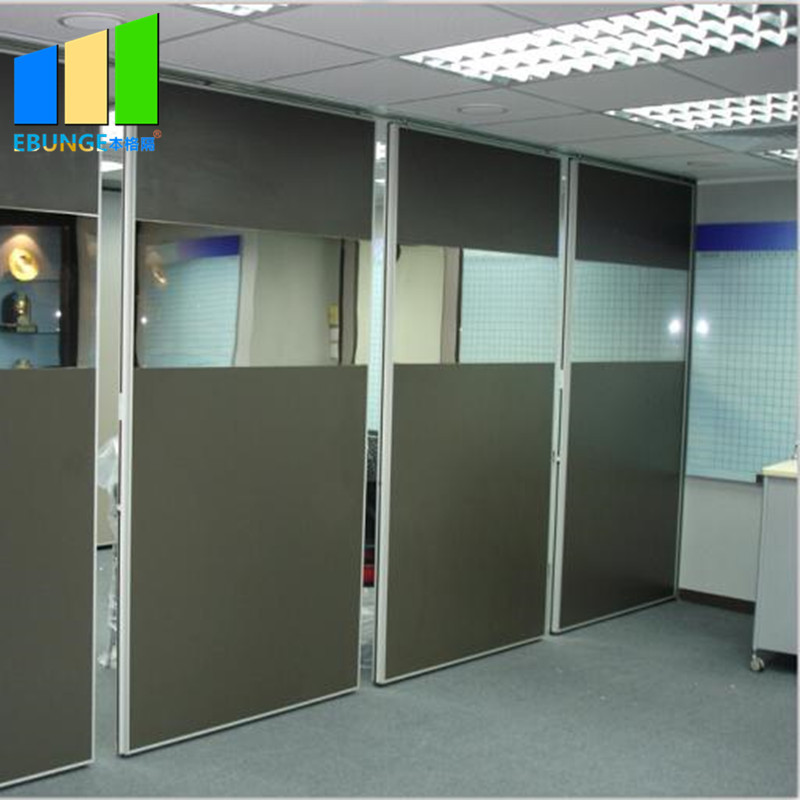

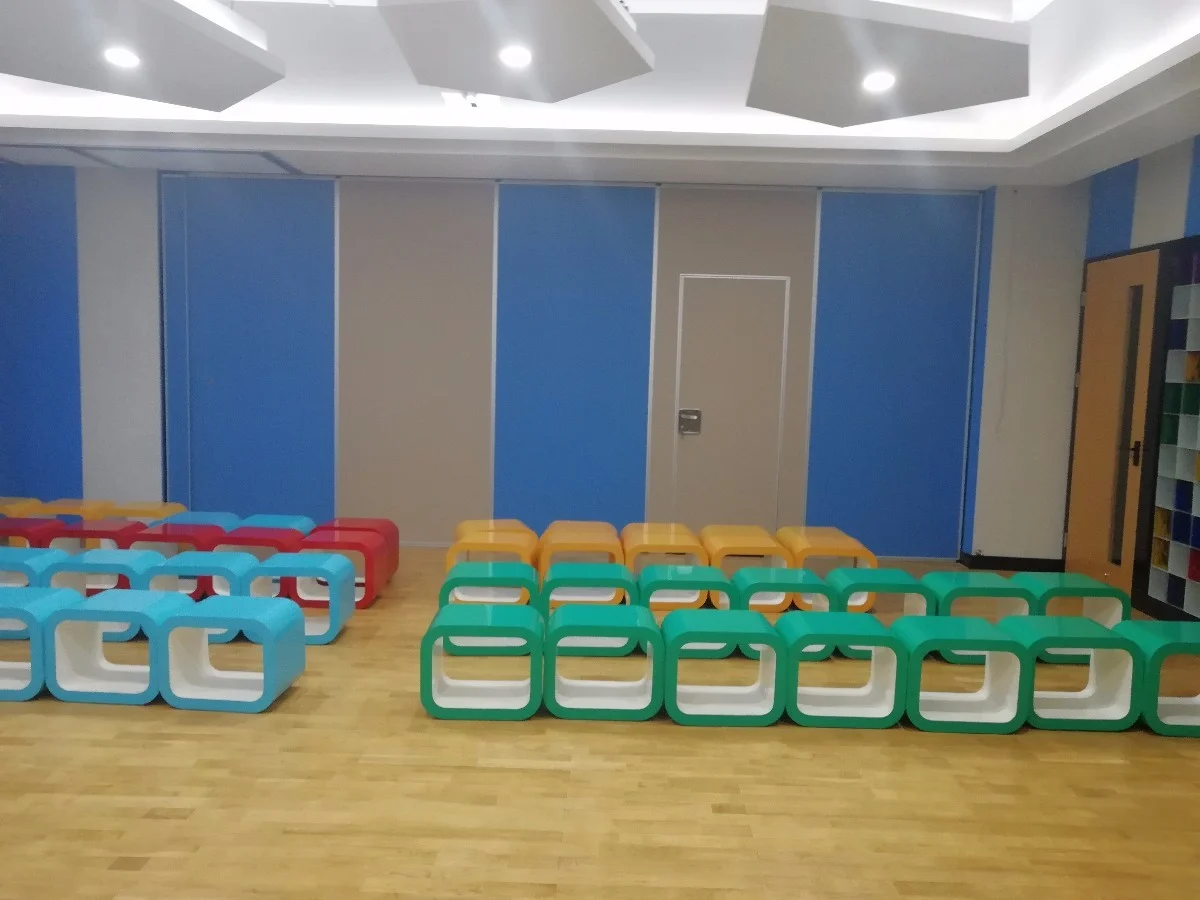

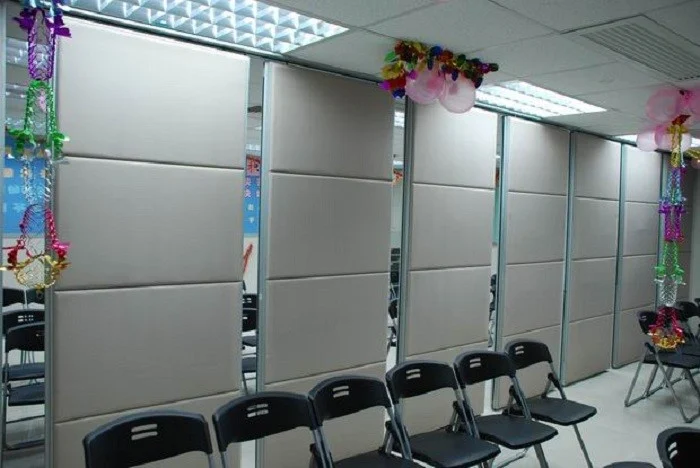

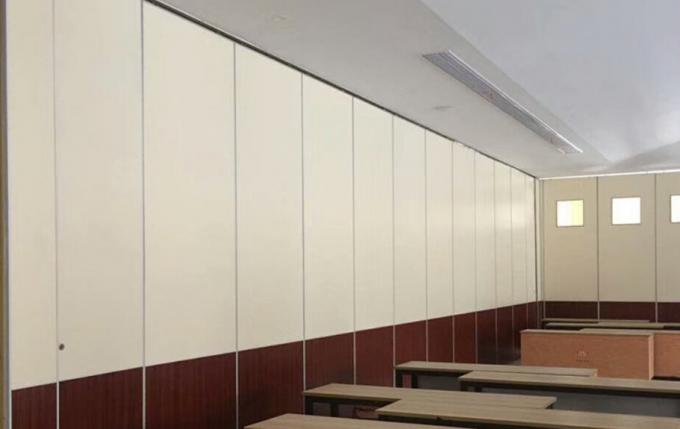

GreatFold movable partition products are widely used in Hotel, banquet hall, restaurant, high-end restaurant,

clubhouse, multi-purpose hall, museum, exhibition hall, international conference center, government office

building, financial system, school, hospital, factory, etc.
