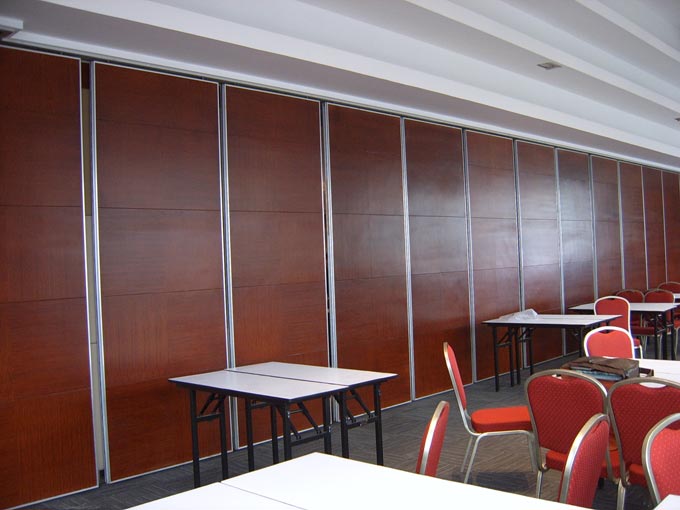

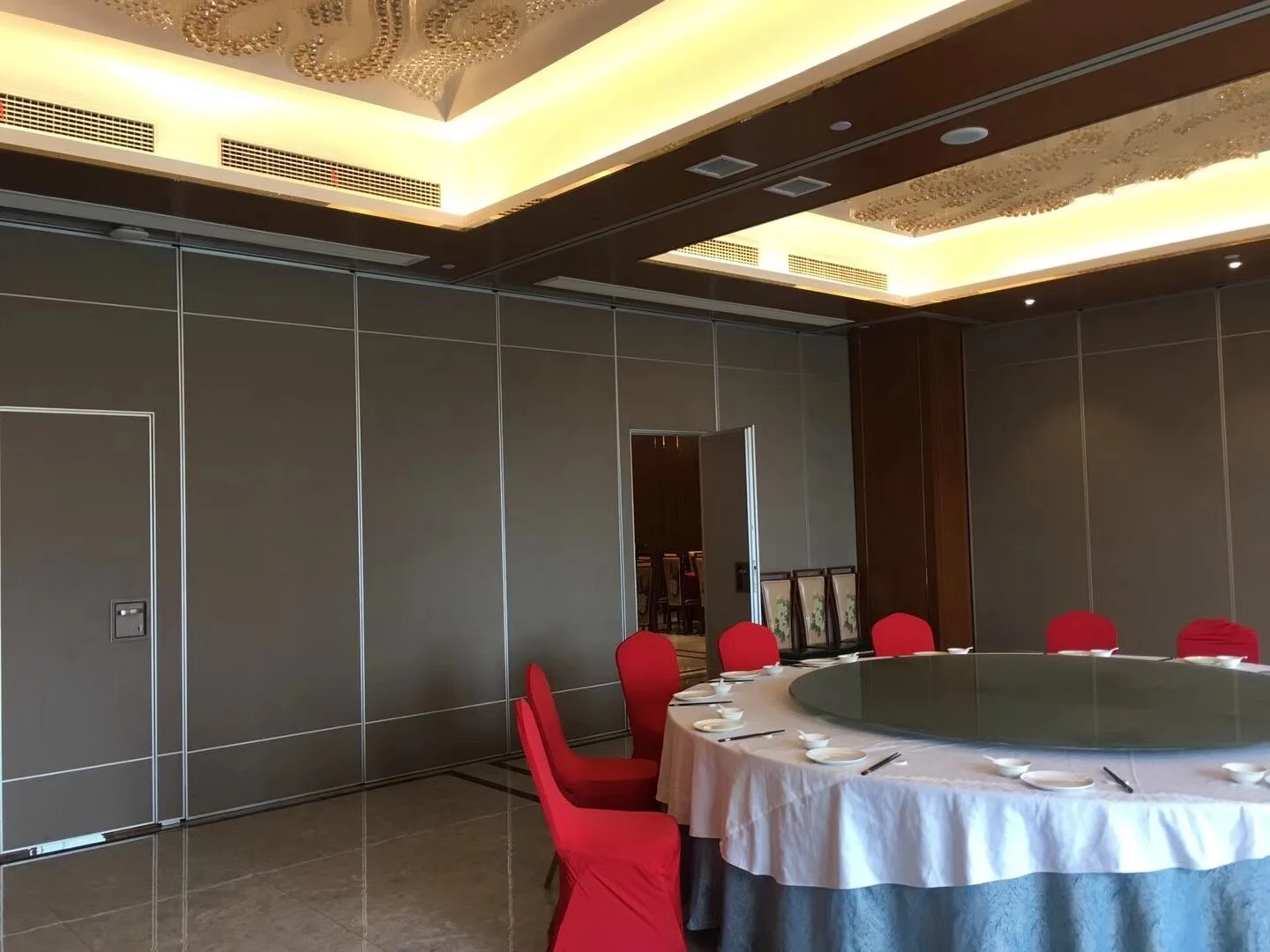

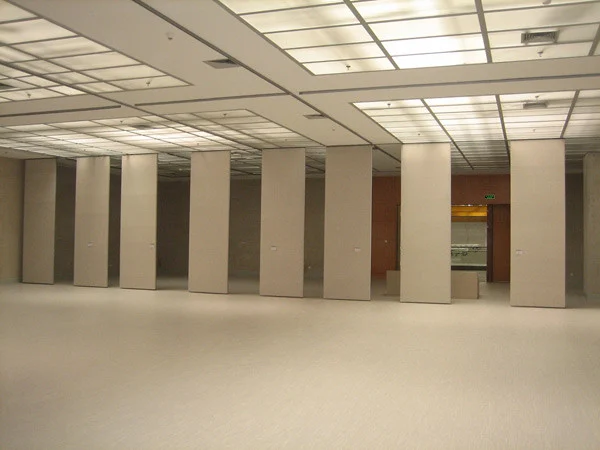

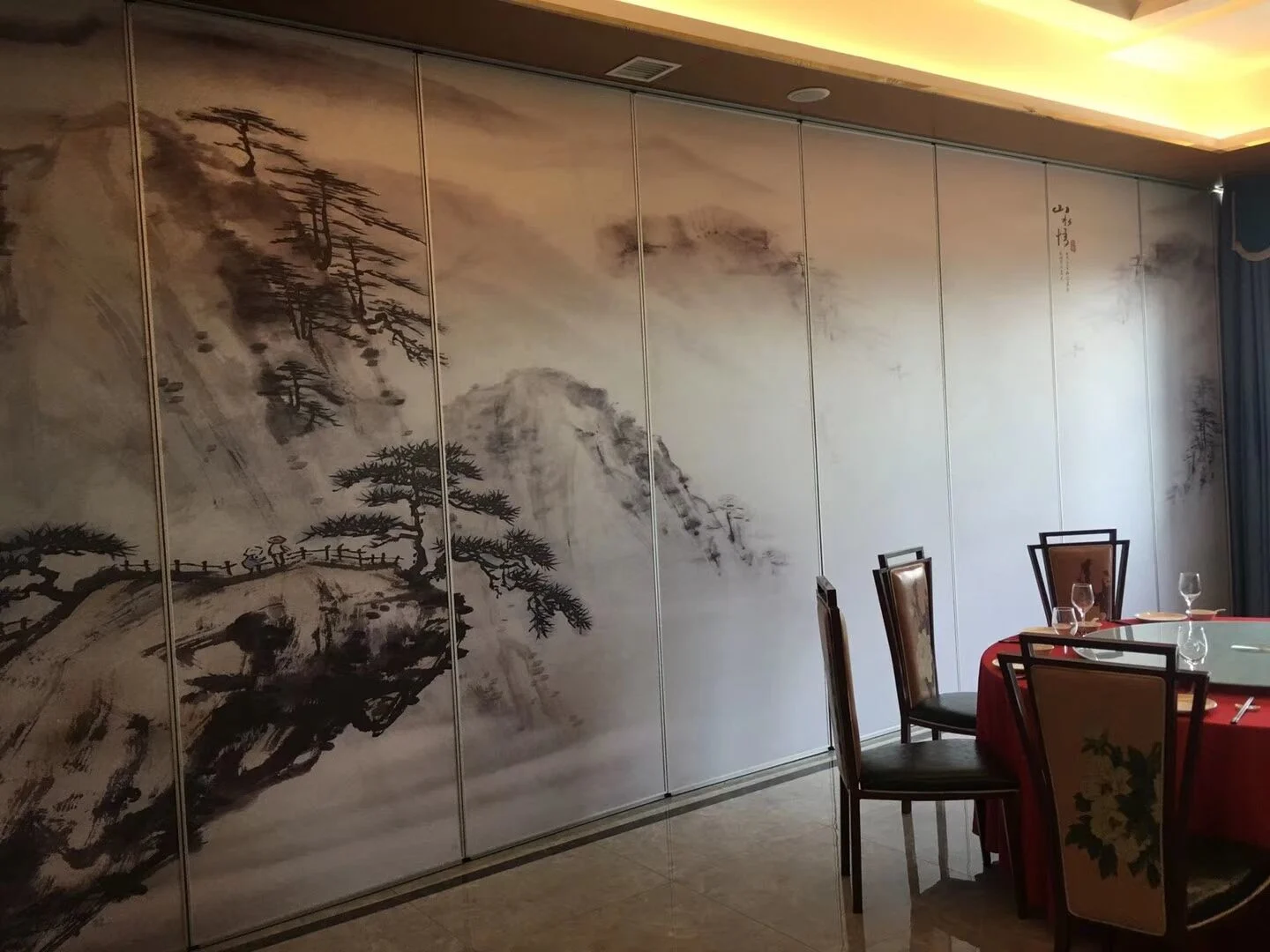

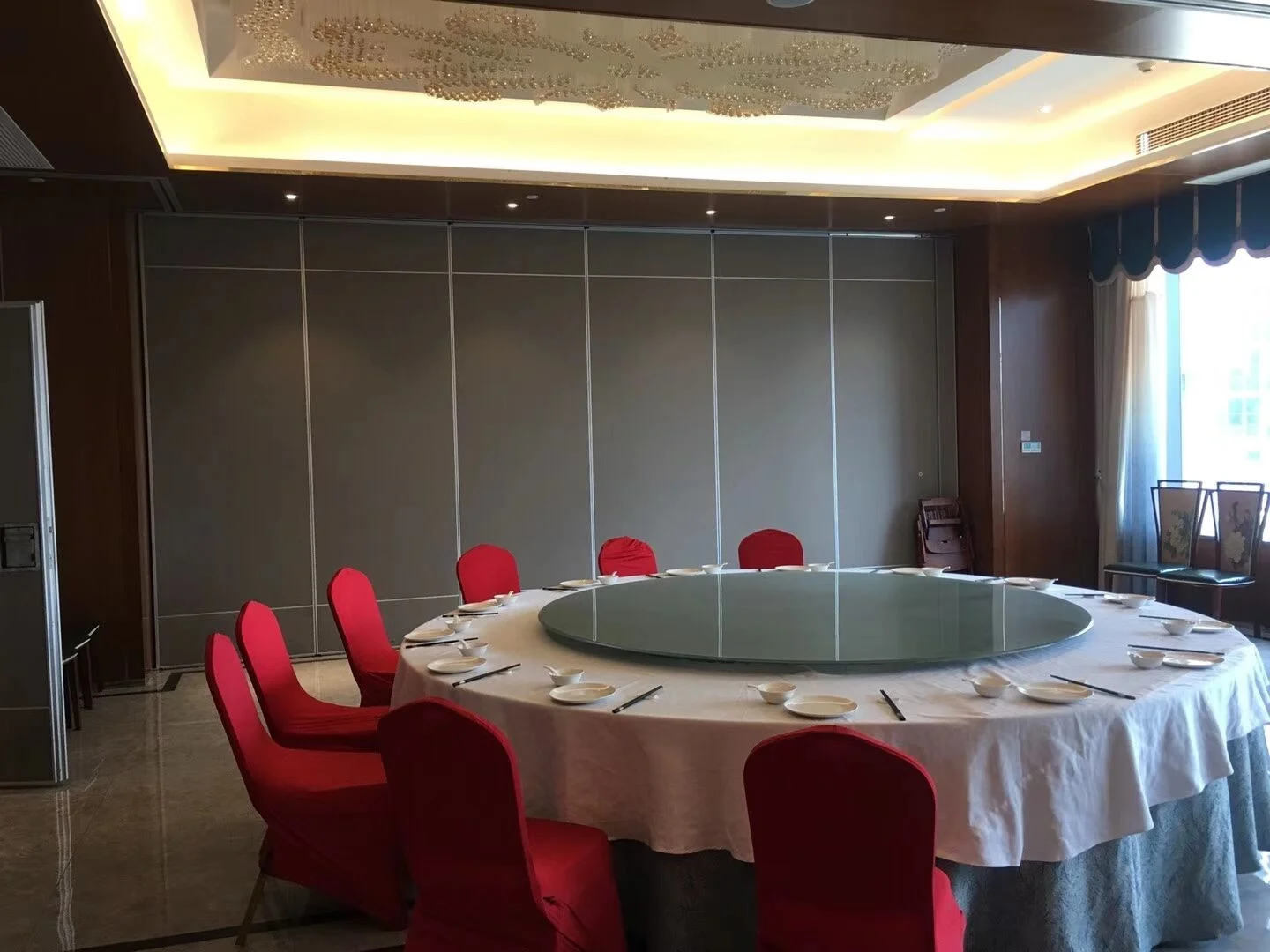

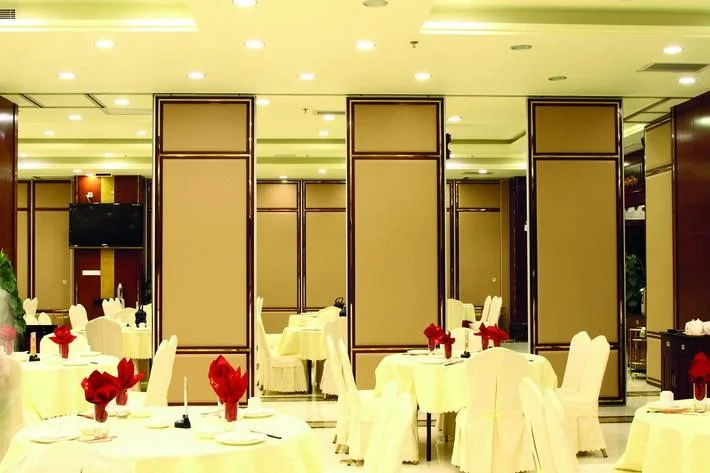

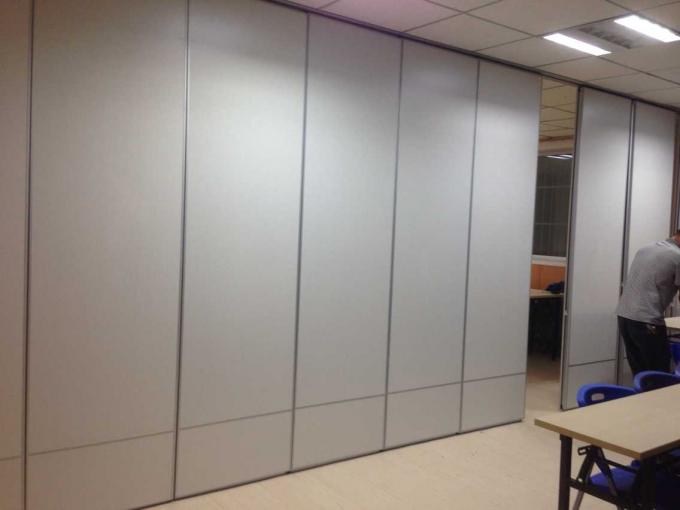

Acoustic Folding Partition Banquet Hall Sliding Soundproof Room Partition

Acoustic Folding Partition Banquet Hall Sliding Soundproof Room Partition

Technical information:

Specification:

Soundproof Partition Walls, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.

Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements and surface finishes, with melamine probably being the most popular.

The best door for maximum acoustic performance, with variable options on sound reduction from 32 dB (Rw) to 53 dB(Rw).
Also available with 30 and 60 minute fire resistance.

Manual or Semi automatic operation.

Soundproof partition wall feature:

Individual panels that can be stored away for maximum space utilization.

Operable top and bottom seals for effortless operation.

Isolated aluminium frame construction for enhanced acoustics.

High performance multiple in fill’s for maximum sound attenuation.

Unique track and carrier system ensuring quiet and easy operation.

Numerous panel stacking options for complete flexibility.

No floor track ensuring obstruction free threshold.

Three panel sizes to accommodate a wide range of acoustic requirements .

Extensive range of surface finishes can be applied.

Advantage:

Easy To move and soundproof
Thanks to the exclusive system: Polymer coated , self-lubricating, wear-resistant ball bearing trolleys.

Technical reliability
In its versions, range has undergone the most stringent endurance and mechanical resistance tests in laboratories or in own Test Center. 3-years warranty for parts and labour.

Quick to install
Tool locking of top and bottom rubber seals thanks to a manual system in each panel.

Surface
Melamine,plywood,acoustic fabric and leather

Framework (stylist)
Aluminium profiles that become totally invisible when flat by means of a hollow joint system.

Main material:

Soundproof partition paint-free decorative material has a natural texture, clear wood grain, and can be compared with logs. There are all kinds of wood species popular in the world, and there is no color difference on the surface of the product.

The product design is elaborate, the color matching is reasonable, the construction is convenient, and the saw is good.

Cut, never rupture, repair and trim, use paint-free line matching, glue with glue, no need to worry about ash after nailing, and no need to paint, can save labor and paint fee after construction, avoid paint on the human body Unhealthy odor and carcinogens not only save a long-term maintenance and care costs, but also shorten the construction time, the effect is elegant, the cost is reduced, so it is green, non-toxic, tasteless, pollution-free cross-century new generation of paint-free decoration Materials, products lead the new trend of decorative materials with their benefits.

The movable partition paint-free plate is one of the decorative plates. It has the characteristics of washing, abrasion resistance, moisture resistance, etc. and is economical. It is a good helper for modern decoration partitions.

Operation:

When moving a wall panel there is a 22.5-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.

Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.

The pressure seals are extended and retracted by a single 180°turn of a removable operating handle.

Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.

Our service:

We design and manufacture value for money products with a one year warranty on all the outstanding ranges illustrated in this brochure.

We offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
