Name: 65mm Movable Sound Proof Partitions Aluminum Interior Wall Panel For Office
Brand: EBUNGE

Product Description

65mm Movable Sound Proof Aluminum Interior Wall Panel For Office

Specification of Bunge movable partition:

Bunge movable partition walls is made of high quality anodized aluminum frame with environmentally composite materials . The panels move on a ceiling track with no requirement of floor guides or rails ,

and they have a standard thickness of 65mm , 80mm and 100mm , and a width up to 1230mm . Maximum height can reach 13meter tall .

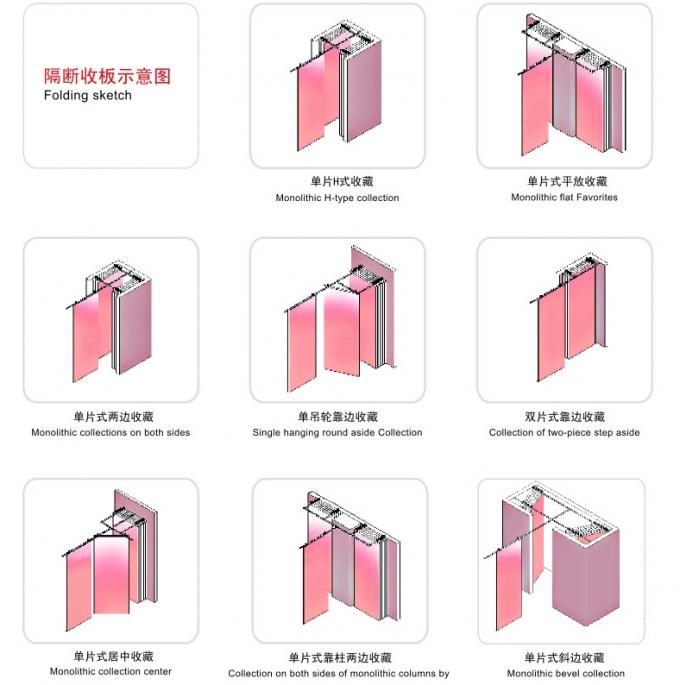

The accordion wall panel consists of a series of concave / convex profile interlocking flat panels and the fast set retractable top and bottom seals , it provides excellent acoustic insulation property of from STC-32 to 53 in laboratory setting . Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant , schools , office , religion , hospitals , shopping arcades and many other indoor applications product.

Bunge has adopted the advance partition technology of USA , Germany and Denmark . We have professional staff with more than 10 years of experience in design , production and installation.

Item	Movable Partition Wall
Material	Melamine , Glass , Fabric , MDF
Type	Tempered Glass Partition Wall
	Acoustic Folding Partition
Surface Finish	1. MDF Base board with Melamine Finish
	2. MDF board with Fabric Or Leather Finish
	3. Plywood Or MDF base board without any finish
Size and Design	Customized
Opening Style	Folding
Structure	Aluminum track , Trolley bearing , Acoustic Door Panel
Series	Thickness (mm)	Applied height (m)	Sound Insulation(db)	Referenced Weight
65	65	2.0 ~ 4.0	32 – 36	30 kg / m2
80	80	3.0 ~ 6.0	35 – 45	35 kg / m2
100	100	5.0 ~ 8.0	43 – 53	45 kg / m2
125	125	7.2 ~ 13.0	53 – 60	65 kg / m2
Package	1. Inner : Vacuum soft plastic film
	2. Outer : Carton / strong chipboard
Installation	Easy Installation , Provide the installation instruction
Application	Meeting room , dining hall , exhibition hall , Function room , office etc.
Delivery Time	35 – 45 days after receiving the deposit and confirming the shop drawing
Advantages	1.Good performance of sound insulation , thermal insulation and Fire prevention
	2.Save much space for your building
	3. No tracks on the floor , it’s easy to install and remove
	4.Beautiful appearance , it is widely used in many spaces , such as meeting room , dining hall , exhibition hall , Function room and office

	5. We can add single or double doors on the board for convenience
	6. Supplied our products for many projects all over the world

65mm Movable Sound Proof Partitions Aluminum Interior Wall Panel For Office 0

We Offer:

â A full professional design service

â Survey and installation guide

â Using top quality materials and components

â A fully experienced work team

â Maintenance contracts to ensure your valuable asset remains in full work order.

65mm Movable Sound Proof Partitions Aluminum Interior Wall Panel For Office 1

65mm Movable Sound Proof Partitions Aluminum Interior Wall Panel For Office 2

Specifications

Material	Aluminum Frame
Application	Hotel , Hall Meeting Room And So On
Type	Sliding Doors
Color	Multiple Color
Coefficient	36 - 50db
Highlight	sounproof folding partition , movable soundproof partition
