Product Description

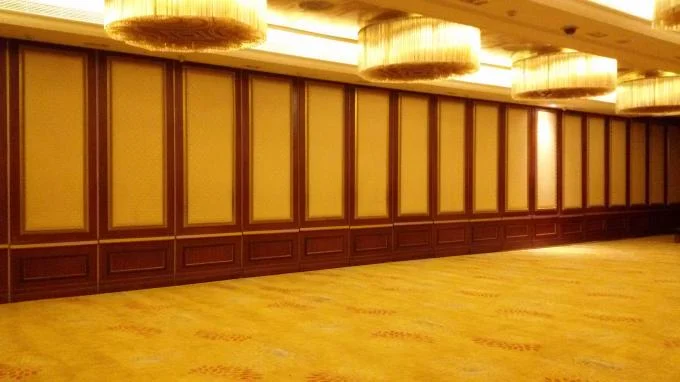

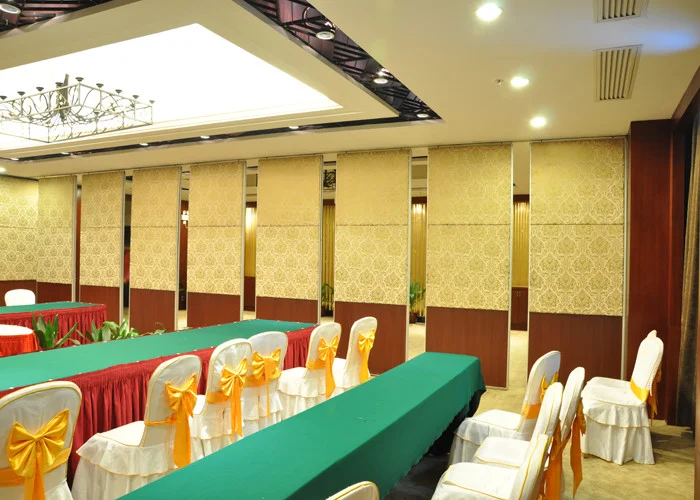

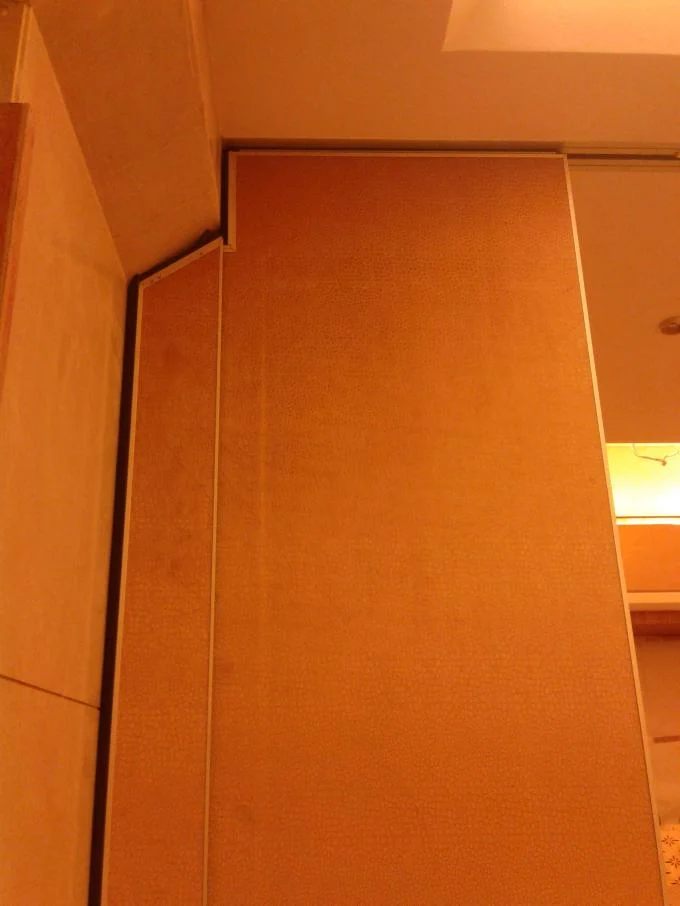

Wooden Partition Wall , Multi-Function Hall Movable Partition , Sound Proof
Specifications:
|
Technical Parameter for Partition Panel |
Panel Width |
500 – 1230mm |
|
Panel height |
2000 – 13000mm |
|
|
Sound proof |
42 – 55db |
|
|
Operation |
Manual |
|
|
Frame |
Aluminum |
|
|
Vertical profile |
Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside |
|
|
Finish options |
Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish |
|
|
Base options |
Plywood , Gypsum , steel , MDF |
|
|
Max width |
Unlimited |
|
|
Panel weight |
35 – 48 kg / sq |
|
|
Pass door selection |
door |
Single or double door |
|
Seals |
Top |
Manual |
|
bottom |
Manual |
Description :
The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards .
Track:
The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .
Operation :
Partitions shall be top supported , manually operated panels stacked in an area nominated in the plans. When closed , the operable wall shall provide a complete sound retardant barrier . No floor track shall be used.
Specifications
| Width | 800 - 1230mm |
|---|---|
| Track | Aluminum |
| Application | Hotel , Banquet Hall .meeting Room And So On |
| Material | Veneer , Plaster , MDF , Melamin , Fabric |
| Open Style | Sliding Doors |
| Position | Commercial |
| Highlight | acoustic operable partitions , acoustic operable wall |
Product Details
| Place of Origin | China |
|---|---|
| Brand Name | BUNGE |
| Model Number | Type100 |
| Packaging Details | Carton package , MDF batten on four section sides , foam board on both front face |
