Product Description

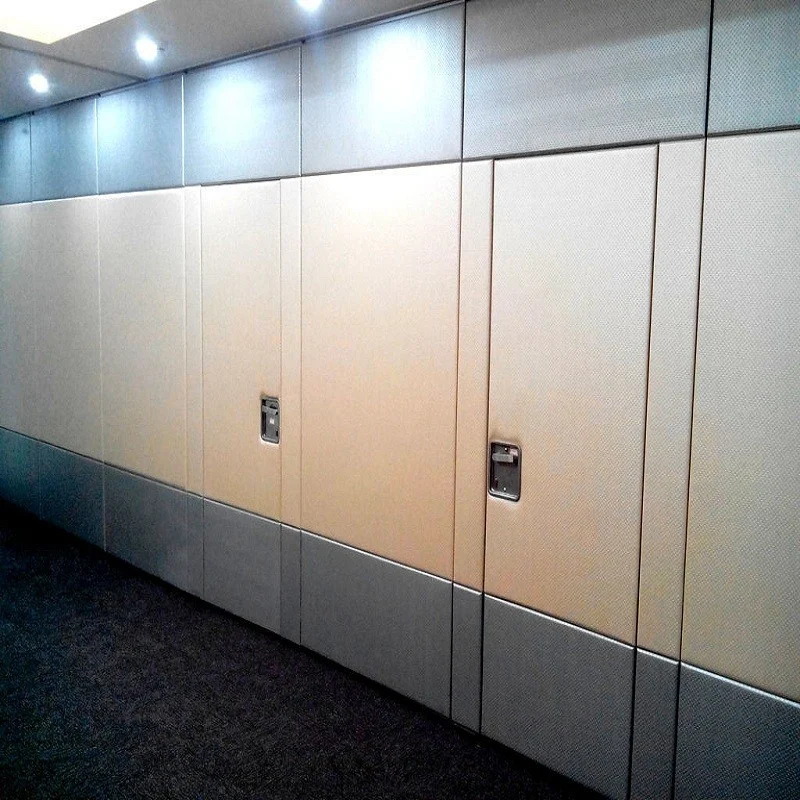

Movable Conference Room Partition Wooden Operable Folding Partition Walls
The details of folding partition walls
1)Thickness panel:65mm,85mm,100mm, height from 2 meter to 17 meters
2)Top supported without floor track or guide
3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available
4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side
5) Sound insulation coefficien :STC 32db to 53 db, ASTM standard of acoustic tested in HongKong.
6) Available in wide range of finishes.
7) Fast delivery and Rich experiences in oversea project installation guide & supervision.
8) We have 4 types of movable wall,65type,85type,100type and 125 ultra-high type. You can choose the right movable wall upon the Height and Soundproof requirement as following,
65type– Max height 3.5m, soundproof: 38dB to 43dB
85type- Max height:5.5m,Soundproof: 43dB to 53dB
100type— Max height:7m,Soundproof: 43dB to 58dB
125ultra-height—Max height:17m,Soundproof: 38dB to 48dB
Operation.
The continuously hinged panels are pulled from their parked position to ‘close’ (or extend) the wall and pushed back to the parked position to ‘open’ (or fold)the wall. Final flat alignment of wall panels is assisted pneumatically by a gas piston located in the top track. A lever or recess handle is fitted to the lead panel and this combined with a vertical rebated profile provides the system with its pass door. The door is available with or without a lock cylinder.
Application

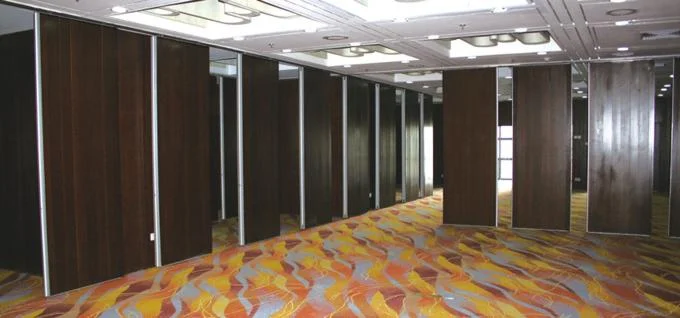

Our products (Movable Folding Partition Walls) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .
| Panel Suspension: | Top hunge system without the need for a floor track. |
| Panel Width: | Each panel 600mm-1200mm. |
| Track: | Aluminum OR Steel Track |
| Rollor on panel | Single or double roller |
| Panel Frames: | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals: | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module: | 700mm – 1200mm maximum. |
| Panel stacking: | Numerous panel stacking options for complete flexibility. |
| Panel face: | MDF,Plywood,woven fabric.Leather,Natural wood veneer, Melamine,Wood moldings, etc |
| Finishes: | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard. |
What you should do on site?
A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 200mm.
How to install?
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
What is lead time?
The lead time is 7 days to 10 days.
How to transport?
Sea transport is a common mode of transportation. In an emergency, can be air freight.
What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
Specifications
| Open Style | Sliding |
|---|---|
| Product Name | Folding Partition Walls |
| Feature | Sound Proofing |
| Size | 85 Mm |
| Color | Accept Customized |
| Application | Office,hotel,conference Room |
| Panel Width | 500 Mm--1230 Mm |
| Door Material | Melamine Board |
| Surface | Melamine,leather,fabric,plywood |
| Position | Interior |
| Width | 85 Mm(3 1/4 Inch) |
| Highlight | acoustic folding partition , soundproof folding partition |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | BANGE |
| Certification | ISO9001 |
| Model Number | 85 mm folding partition walls |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
