Product Description

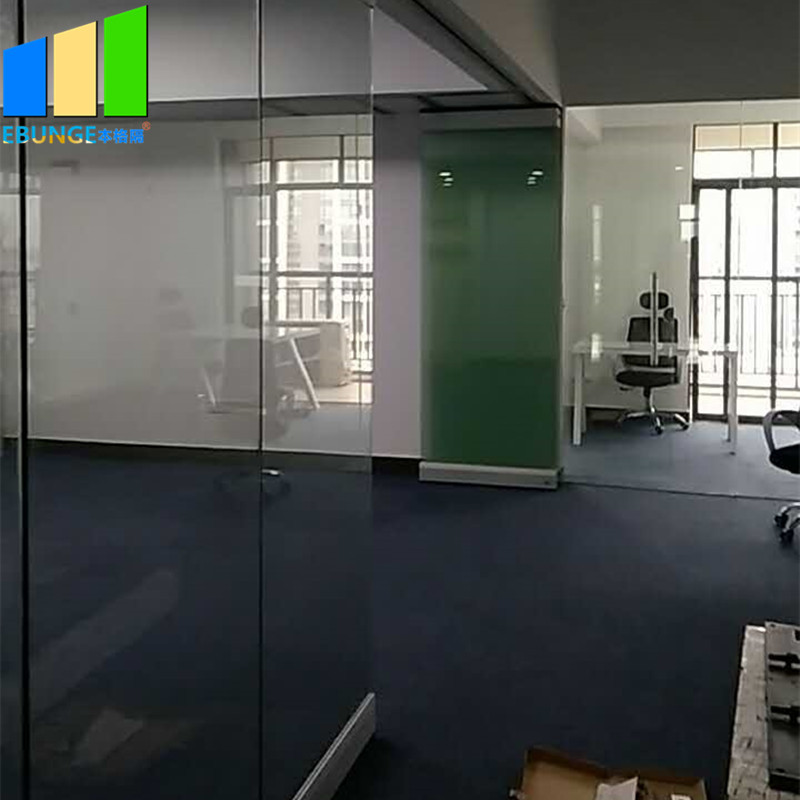

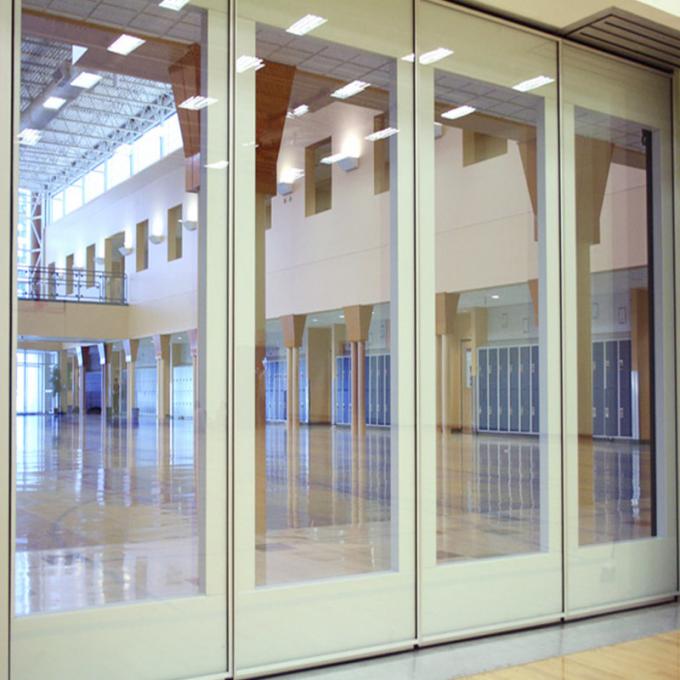

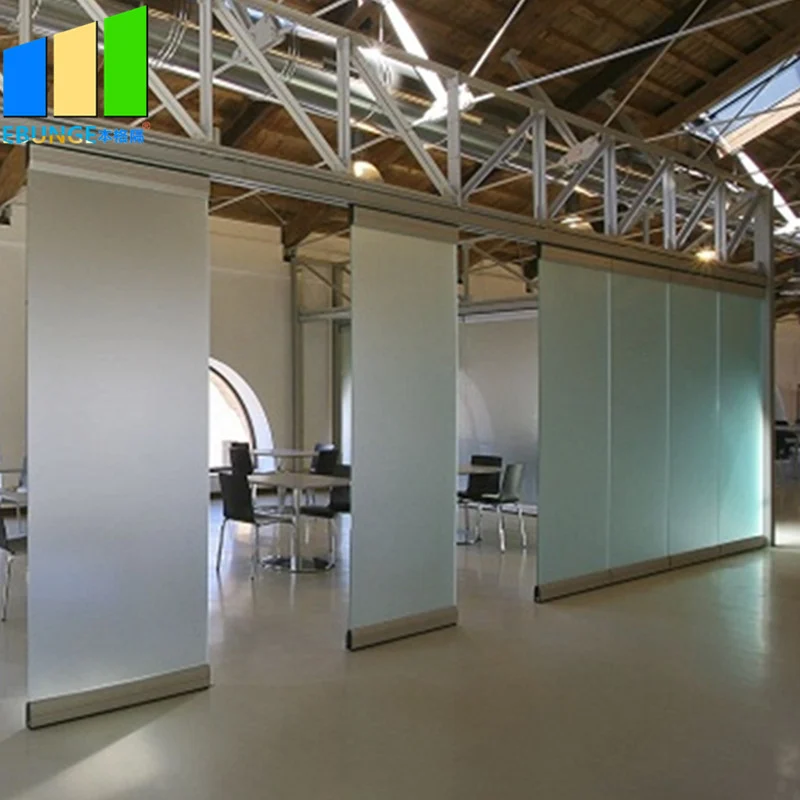

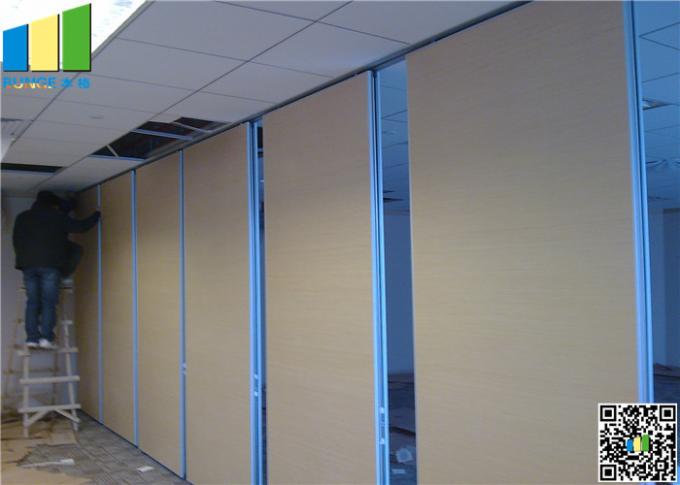

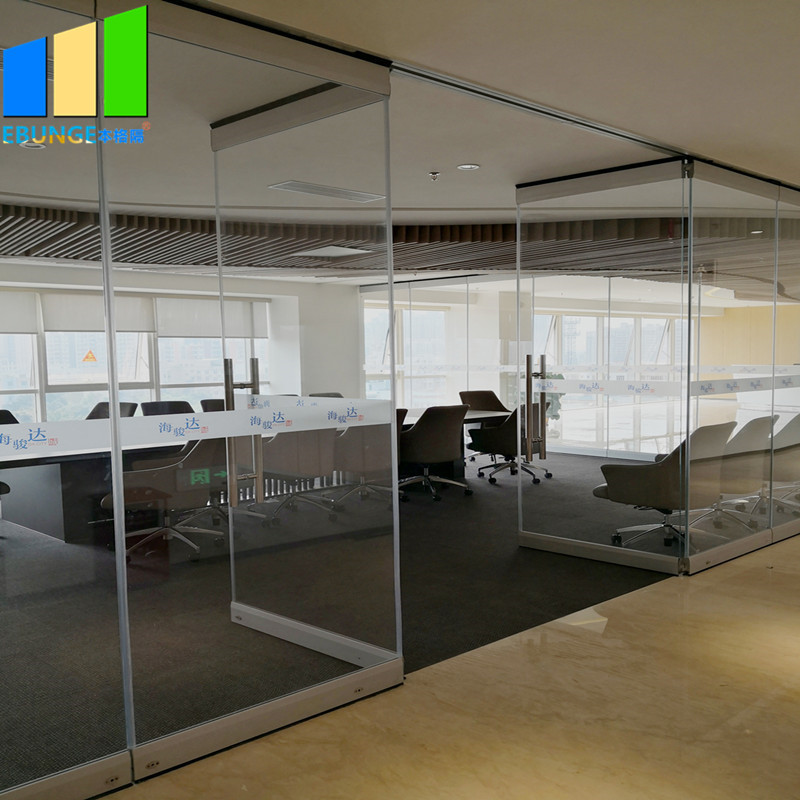

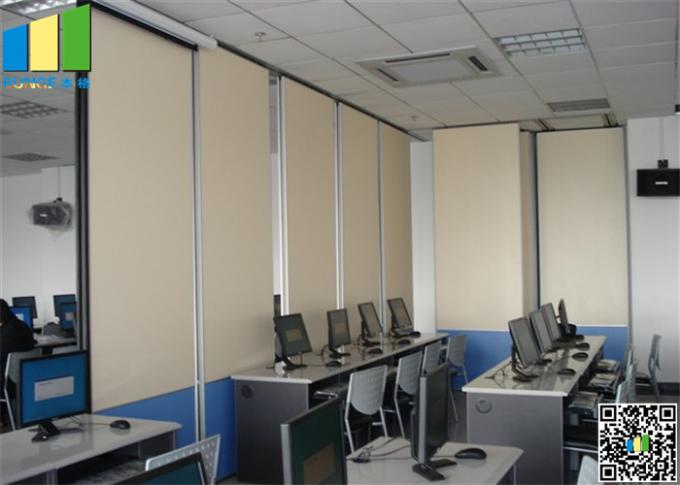

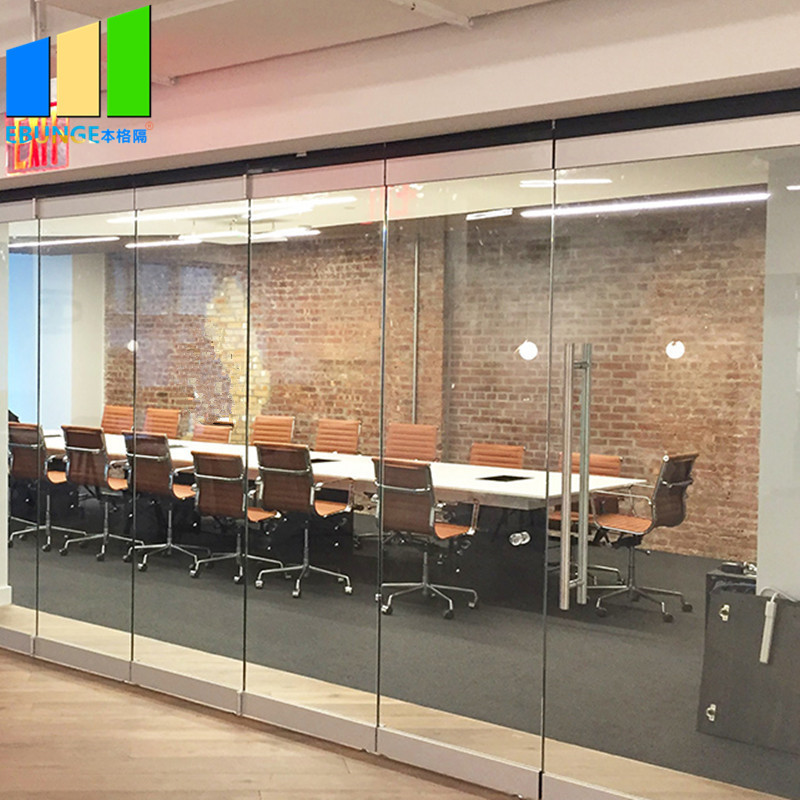

Unframed glass doors sliding partition walls frameless aluminum glass partition folding door
Specification:
The basic production material of sliding wall partition is mdf board panel and soundproof rock wool, so it has a good sound-absorbing effect, which is what most customers pursue, because everyone likes to live and work in a quiet environment, and use the activity partition as a segmentation.
The sliding partition wall can satisfy this problem. Different employees of the company need to work in different environments and the activities can solve this problem. It can effectively divide and make the space look more complete, which is the first choice for the company’s decoration.
Technical parameters:
| Series | BG65 Glazing Glass Partition | BG85 Aluminum Frame Glass Partition | BG85 Sound proof Glass Partition |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 36mm | 85mm | 85mm |
| Panel height | Up to 3000mm | Up to 6000mm | Up to 6000mm |
| Max height | 3000mm | 6000mm | 6000mm |
| Panel width | 800-1100mm | 800-1100mm | 800-1100mm |
| Frame construction | Top and bottom aluminum | Aluminum frame | Aluminum frame |
| Glass thickness | 10mm or 12mm single glass | 10mm or 12mm single glass | double 10mm glass |
| Fire safety | Optional Class O | Optional Class O | Optional Class O |
| Vertical profiles | n/a | n/a | Aluminum anodised with sealing profiles |
| Retractable seals | n/a | n/a | Aluminum black with double rubber seals |
| Operation of seals | n/a | n/a | n/a |
| Pass doors | Fixed full height door | Fixed full height door | Fixed full height door |
| Locking | Optional lock to panel | Optional lock to panel | Optional lock to panel |
| Sound insulation | n/a | n/a | n/a |
| Weight | Approx 30 kg/sq M | Approx 32 kg/sq M | Approx 50 kg/sq M |
Advantage:
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Allow Customization.
Improved sound insulation with a reduced wall thickness.
Application:
All of our operable wall systems are individually tailored to your exact requirements and are therefore the perfect solution when high acoustic performance and a feeling of quality are the main priorities.
Whilst widely used within hotel banqueting suites and conference centers with large muti-functional spaces they are also ideally suited for use within offices to give added flexibility to meeting, training and conference rooms.
The individual panels can be easily operated by handle because they are ceiling hung there is no potential obstruction from floor track to worry about giving maximum flexibility on how the space is used.
Our service:
We offer quality, reliable solutions with partitions and moveable walls (solid or glass) and accordion doors, security grilles, and wood roll-up doors and shutters. We provide pricing, technical assistance, installation and design options for General Contractors, Architects, and Interior Designers.
Specifications
| Product Name | Frameless Glass Sliding Walls |
|---|---|
| Material | Aluminum And Tempered Glass |
| Height | Less Then 3 M |
| Width | 500-1200 Mm |
| Thickness | 36mm Aluminum Frame |
| Usage | Room Dividing |
| Glass Thick | 10mm/12mm |
| Highlight | movable walls on wheels , movable partitions systems |
Product Details
| Place of Origin | Guangzhou,China |
|---|---|
| Brand Name | EBUNGE |
| Model Number | Series 36 mm glass sliding partition walls |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
