Name: Top Hunge System Movable Room Partition For Hotel Banquet Hall / Acoustic Operable Walls
Brand: EBUNGE

Product Description

Hotel Banquet Hall Sound Proof Movable Partitions Acoustic Operable Walls

Acoustic Operable Walls Details

Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or Double Roller
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm – 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.

Bunge Acoustic Operable Walls Systems-Technical Information

Series	BG65	BG80	BG100
Panel suspension	Top hung only
Track system	Single or twin point
Panel thickness	65mm	80mm	100mm
Panel height	Up to 3500mm	Up to 5200mm	Up to 17000mm
Max height	3500mm	5200mm	17000mm
Panel width	600-1230mm	600-1230mm	600-1230mm
Frame construction	Aluminum frame
Face material	9mm	9mm / 12mm	12mm
Fire retardant	as request
Retractable seals	have
Adjustable panels	Manual, with supplied operating handle
Pass doors	Single door or double door as request
Sound insulation	32dB	40dB	50dB
Weight	Approx 22-35kg/sqm	Approx 25-40kg/sqm	Approx30-48kg/sqm
Finish Material	Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Acoustic Operable Walls Features

Acoustic operable walls are specified where functional space delineation is an integral element within the partition project.

Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space utilization.

Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.

Partition door mechanism structure

To create a better sound insulation acoustic operable walls, we put high density fiberglass inside the partition frame, Sourcing from imported world famous fiberglass brand ” Owens Corning” which is the best sound insulation cotton manufacturer.

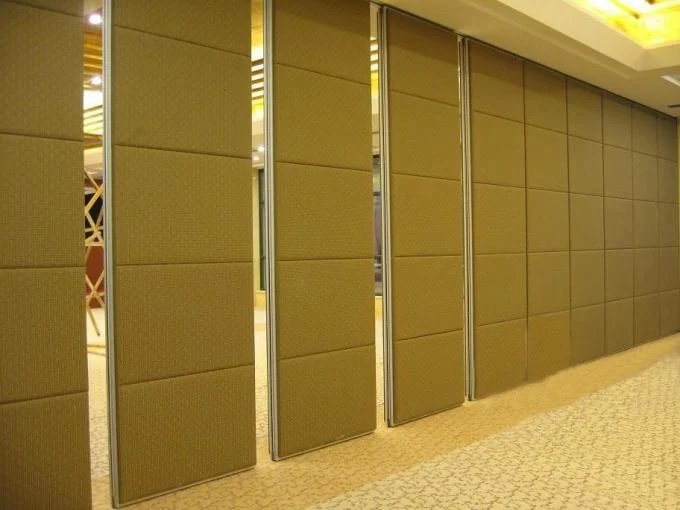

Top Hunge System Movable Room Partition For Hotel Banquet Hall / Acoustic Operable Walls 0

Specifications

Feature	Fireproof And Soundproof
Size	Can Be Customized
Thickness	65 Mm(2 9/16 Inch)
Color	Can Be Customized
Flame	Aluminum
Materials	Aluminum Frame+MDF
Application	Hotel,restaurant
Rail Load	250-1250 Kg/m
Product Name	Acoustic Operable Walls
Highlight	acoustic operable partitions , acoustic operable wall
