Product Description

Top Hanging Sliding Partition Wall Movable Partition Panel Folding Partition Door





Description:



Moveable partitions are a series of individually operated panels along a track system designed for maximum space planning flexibility. They can be arranged quickly, easily and efficiently.





Wherever elegant transitions are required from one room to another and where the emphasis is on transparency in the open-plan design of living and working environments, fully glazed partitions and dividers provide an ideal incentive for architectural excellence.
Space and Sound Management with Moveable Wall Systems





EBUNGE BG-65# Series



Base board
Hoisting weight (kgs/㎡)
STC (db)
Structure material
Top/Bottom Telescopic mechanism(mm)
Width(mm) Min/Max
Height(mm) Min/Max
Thickness (mm)
Fire Safety
Plywood MDF
22-35kgs/㎡
32db
Aluminium
22.5mm
500 / 1230mm
2000 / 4000mm
65mm
optional class o
Melamine Surface
Fabric/Leather Surface
32db / 35db


                                                                EBUNGE BG-85# SERIES

Base board
Hoisting weight (kgs/㎡)
STC (db)
Structure material
Top/Bottom Telescopic mechanism(mm)
Width(mm) Min/Max
Height(mm) Min/Max
Thickness (mm)
Fire Safety
Plywood MDF
28-40kgs/㎡
38db
Aluminium
22.5mm
500 / 1230mm
2000 / 6000mm
85mm
optional class o
Melamine Surface
Fabric/Leather Surface
38db / 42db


                                                                EBUNGE BG-100# SERIES

Base board
Hoisting weight (kgs/㎡)
STC (db)
Structure material
Top/Bottom Telescopic mechanism(mm)
Width(mm) Min/Max
Height(mm) Min/Max
Thickness (mm)
Fire Safety
Plywood MDF
35-45kgs/㎡
45db
Aluminum
30mm
500 / 1230mm
6000 / 15000mm
100mm
optional class o
Melamine Surface
Fabric/Leather Surface
45db / 52db

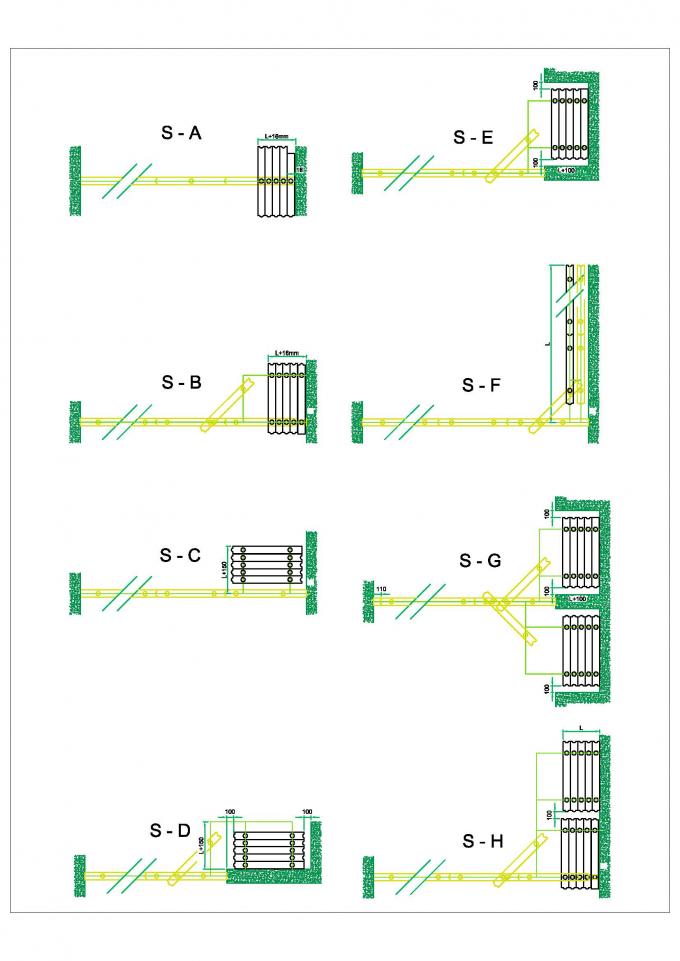

Panel Stacking of Top Hanging Sliding Partition Wall Movable Partition Panel Folding Partition Door

Top Hanging Sliding Partition Wall Movable Partition Walls Folding Partition Door 0



Specification :



1. No floor track, it relies solely on the ceiling mounted track.

2. Stability and Safety – The solid design and build assures you of reliable stability.

3. Noise Suppression – The sound absorbing wall cuts sound levels by up to 60dB.

4. Nsulation Value – The materials used also work as a thermal barrier, saving energy costs by lowering air conditioning or heating needs.

5. Fire Safe – Made of flame retardant materials, also serves as a fire protection boundary.

6. Attractive – The design looks great as is, and can easily be redecorated to suit your custom needs.

7. Ease of Use – Moving and stowing the Movable Partition can easily be done by a single person.

8. Compact – Stows neatly in a compact wall cabinet, and remains cleanly out of sight when not used.

9. Flexible Uses – Useful in many applications – Conference Rooms, Exhibition Rooms, Restaurants, Retail Shops, or Factories.

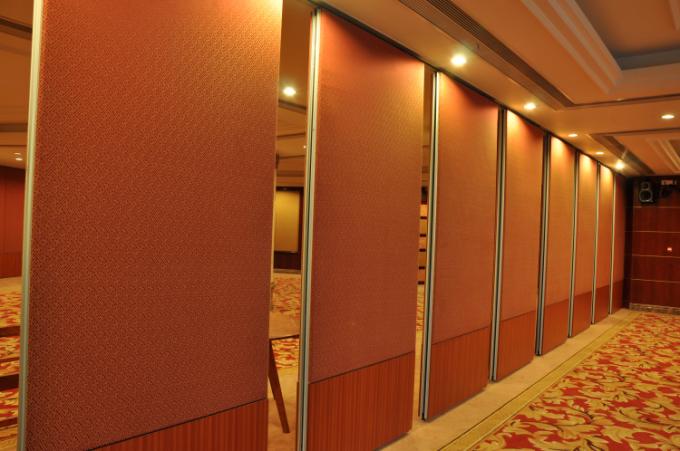

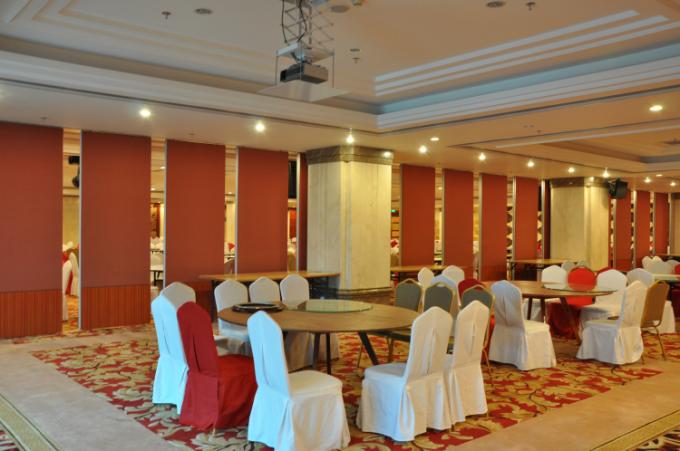

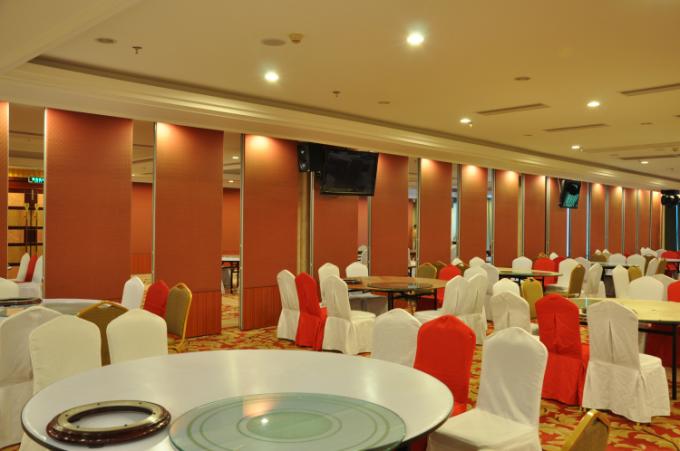

Top Hanging Sliding Partition Wall Movable Partition Walls Folding Partition Door 1Top Hanging Sliding Partition Wall Movable Partition Walls Folding Partition Door 2Top Hanging Sliding Partition Wall Movable Partition Walls Folding Partition Door 3



Specifications

Product NameTop Hanging Sliding Partition Wall Movable Partition Panel Folding Partition Door
MaterialMDF + Aluminum
ColorMulte Color
Width500 / 1230mm
Height2000 / 13000mm
STC Coeffcient32 / 53db
Key WordsTop Hanging Sliding Partition Wall Movable Partition Panel Folding Partition Door
Highlightmovable partitions systems , acoustic movable walls

Product Details

Place of OriginChina
Brand NameEBUNGE
CertificationSGS,CE etc.
Model NumberBG85 # movable partition wall
Packaging DetailsOperable Resturant Partition Walls Room Dividers Precise Welding : Carton package, MDF batten on four section sides ,foam board on both front face.
