Thickness 65mm Sliding System Removable Wall Partition / Exhibition Acoustic Room Divider

High quality Thickness 65mm Sliding System Removable Wall Partition / Exhibition Acoustic Room Divider from China, China's leading product market conference room dividers product, with strict quality control sound proof room divider factories, producing high quality sound proof room divider Products.

Request A Quote

Send Your Project Details

Product Description

Sliding System Removable Wall Partitions Exhibition Acoustic Room Divider


Description:

The flexibility of acoustic room dividers can be divided or combined according to the different needs of different occasions. The use of an active partition can create a good decorative effect in the integration of the overall style of the room, and it also acts as a partition of the partition itself.

The color of the partition is rich and colorful, and the colors are appropriately matched according to the owner’s preference or the style of the room, and the permeability is enough to ensure privacy. At the same time, it is also possible to use some partitions with sound insulation as required.
Feature:

1.Space management ~ Movable acoustic room dividers offer an effective space solution for many environments including offices, educational establishments, sporting facilities, dining and entertainment facilities, religious centers, or retail areas
2.Smart use of space – Movable walls offer a flexible solution for making the most of an interior space. Room sizes can be changed in a matter of moments to capitalism on the revenue potential of commercial space or simply create the most efficient use of floor space
3.Acoustics ~ the movable wall is the highest specification range of fully operable, individual-panel systems. Acoustic insulation noise reduction is achieved with a combination of acoustic infills and operable top and bottom seals.

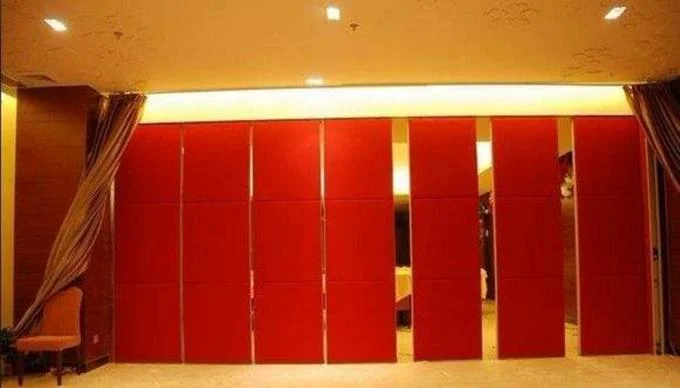

Thickness 65mm Sliding System Removable Wall Partition / Exhibition Acoustic Room Divider 0

Advantage:

Long-term use: with more economy and higher decorative, beautiful and safe, will not scratch the skin.
Cost savings: installation does not affect the construction of smallpox and the ground.
Various forms: optional with a variety of occasions partition wall, can be customized according to customer requirements.
Easy combination: in the re-assembly can make full use of building materials.
Material environmental protection: selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.

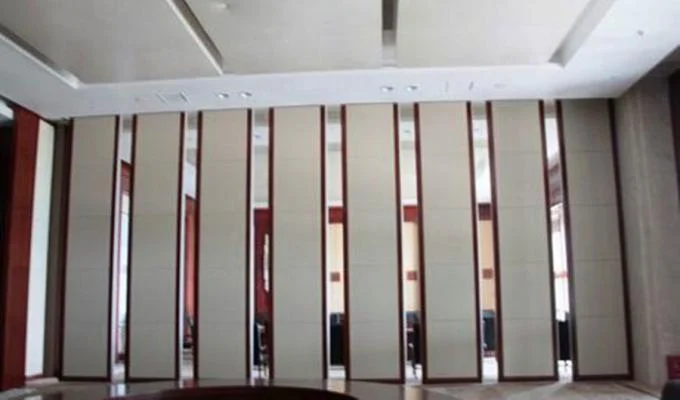

Thickness 65mm Sliding System Removable Wall Partition / Exhibition Acoustic Room Divider 1

Technical information:


TYPE BG65 BG85 BG100
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M


Operation:

A large amount of repairs are as a result of incorrect operation by users. Acoustic room dividers are deceptively heavy due to the ease of operation but are capable of serious crush injuries. Your work place risk assessments should have taken this into account and state that only trained and authorized personnel may operate the wall.

We will offer training on the safe and correct operation of your system to your staff.
Acoustic room dividers and sliding folding partitions do have a life cycle and there is a point where maintenance and repairs become either impossible or uneconomical.

Specifications

Metal TypeAluminium Frame
Width500-1200 Mm
SurfaceMelamine,fabric,leather
FeatureSliding And Folding
ApplicationExhibition Hall,gallery,office
Thickness85 Mm
HeightLess Than 6 M
ServiceOEM Service
Highlightconference room dividers , sound proof room divider

Product Details

Place of OriginChina,Guangzhou
Brand NameBUNGE
CertificationISO9001
Model NumberSeries 85 mm acoustic room divider
Packaging DetailsCarton package, MDF batten on four section sides ,foam board on both front face.
