Temporary Room Dividers Movable Partition Walls Decoration Operated Wall Partition

Bunge movable partition walls is made of high quality anodized aluminum frame with environmentally composite materials. The panels move on a ceiling track with no requirement of floor guides or rails,
and they have a standard thickness of 65mm , 80mm and 100mm , and a width up to 1230mm . Maximum height can reach 13meter tall.

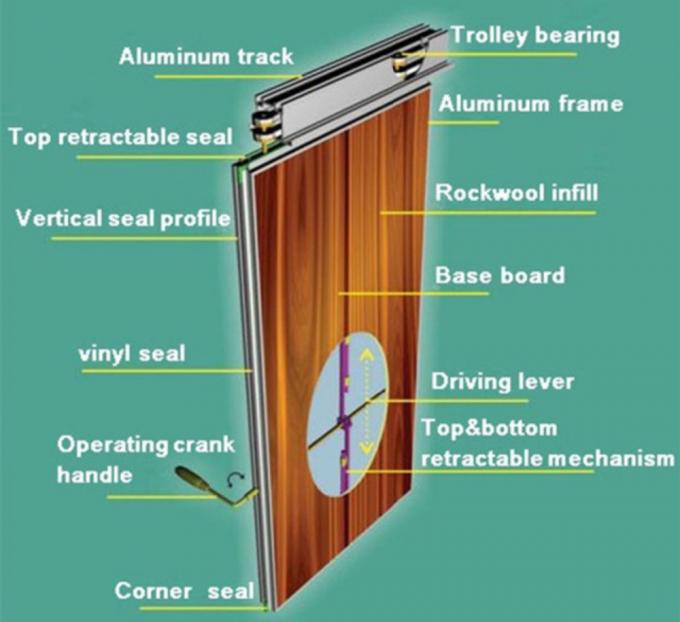

The accordion wall panel consists of a series of concave / convex profile interlocking flat panels and the fast set retractable top and bottom seals , it provides excellent acoustic insulation property of from STC-32 to 53 in laboratory setting . Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant , schools , office , religion , hospitals , shopping arcades and many other indoor applications product.

Bunge has adopted the advance partition technology of USA , Germany and Denmark . We have professional staff with more than 10 years of experience in design , production and installation.

Specifications of partitions:



Construction details:



Operation of partition:
Partitions shall be top supported , manually operated panels stacked in an area nominated in the plans. When closed , the operable wall shall provide a complete sound retardant barrier . No floor track shall be used.

Track of partition :

The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .

We Offer:
◆ A full professional design service
◆ Survey and installation guide
◆ Using top quality materials and components
◆ A fully experienced work team
◆ Maintenance contracts to ensure your valuable asset remains in full work order.
