Product Description

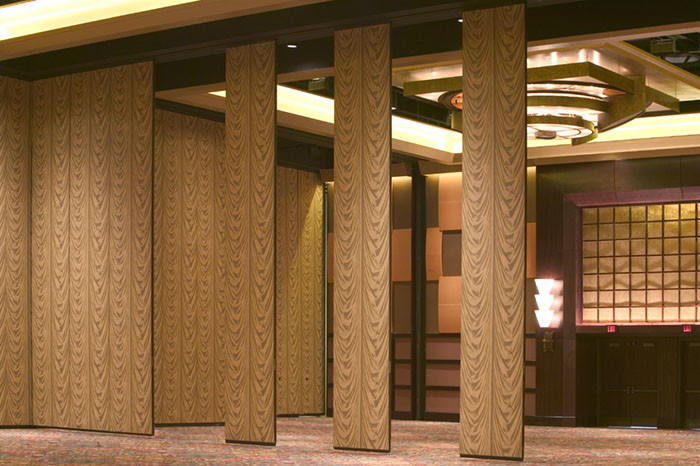

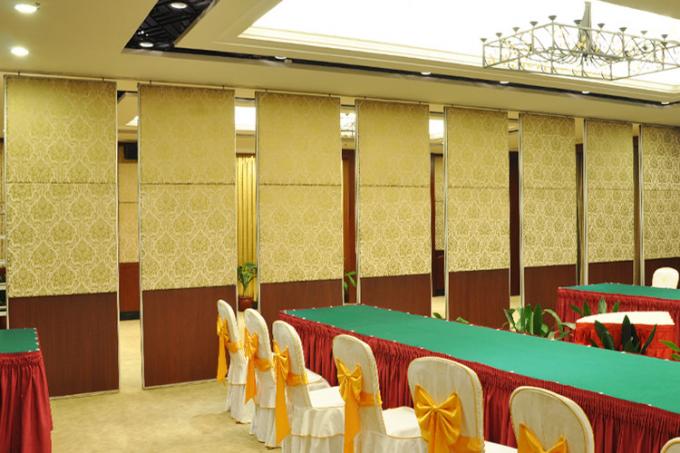

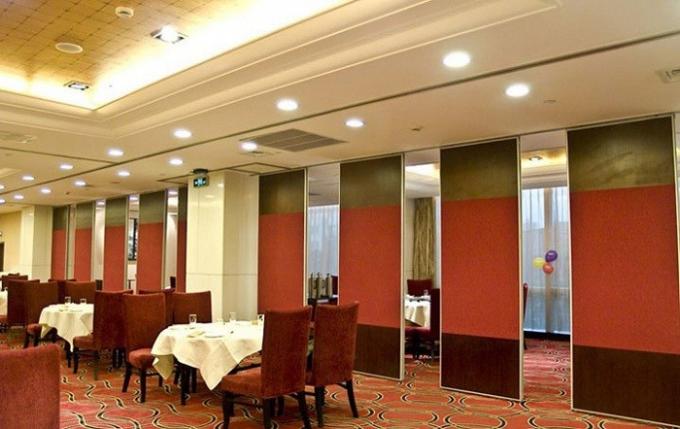

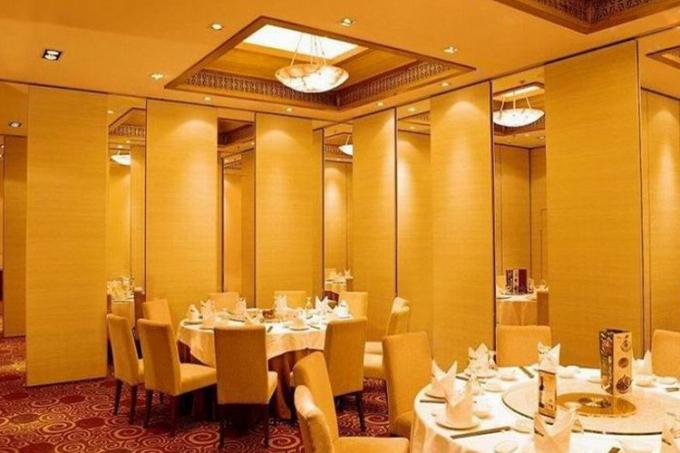

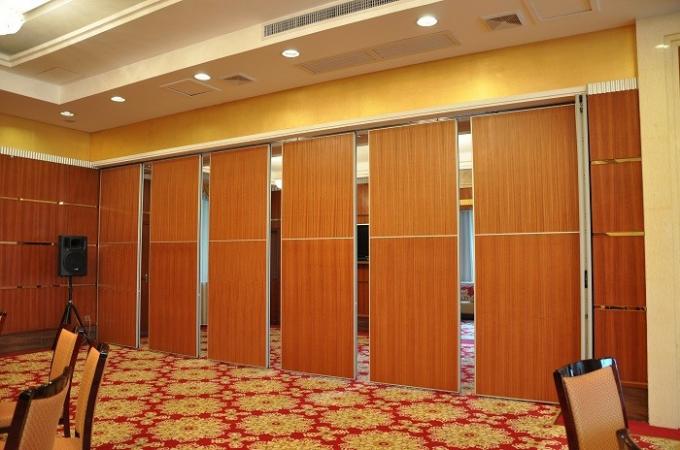

Decorative restaurant divider temporary acoustic soundproof movable partition walls
Features:
Top hung system without the need for a floor track
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
The system offers various levels of sound reduction
Extensive range of surface finishes available
Retractable top and bottom seals ensure effortless movement of panels
Sealed for life roller assemblies provide smooth and silent movement
EBUNGE Operable Wall Systems-Technical Information
| TYPE | BG65 | BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 – 1200mm 1′ 5/8″ — 4′ |
500 – 1200mm 1′ 5/8″ — 4′ |
500 – 1200mm 1′ 5/8″ — 4′ |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
2,FIXING

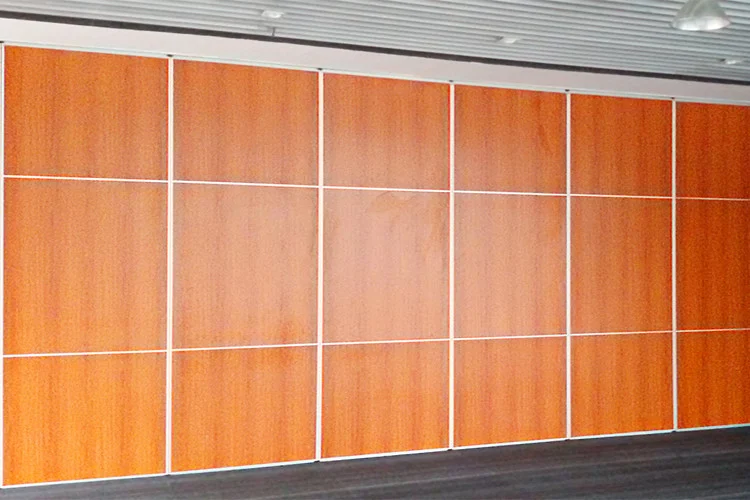

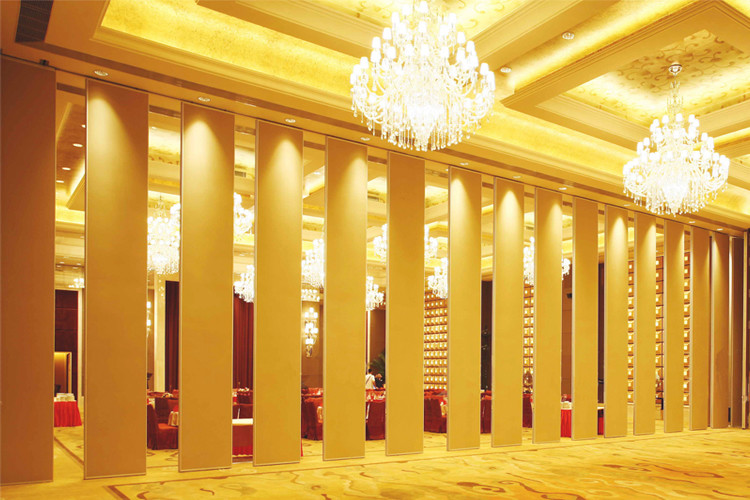

Movable Exhibition partition wall is also called sliding partition wall or movable sound insulation wall, which is widely used to divide big room into small rooms. Each piece of partition can turn 360 degree which makes it flexible. Different core materials decide its sound insulation performance and various finishes make it adapt to many projects such as hotel, exhibition hall, restaurant, multi-functional room, etc.
Common Applications:
1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
Specifications
| Application | Hotel,Banquet Hall |
|---|---|
| Thickness | 65 Mm(2 9/16 Inch) |
| Style | Opening |
| Service | OEM ODM |
| Product Name | Movable Partition Walls |
| Color | Color Selective (Customized) |
| Finishing | Melamine,fabric,leather |
| Position | Interior |
| Panel Width | 500 Mm--1220 Mm |
| Material | MDF+Aluminum |
| Highlight | movable walls on wheels , movable partitions systems |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO9001 |
| Model Number | Series 65 mm movable partition walls |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
