Product Description
Soundproof Operable Fabric Partiton Movable Walls Room Divider Walls
Description:
Our movable and operable partition system accessories are custom for each client and project , and they are also made of superior material. Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test, we have passed the Eco-protection test and Fireproof test , to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system .
|
BUNGE BG-65# Series
|
||||||||
|
Base board
|
Hoisting weight (kgs/ã¡)
|
STC (db)
|
Structure material
|
Top/Bottom Telescopic mechanism(mm)
|
Width(mm) Min/Max
|
Height(mm) Min/Max
|
Thickness (mm)
|
Fire Safety
|
|
Plywood MDF
|
22-35kgs/ã¡
|
32db
|
Aluminium
|
22.5mm
|
500 / 1230mm
|
2000 / 4000mm
|
65mm
|
optional class o
|
|
Melamine Surface
|
||||||||
|
Fabric/Leather Surface
|
32db / 35db
|
|||||||
|
BUNGE BG-85# SERIES |
||||||||
|
Base board
|
Hoisting weight (kgs/ã¡)
|
STC (db)
|
Structure material
|
Top/Bottom Telescopic mechanism(mm)
|
Width(mm) Min/Max
|
Height(mm) Min/Max
|
Thickness (mm)
|
Fire Safety
|
|
Plywood MDF
|
28-40kgs/ã¡
|
38db
|
Aluminium
|
22.5mm
|
500 / 1230mm
|
2000 / 6000mm
|
85mm
|
optional class o
|
|
Melamine Surface
|
||||||||
|
Fabric/Leather Surface
|
38db / 42db
|
|||||||
|
BUNGE BG-100# SERIES |
||||||||
|
Base board
|
Hoisting weight (kgs/ã¡)
|
STC (db)
|
Structure material
|
Top/Bottom Telescopic mechanism(mm)
|
Width(mm) Min/Max
|
Height(mm) Min/Max
|
Thickness (mm)
|
Fire Safety
|
|
Plywood MDF
|
35-45kgs/ã¡
|
45db
|
Aluminum
|
30mm
|
500 / 1230mm
|
6000 / 15000mm
|
100mm
|
optional class o
|
|
Melamine Surface
|
||||||||
|
Fabric/Leather Surface
|
45db / 52db
|
|||||||

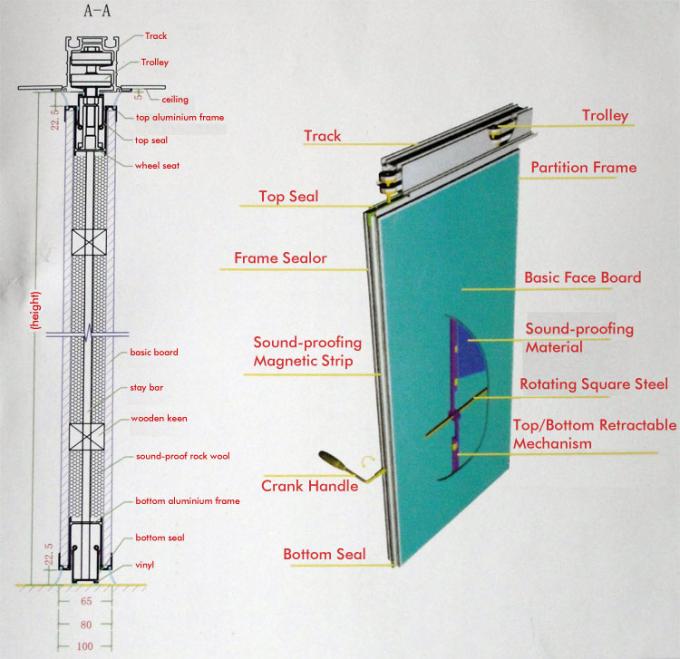

Details of Soundproof Operable Fabric Partiton Movable Walls Room Divider Sharjah
Specification :
Top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
The system offers various levels of sound reduction
Extensive range of surface finishes availableTop hung system without the need for a floor track
Specifications
| Product Name | Soundproof Operable Fabric Partiton Movable Walls Room Divider Sharjah |
|---|---|
| Material | MDF + Aluminum |
| Color | Multe Color |
| Width | 500 / 1230mm |
| Height | 2000 / 13000mm |
| STC Coeffcient | 32 / 53db |
| Key Words | Soundproof Operable Fabric Partiton Movable Walls Room Divider Sharjah |
| Highlight | movable walls on wheels , acoustic movable walls |
Product Details
| Place of Origin | China |
|---|---|
| Brand Name | Bunge |
| Certification | SGS,CE etc. |
| Model Number | BG85 # movable partition wall |
| Packaging Details | Soundproof Operable Fabric Partiton Movable Walls Room Divider Sharjah : Carton package, MDF batten on four section sides ,foam board on both front face. |
