Product Description

Soundproof Movable Partition Wall Interior Sliding Door Room Dividers



Product description:

EBUNGE movable partition walls have unparalleled quality, design flexibility, acoustic performance and lasting durability. Proudly manufactured in the Guangzhou , EBUNGE movable partition walls with aluminum frame have the most widespread application. The partition is constituted by a set of flat panel whose width ranges from 700mm to 1200mm. The panel is provided with various specifications and characteristics to satisfy most requirements of design and budget . Its thickness can be 65mm,85mm or 100mm. Additionally, each model comes with different grades of sound insulation as well as single or paired hinges.EBUNGE movable partition walls can be designed with the industry’s most comprehensive range of dimensions, performance options, and decorative finishes. Increasingly, efficient space utilisation becoming a must for offices, hotels, exhibition centres , studios and so on.

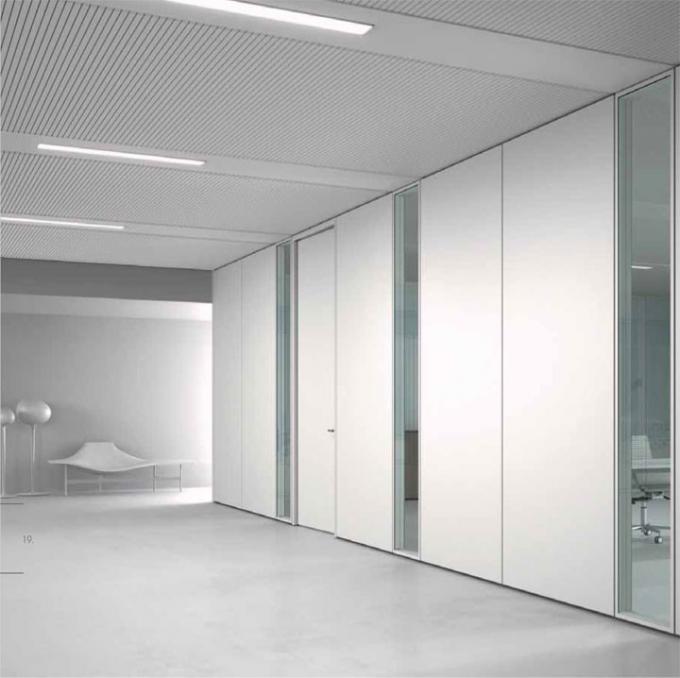

Soundproof Movable Partition Walls Interior Sliding Door Room Dividers 0



EBUNGE Technical Description Feature
1. Top hung with no floor track required
2. High acoustic ratings up to 56dB available
3. Retractable acoustic seals at top and bottom of each panel operated either by a quick release handle
4. Single or twin point suspension for central or offset stacking options
5. Variable track arrangements
6. Junction panels enable corner, three or four way abutments
7. Panel finishes include Melamine Laminate, Veneer, Vinyl, Magnetic Dry Wipe Whiteboard or Painted, etc
8. Optional inset pass doors, fully glazed panels and vision panels
9. Closure panel fitted with face operated telescopic “nose”

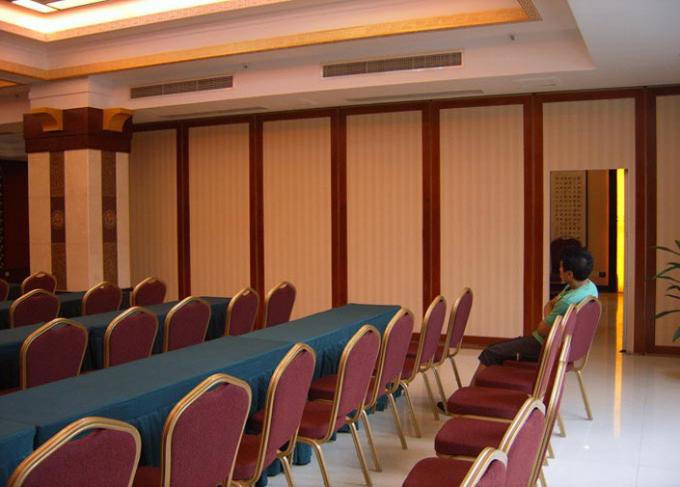

Soundproof Movable Partition Walls Interior Sliding Door Room Dividers 1



Technical Details

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65mm 85mm 100mm
Max height 4000mm 6000mm 8000mm
Panel width 500-1200 mm 500-1200 mm 500-1200 mm
Face material 9mm 9mm 12 mm
Passdoors Single door or Double door
Sound insulation 28-38dB Rw 28-42dB Rw 32-50dB Rw
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)



Application

Hotels,Stadium, Auditorium, Multifunction room, Meeting room, Studio ,Religious Facilitiesand ,Civic or Exposition Halls ,School,

Restaurants,Gymnasiums any other places where seek for high acoustic requirements.

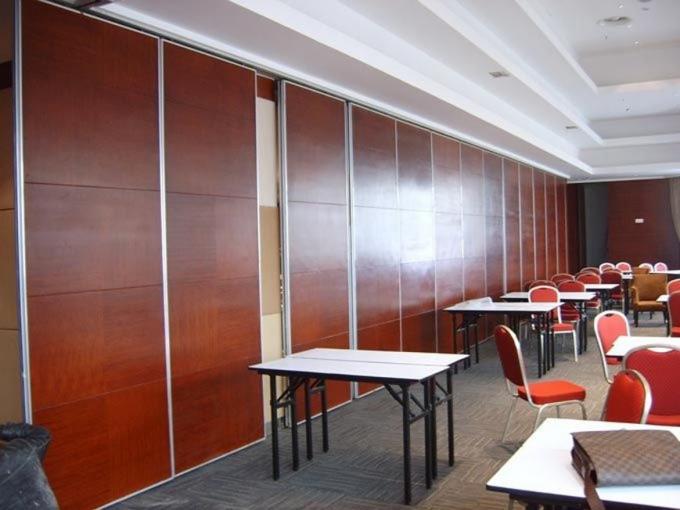

Soundproof Movable Partition Walls Interior Sliding Door Room Dividers 2

Specifications

Product NameMovable Partition Walls
MaterialWooden
ServiceOEM ODM
FinishMelamine
AdvantageSliding Movable
Highlightmovable partitions systems , acoustic movable walls

Product Details

Place of OriginChina
Brand NameEBUNGE
Model Number65 mm Movable Partition
Packaging DetailsCarton package , Paper package
