Product Description

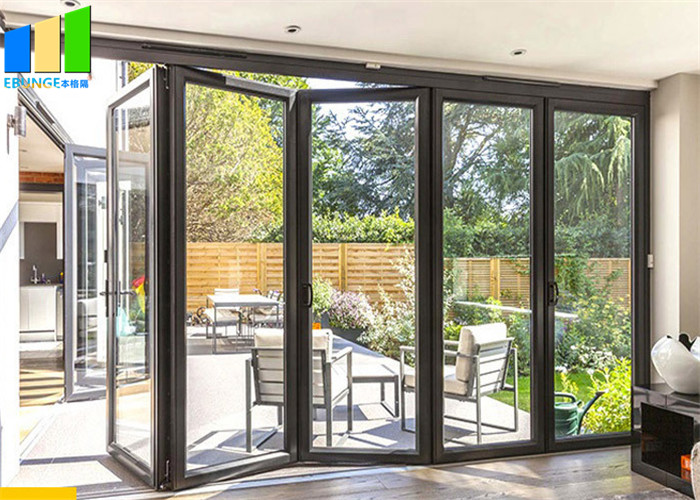

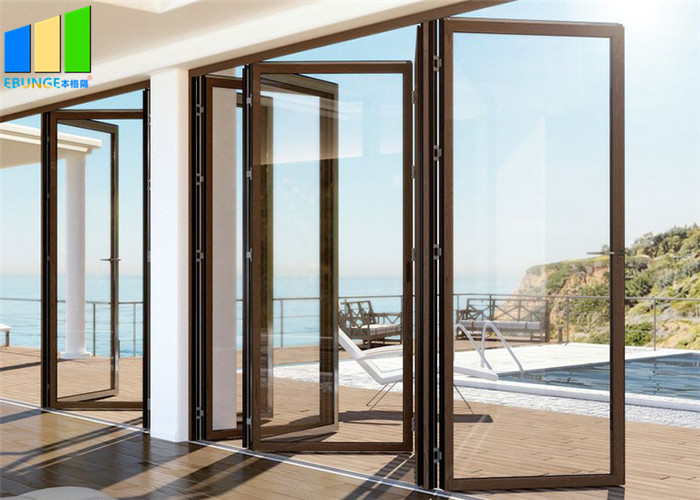

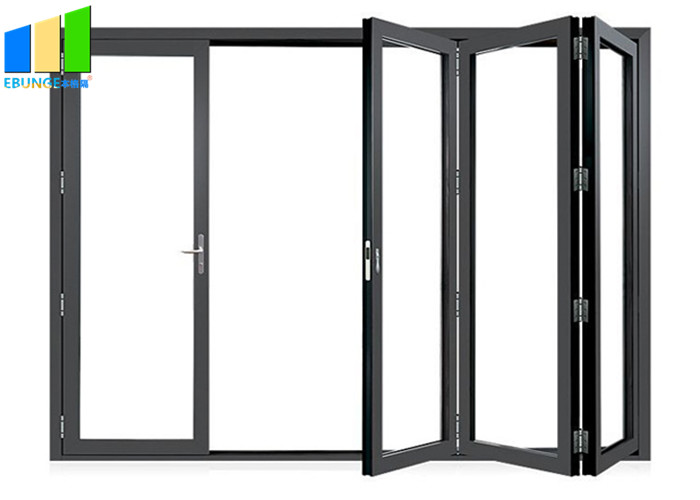

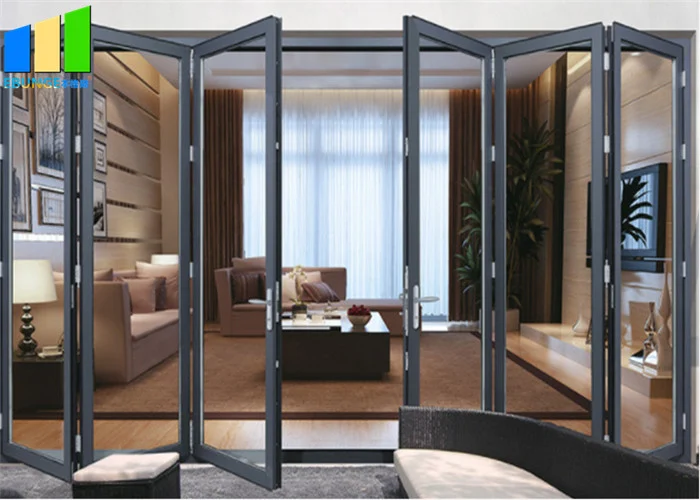

Soundproof Bifold Doors Tempered Glass Aluminum Folding Doors
Aluminum Folding Doors Detail
1. The standard glass trough not only improves the performance of the entire window, but also improves the flexible opening andanti-theft functions.
2. Reasonable drainage design can effectively prevent water seepage.
3. 45° angle reinforcement, stainless steel material makes it stronger.
4. Double track, frame and glass panel are designed with unique drainage holes.
5. The hollow glass filled with argon can reduce the U value and increase the heat insulation effect to achieve the purpose ofenergy saving.
6.Insulation performance: K = 3.0W /(m2•K);
Techincal Information
|
Profiles
|
1.Thermal break aluminium profiles
2.Aluminium alloy profiles 3.1.4~2.0mm aluminum profile thickness |
|||
|
Glass
|
1.Double tempered glazing:5+9A+5,5+12A+5…
2.Single tempered glazing:6,8,10,12… 3.Laminated glazing:6.38,10.76,10.38… 4.Low-e glazing,frosted/obscure glazing,grey/blue/green tinted glazing… |
|||
|
Hardware
|
1.Germany brand
2.Japanese brand 3.Chinese brand |
|||
|
Mesh
|
1.Stainless steel security mesh
2.Security mesh 3.Nylon screen 4.Mosquito screen |
|||
|
Finish
|
1.Powder coating
2.Anodized 3.Electrophoresis 4.Fluorine carbon painting |
|||
|
Types
|
Awning window, Sliding window, Vertical slide window
Casement window, Tilt and turn window, Fixed window, Shutter window Sliding door, Hinge door, Bifold door Lift and sliding door, Pivot door, Escape door Sensor door, Glass louver, Aluminum louver |
|||
Specifications
| Product Name | Aluminum Folding Door |
|---|---|
| Material | Glass And Aluminum Alloy |
| Glass | Tempered Glass Door |
| Color | Black |
| Size | Customized |
| Surface Treatment | Powder Coating/Anodized/Electrophoresis |
| Highlight | Electrophoresis Tempered Glass Aluminum Folding Doors , Soundproof Bifold Aluminum Folding Doors |
Product Details
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO 9001 |
| Model Number | Model 50 Aluminum Folding Door |
| Packaging Details | Inner paper carton packing, exterior with wood crate box |
