Product Description
Sound Absorption Banquet Hall Operable Walls Acoustic Mobile Wall Partitions
Acoustic partition walls finishes
There are wide of range face finishes are available :melamine faced MDF or plywood, fabric, carpet, fabric, artificial, leather,wood veneer, high pressure laminate,acoustic panel,white board ect., panels can also be supplied unfinished for field decoration,standard frame color is clear anodized aluminum,custom powder coating colors are available.
Common Applications
1.Studios, recording rooms, listening rooms, rehearsal rooms and more professionally interspace timbre projects.
2.Theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.Meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4.Air-port, railways, bus-stops, workshops and more noise reduction projects.

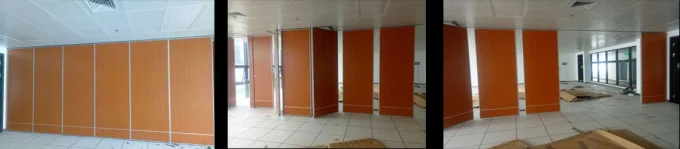

Finished project

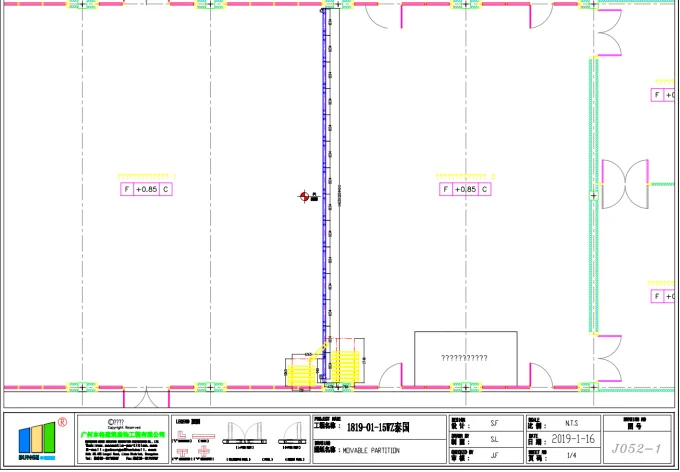

A nice project for meeting room in Bangkok,Thailand.
The client chose the plywood finish, and he will decorate the surface by wallpaper at project site.Size:14.65*5.5 meters, totally 80.6 square meters.
In addition, our client also bought polyester acoustic panels for the ceiling from us, 200 m², grey color.
Both the movable partition walls and acoustic wall panels were delivered to Bankok Port together on April 6th.
Acoustic partition walls technical information
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG80-40 | 30 | 60 | 40db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | 60# 80# 100# |
| BG80-45 | 38 | 60 | 45db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
| BG80-48 | 47 | 60 | 48db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
Specifications
| Product Name | Acoustic Partition Walls |
|---|---|
| Carrier Overload | 225--1300 Kg |
| Partition Thickness | 85 Mm |
| Base Borad | 9 Mm Thickness MDF Board |
| Tracks Material | Anodized Aluminum 6063-T6 |
| Feature | Sound Proofing |
| Highlight | acoustic operable partitions , acoustic operable wall |
Product Details
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO9001 |
| Model Number | 85 mm acoustic partition walls |
| Packaging Details | Paper carton, outside with wooden boxes |
