Product Description

Sliding Screen Removable Movable Panel Soundproof Door Divider Partition Wall Hotel Hall Office



Soundproof partitions wall

The main advantage of these sound proof wall dividers is the ability to use ceiling rails to support the floor. This is the most common specification because it avoids the need for floor track structures. This is very important for existing buildings where you don’t want floor track to get in the way.



When not in use, the plates are hinged together or stacked at one or both ends. One end panel is usually an access door, which is very useful. The standard soundproof partition can provide up to Rw 45 dB sound reduction.



They are made up of single panels suspended from head rail, and the panels may be stacked at the ends of the partitions or remotely in the appropriate stacking area. Access doors are available. The sound reduction can be enhanced by moving the retractable top and bottom seals.

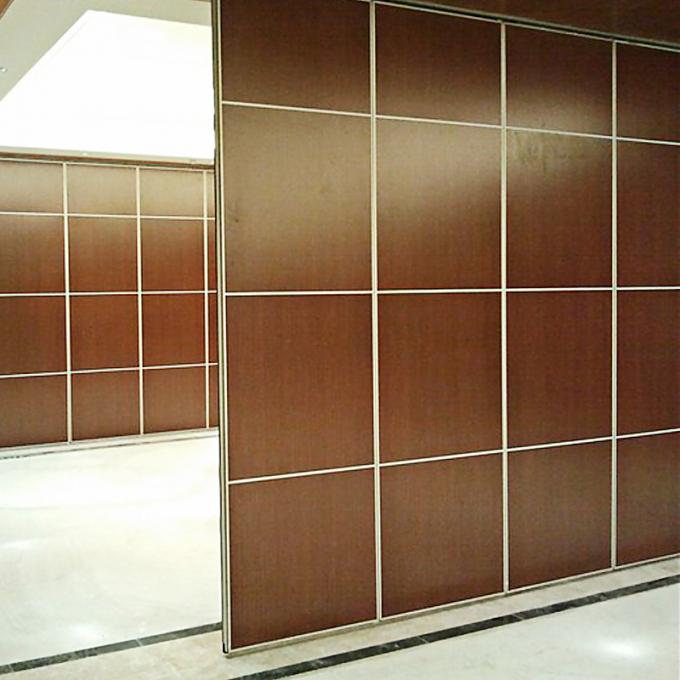

Sliding Screen Removable Movable Panel Soundproof Door Divider Partition Wall Hotel Hall Office 0



Soundproof partitios wall application

All the sound proof partitions are customized according to the size required, from the classroom, office to large stadium and conference center.

Sound proof partitions are usually used in schools, offices, hotels, universities, leisure centers, churches, etc., which provide a wide range of possibilities for more efficient use of available space. We will be happy to discuss your detailed requirements and advise on options.

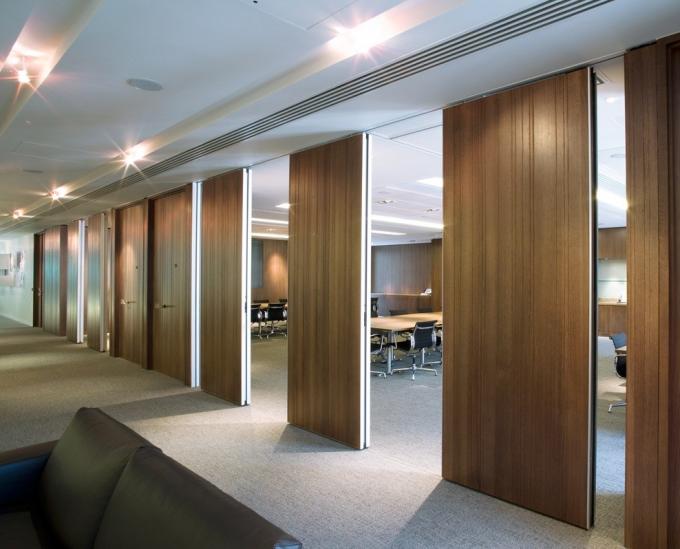

Sliding Screen Removable Movable Panel Soundproof Door Divider Partition Wall Hotel Hall Office 1



Series BG 65 BG 85 BG100
Panel supension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 400 mm 600 mm 800 mm
Panel width 600-1230 mm 600-1230 mm 600-1230 mm
Face material 9 mm 9 mm 9 mm
Pass doors Single Door or Double Door
Sound insulation 20 – 32 db 28 – 36 db 32 – 50 db
Finish Material Plywood / MDF /Laminate / Melamine / Gypsum
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)

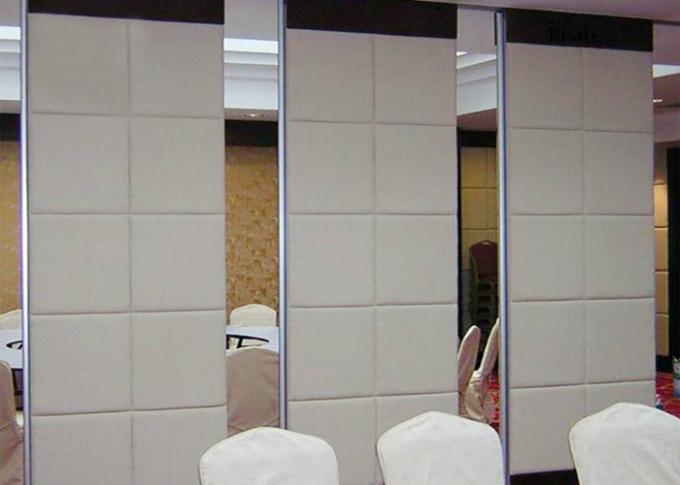

Sliding Screen Removable Movable Panel Soundproof Door Divider Partition Wall Hotel Hall Office 2

Specifications

Product Name85 Series Partitions Wall
MaterialMDF With Melamine
Thickness85 Mm
UsageBanquet Hall And Office
TrackAluminum
StyleModern
Highlightmovable partitions systems , acoustic movable walls

Product Details

Place of OriginChina(mainland)
Brand NameEBUNGE
Model Number85 Series Partitions wall
Packaging DetailsPartition board paper packaging, and finally packed in wooden carton
