Product Description

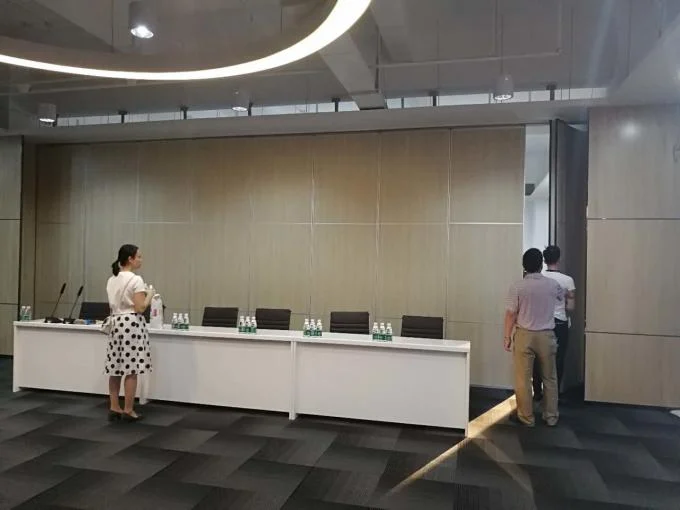

Full Height Aluminum Active Laminate Surface Sliding Fireproof Acoustic Partition Walls
Acoustic partition walls technical Information:
| Product Keywords | Acoustic partition walls |
| Thickness | 65mm, customize available. |
| Width | 500-1228mm |
| Heigth | 2000-4000mm |
| Contract Range | 22.5mm |
| Sound insulation coefficient | 28-36 |
| Surface Material | Laminate panel, Melamine panel, Hard fabric,Soft fabric etc |
| Frame Material | 6063-T6 Aluminum Alloy |
| Weight | 28-35 |
| Advantage | Free of floor track |
| Pass door selection | Single or double door |
Acoustic partition walls details
- Material: MDF, glass fiber, aluminum sound proof
- Surface treatment: veneer, melamine
- Coefficient: 30-60db
- Width: 800-1230mm
- Height 2000-4200mm
- Color: multi-color design decorative partition wall
- Fireproof: Yes
- Environment: E1 level
Acoustic partition walls operation:
When moving a acoustic partition walls panel there is a 22.5-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.
Once a acoustic partition walls panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.
The pressure seals are extended and retracted by a single 180°turn of a removable operating handle.
Final closure of the acoustic partition wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
About us:
We can provide a unique design about acoustic partition walls according to the different clients’ idea.
If the customers sent us the samples of some products,we will design and develop better ones based on the samples.
We will choose the best and nice quality materials and for every customers.
We can provide a sample availability subject to confirmation to everyone based on the different requirements
We are the 100ï¼ real manufacturer,which have our own factory and showroom in Guangzhou,China.So we have the ability of mass production.
Specifications
| Sample | Free |
|---|---|
| Thickness | 65 Mm |
| Feature | Sound Proofing,acoustic |
| Product Name | Acoustic Partition Walls |
| Finish | Melamine |
| Application | Hotel,banquet Hall |
| Highlight | acoustic operable wall , movable acoustic partition walls |
Product Details
| Place of Origin | Guangzhou,China |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO 9001 |
| Model Number | 65 mm acoustic partition walls |
| Packaging Details | Paper cartons,outside with wooden boxes. |
