Product Description

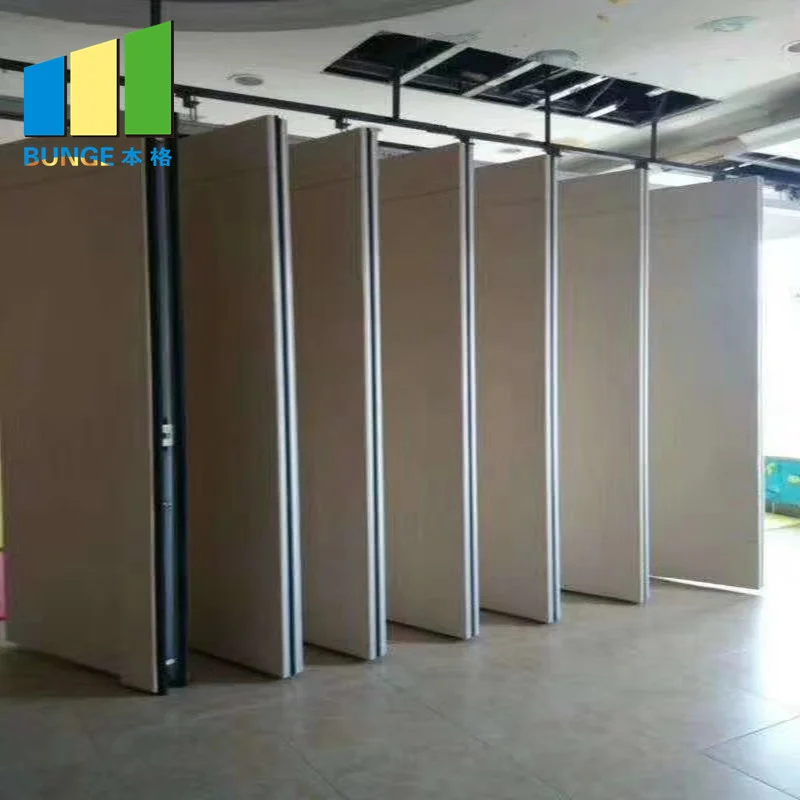

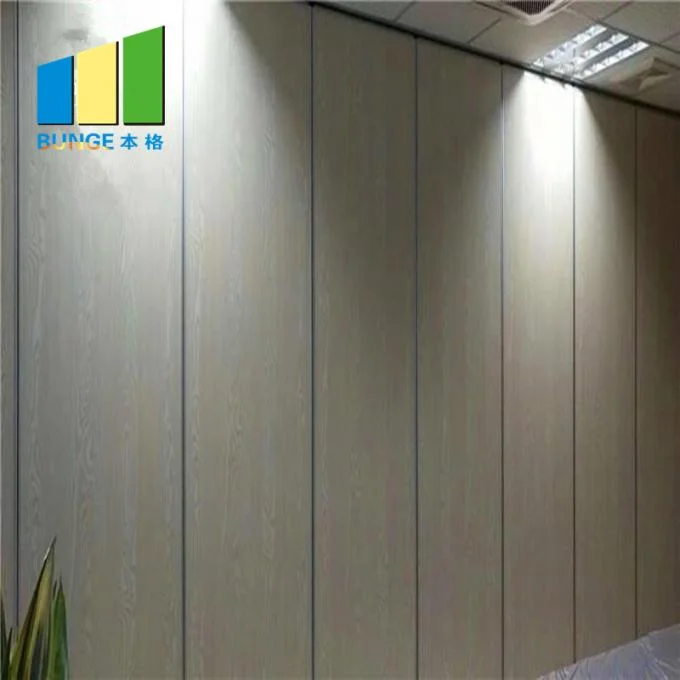

Restaurant Wooden Soundproof Movable Walls Temporary Acoustic Partition Walls
Temporary acoustic partitions details
BUNGE temporary acoustic partitions are a series of individually operated panels along a track system designed for maximum space planning flexibility. They can be arranged quickly, easily and efficiently.
The temporary acoustic partitions system is tongue-and-groove unitized panel system. Panels are precision laminated, pre-finished with vinyl, fabric or other specified finish. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 58dB.
Temporary acoustic partitions features
âTop hung system without the need for a floor track.
âAfter installing the temporary acoustic partitions,it is stable and safe,not easy to swing.
â Temporary acoustic partitions system can separate the space speedy and conveniently.
âExtensive range of temporary acoustic partitions surface finishes can be available.
âThe temporary acoustic partitions system offers various levels of sound insulation,fireproof function and heat insulation .
âWhen closing the board,the temporary acoustic partitions can be hidden in the special storage cabinet,which does not affect the overall appearance.
Technical Information
| Description of the whole system | |
| Item | Moveable acoustic partitions systems |
| Partition Height | 2-17 meters |
| Sound Transmission Class(STC) | 32-55db |
| Description of accessories | |
| Roller | Imported dupont POM material roller,bearing capacity 225-1300kg |
| Track System | Clear anodized 6063-T6 aluminum double track |
| Surface finish option | MDF,plywood, melamine,HPL,fabric,PU,wood veer, mirror steel ect. |
| Junction | “T”junction, “L” juntion, cross/ “X” juntion |
| Product name | Moveable acoustic partitions | ||
| Material | Melamine+MDF board, or MDF board+acoustic panel, or plaster board+acoustic panel, or magnesium+acoustic board, or sound insulation board+acoustic board. | ||
| Finish | Anti-fire fabric, anti-fire leather, melamine, fabric acoustic panel. | ||
| Thickness | 65mm, 85mm, 100mm | ||
| Width | 800-1200mm | ||
| Max height | 4500mm | ||
| Acoustic reduction coefficient | 30-45 dB | ||
| Hermetic bar flex distance | 46-60mm | ||
| Weight | 18-35 kg/m2 | ||
| Environmental | E1 grade | ||
| Application | Exhibition hall, international conference center, any places where need to be separated and full used easily. | ||
Specifications
| Product Name | Temporary Acoustic Partitions |
|---|---|
| Application | Conference Hall Partitions |
| Finish Option | Fabric, Melamine Laminate |
| Thickness | 65 Mm(2 9/16 Inch) |
| Contract Range | 22.5 Mm |
| Highlight | acoustic operable partitions , movable acoustic partition walls |
Product Details
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO 9001 |
| Model Number | 65 mm temporary acoustic partitions |
| Packaging Details | Paper carton, outside with wooden box |
