Restaurant Retractable Screen Acoustic Room Dividers Folding Sliding Floor to Ceiling

High quality Restaurant Retractable Screen Acoustic Room Dividers Folding Sliding Floor to Ceiling from China, China's leading product market conference room dividers product, with strict quality control banquet hall room dividers factories, producing high quality banquet hall room dividers Products.

Request A Quote

Send Your Project Details

Product Description

Folding Sliding Floor to Ceiling Restaurant Retractable Screen Room Dividers



Feature:

1.Retractable room dividers can separate the space speedy and conveniently.

2.Muti-function: sound insulation,heat insulation,fireproof function.

3.Top hung system without the need for a floor track.

4.The retractable room divider is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.

5.Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.

6.The retractable room divider is hanging on the aluminum track, assembled with muti direction wheels.

7.We can add single or double doors on the movable partition wall panels for entering convenience.

Restaurant Retractable Screen Acoustic Room Dividers Folding Sliding Floor to Ceiling 0

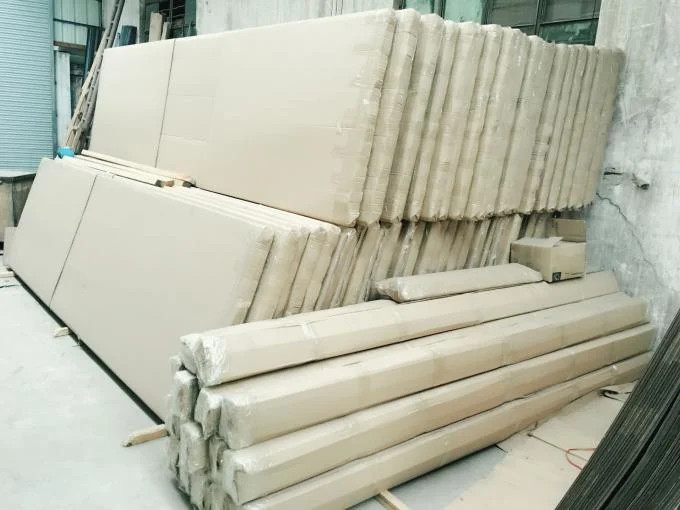

Packaging:

1. Knock down packing usually, Client packing way are welcome



2. Each part is packed with PE Foam Inside and professional corner protection



3. Outside with double strong 5 layers carton boxes,



4. Carton boxes print with the customers Logo and description, inside instruction manual easy for assemble



5. with Glass parts are packed by wooden frame to to avoid fragile

Restaurant Retractable Screen Acoustic Room Dividers Folding Sliding Floor to Ceiling 1



Bunge Operable Wall Systems-Technical Information

TYPE BG65 BG85 BG100 & BG125
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M

Restaurant Retractable Screen Acoustic Room Dividers Folding Sliding Floor to Ceiling 2



Common Applications:

1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.

2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.

3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.

4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.

Restaurant Retractable Screen Acoustic Room Dividers Folding Sliding Floor to Ceiling 3

Specifications

StyleSliding
ServiceOEM ODM
Product NameHanging Sliding Door
Thickness65 Mm(2 9/16 Inch)
InteriorInterior
Panel Width500 Mm--1220 Mm
ColorColor Selective (Customized)
ApplicationFunction Room,hotel
FinishingMelamine,fabric,leather
MaterialMDF+Aluminum
Highlightconference room dividers , banquet hall room dividers

Product Details

Place of OriginGuangdong
Brand NameBUNGE
CertificationISO9001
Model NumberSeries 65 mm retractable room dividers
Packaging DetailsCarton package, MDF batten on four section sides , foam board on both front face.
