Name: Removable Wooden Soundproofing Folding Partition Walls / Banquet Hall Partitions
Brand: EBUNGE

Product Description

Removable Movable Wooden Acoustic Soundproofing Folding Partition walls

Folding Partition Walls Usage

Each folding partition wall movable piece can be rotated 360 degrees which makes it flexible.

Furniture type folding partition walls increases the internal space of residential changes.

Folding partition walls not only can save office space, but also make a simple modern environment.

Traditional building partitions closer to functional requirements and tastes.

Modern building zone creates a rich and personalized interior space.

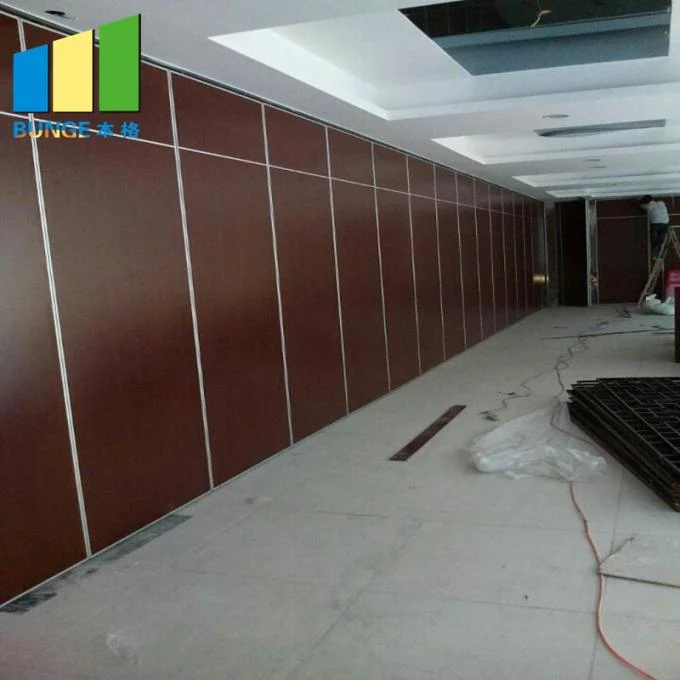

Removable Wooden Soundproofing Folding Partition Walls / Banquet Hall Partitions 0

Bunge Folding Partition Walls Systems-Technical Information

TYPE	BG65	BG85	BG100 & BG125
Panel suspension	Top hung only
Track system	Single or twin point
Panel thickness	65 mm	85 mm	100 mm
Panel height	Up to 4000mm,heights greater than 3000mm refer to our technical dept.	Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height	4000mm	6000mm	18000mm
Panel width	500 – 1200mm 1′ 5/8″ — 4′	500 – 1200mm 1′ 5/8″ — 4′	500 – 1200mm 1′ 5/8″ — 4′
Frame	Aluminum	Aluminum	Aluminum
Surface material	9mm	9mm	12mm
Fire safety	Optional class I	Optional class I	Optional class I
Vertical profiles	Aluminum, anodized with sealing profiles, painter optional	Aluminum, anodized with sealing profiles, painter optional	Aluminum, anodized with sealing profiles, painter optional
Retractable seals	Aluminum, black with double rubber seals	Aluminum, black with double rubber seals	Aluminum, black with double rubber seals
Operation of seals	Manual, with supplied operating handle
Locking	Optional lock to passing doors
Passing doors	Single open in one panel or double open in two panel
Sound insulation	32-38dB Rw	36-45dB Rw	42-55dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx 30-48kg/sq M

Removable Wooden Soundproofing Folding Partition Walls / Banquet Hall Partitions 1

Folding Partition Walls Advantages

1) Good performance of sound insulation, thermal insulation and Fire prevention.

2) Save much space for your building.

3) No tracks on the floor, it’s easy to install and remove.

4) Beautiful appearance, it is widely used in many spaces, such as meeting room, dining hall, exhibition

hall, Function room and office.

5) Aluminum or steel top hung system.

6) Retractable top and bottom seals ensure effortless movement of panels and sound-proof.

7) Concealed or exposed panel edge profiles.

8) Sealed for life roller assemblies provide smooth and silent movement.

9) Several levels of sound reduction.

10) Extensive range of surface finishes available.

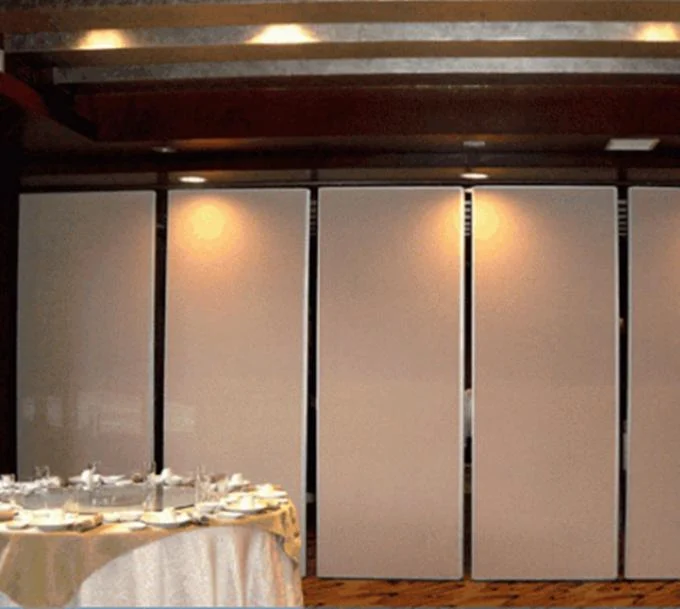

Removable Wooden Soundproofing Folding Partition Walls / Banquet Hall Partitions 2

Specifications

Product Name	Folding Partition Walls
Feature	Fireproof And Soundproof
Size	Can Be Customized
Thickness	65 Mm(2 9/16 Inch)
Color	Can Be Customized
Flame	Aluminum
Materials	Aluminum Frame+MDF
Application	Hotel, Banquet Hall, Meeting Room, Restaurant
Rail Load	250-1250 Kg/m
Highlight	soundproof folding partition , folding room partitions
