Product Description
High Quality Wooden Portable Acoustic Partition Wall For Meeting Room
|
EBUNGE BG-65# Series
|
||||||||
|
Base board
|
Hoisting weight (kgs/ã¡)
|
STC (db)
|
Structure material
|
Top/Bottom Telescopic mechanism(mm)
|
Width(mm) Min/Max
|
Height(mm) Min/Max
|
Thickness (mm)
|
Fire Safety
|
|
Plywood MDF
|
22-35kgs/ã¡
|
32db
|
Aluminium
|
22.5mm
|
500 / 1230mm
|
2000 / 4000mm
|
65mm
|
optional class o
|
|
Melamine Surface
|
||||||||
|
Fabric/Leather Surface
|
32db / 35db
|
|||||||
|
EBUNGE BG-85# SERIES |
||||||||
|
Base board
|
Hoisting weight (kgs/ã¡)
|
STC (db)
|
Structure material
|
Top/Bottom Telescopic mechanism(mm)
|
Width(mm) Min/Max
|
Height(mm) Min/Max
|
Thickness (mm)
|
Fire Safety
|
|
Plywood MDF
|
28-40kgs/ã¡
|
38db
|
Aluminium
|
22.5mm
|
500 / 1230mm
|
2000 / 6000mm
|
85mm
|
optional class o
|
|
Melamine Surface
|
||||||||
|
Fabric/Leather Surface
|
38db / 42db
|
|||||||
|
EBUNGE BG-100# SERIES |
||||||||
|
Base board
|
Hoisting weight (kgs/ã¡)
|
STC (db)
|
Structure material
|
Top/Bottom Telescopic mechanism(mm)
|
Width(mm) Min/Max
|
Height(mm) Min/Max
|
Thickness (mm)
|
Fire Safety
|
|
Plywood MDF
|
35-45kgs/ã¡
|
45db
|
Aluminum
|
30mm
|
500 / 1230mm
|
6000 / 15000mm
|
100mm
|
optional class o
|
|
Melamine Surface
|
||||||||
|
Fabric/Leather Surface
|
45db / 52db
|
|||||||
Description of High Quality Wooden Portable Acoustic Partition Wall For Meeting Room
Modernfold markets a wide range of space division solutions including Moveable Glass Walls, Operable Partitions, and Accordion Doors.Modernfold partitions help architects, interior designers, and building owners more efficiently utilize a space.
Our partitions are used in a number of different applications to deliver greater functionality and sound control, including office buildings, gymnasiums, classrooms, hotels, hospitals, retail, banks, and conference and exhibition centers. Modernfold never loses sight of the fact that each project is unique and demands individualized attention to design, product selection, installation, and service.

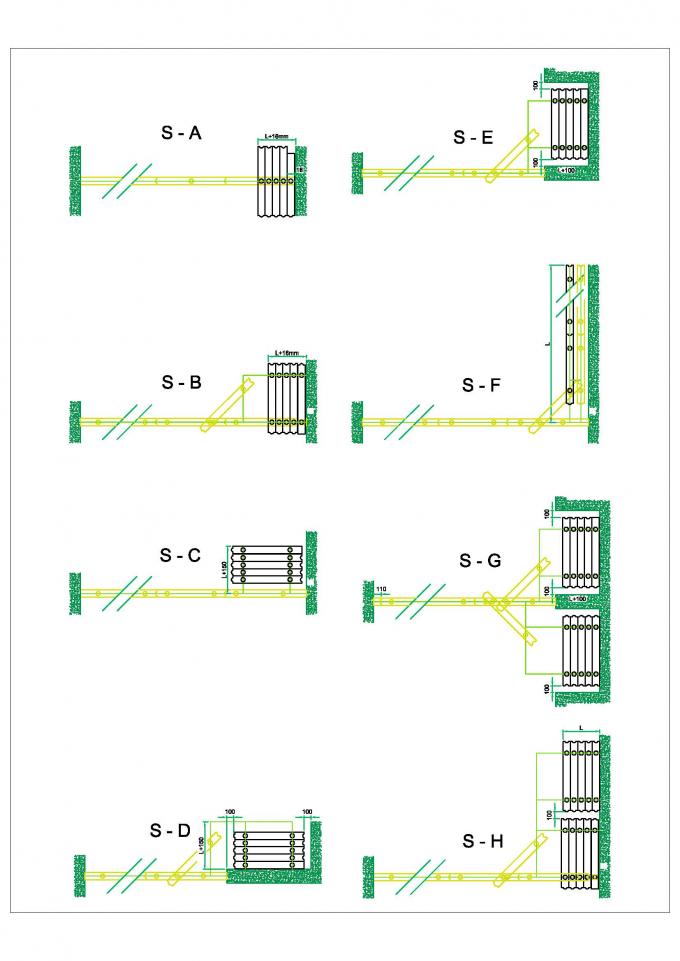

Panel Stacking of High Quality Wooden Portable Acoustic Partition Wall For Meeting Room
Specification :
Top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
The system offers various levels of sound reduction
Extensive range of surface finishes available
Specifications
| Product Name | High Quality Wooden Portable Acoustic Partition Wall For Meeting Room |
|---|---|
| Material | MDF + Aluminum |
| Color | Multe Color |
| Width | 500 / 1230mm |
| Height | 2000 / 13000mm |
| STC Coeffcient | 32 / 53db |
| Highlight | movable walls on wheels , acoustic movable walls |
Product Details
| Place of Origin | China |
|---|---|
| Brand Name | EBUNGE |
| Certification | SGS,CE etc. |
| Model Number | BG85 # movable partition wall |
| Packaging Details | High Quality Wooden Portable Acoustic Partition Wall For Meeting Room : Carton package, MDF batten on four section sides ,foam board on both front face. |
