Name: Operable Wall Folding Movable Acoustic Partition Wall Divider Sliding Partitions
Brand: EBUNGE

Product Description

Operable Wall Folding Movable Acoustic Partition Wall Divider Sliding Partitions

Folding acoustic partitions details

Height: Up to 6000mm
Panel Width: Up to 1250mm
Sound Reduction: Up to 55dB
Panel Thickness: 85 mm
Suspension method: Top hung, no floor track
Operation Mode: Manual
Panel Type: Individual panel
Seal Type: Retractable
Panel Construction: Aluminium frame
Panel Weight: Up to 56kg/m²
Pass Door Panels: Full height or single inset
Usage: Internal
Stacking Options: H track,
Panel Edges: Exposed or concealed
Panel Finishes: Laminate, HP Laminate, Veneer

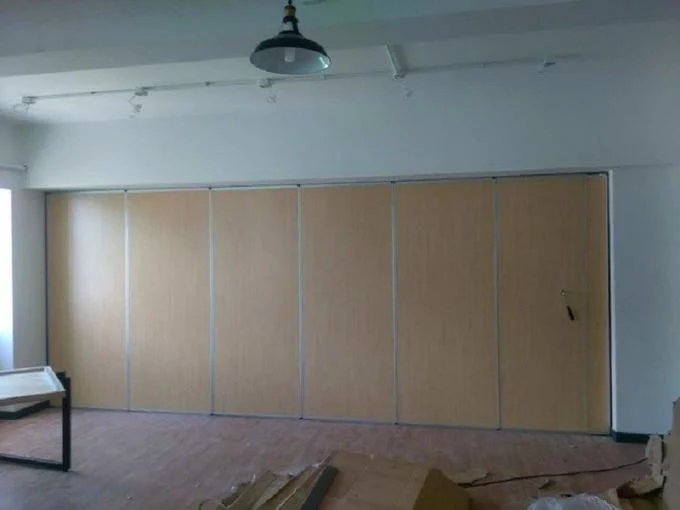

Operable Wall Folding Movable Acoustic Partition Wall Divider Sliding Partitions 0

Folding acoustic partitions features

1. We are manufacturing, supplying, distributing and exporting a broad array of sound proof partitions.

2. Sound Proof partitions are used by offices & plants for the purpose of providing noise barrier gives noise reduction in the range of 15 to 30 dba.

3. The sound proof partitions are available in three types that are wooden acoustic partitions, gypsum board acoustic partitions and metal acoustic partitions. The new trend is also getting established in industry to go for transparent acoustic barriers, namely made up of acrylic.

4. The demand of sound proof partitions are widely demanded as these are designed as per the prevailing industrial norms.

5. To meet the requirements,we prepare these acoustic partition by making use of best grade raw material as per their given specifications.

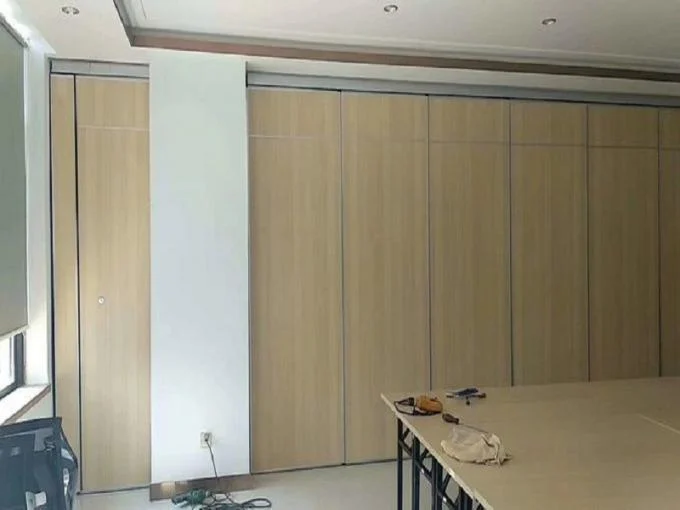

Operable Wall Folding Movable Acoustic Partition Wall Divider Sliding Partitions 1

Folding acoustic partitions technical information

TYPE	BG65	BG85	BG100 & BG125
Panel suspension	Top hung only
Track system	Single or twin point
Panel thickness	65 mm	85 mm	100 mm
Panel height	Up to 4000mm,heights greater than 3000mm refer to our technical dept.	Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height	4000mm	6000mm	18000mm
Panel width	500 – 1200mm 1′ 5/8″ — 4′	500 – 1200mm 1′ 5/8″ — 4′	500 – 1200mm 1′ 5/8″ — 4′
Frame	Aluminum	Aluminum	Aluminum
Surface material	9mm	9mm	12mm
Fire safety	Optional class I	Optional class I	Optional class I
Vertical profiles	Aluminum, anodized with sealing profiles, painter optional	Aluminum, anodized with sealing profiles, painter optional	Aluminum, anodized with sealing profiles, painter optional
Retractable seals	Aluminum, black with double rubber seals	Aluminum, black with double rubber seals	Aluminum, black with double rubber seals
Operation of seals	Manual, with supplied operating handle
Locking	Optional lock to passing doors
Passing doors	Single open in one panel or double open in two panel
Sound insulation	32-38dB Rw	36-45dB Rw	42-55dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx 30-48kg/sq M

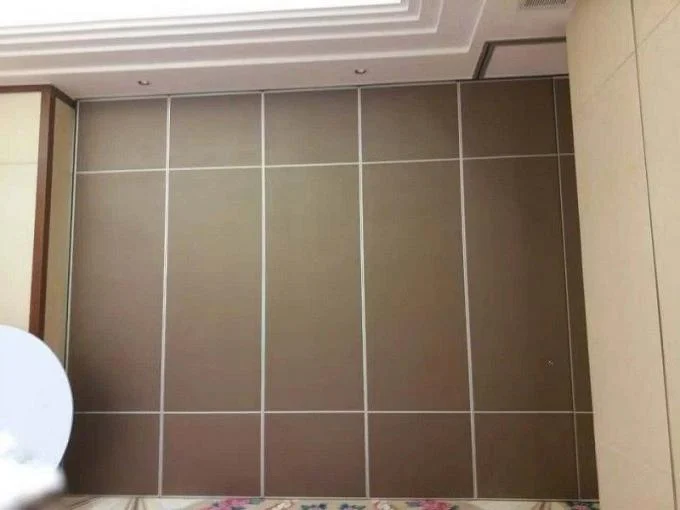

Operable Wall Folding Movable Acoustic Partition Wall Divider Sliding Partitions 2

Specifications

Product Name	Folding Acoustic Partitions
Color	Accept Customized
Finishing	Melamine,fabric,leather
Size	Partition Walls Customized
Style	Folding And Sliding
Sound Insulation	28 - 45 Db
Highlight	acoustic operable partitions , acoustic operable wall
