Product Description

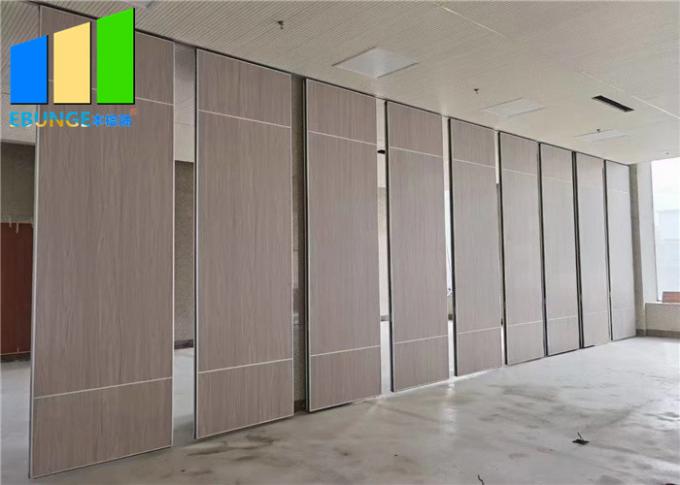

Office Room Division Convention Center Acoustic Movable Partition Walls Kenya
Acoustic Movable Partition Detail
BUNGE model 85 acoustic movable partition is the top of the range and market leader in the world of movable walls. It consists of individually operated top hung panels requiring no floor tracks. Purpose made panels can be manufactured to clients specific requirements, offering total space flexibility, long lasting use and high standards of finishes, sound reduction and durability.
Model 85 acoustic movable partition is ideal for use in hotels, conference centres, lecture theatres, civic halls, meeting rooms and office environments. It is particularly adaptable to the demands of complex multi- functional usage requirements for both corporate and public environments regardless of size, finish or acoustic properties.
The acoustic movable partition series is the highest specification range of fully operable, individual-panel acoustic movable partitions system.
The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Operable walls panels are produced in three thickness, 65 mm, 85 mm and 100 mm, depending on acoustic rating (from 22dB–50dB).
| Panel Suspension | Top hanging system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum Or Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 600mm – 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
Acoustic Movable Partition Features
1. Top Track Installation, no floor tracks, not damage the floor or carpet at project site.
2. With built in superior retractable Top and Bottom seals consist of extruded aluminium channel anodized with rubber seal laminated and is operated by handle. Vertical seals of each panel are comprised of deep tongue and grove type extruded aluminium laminated with rubber seal.
3. All models support customized single or twin point.
Specifications
| Product Name | Acoustic Movable Partitions |
|---|---|
| Width | 600-1220 Mm |
| Height | Maximum 6 M |
| Weight | 25-35 Kg/m² |
| Usage | Convention Center Partition |
| Highlight | Convention Center Movable Partition Walls , Convention Center Acoustic Movable Partition Walls , Melamine Movable Partition Walls |
Product Details
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO 9001 |
| Model Number | Model 85 acoustic movable partition |
| Packaging Details | Paper carton, outside with wooden box |
