Product Description
Conference Hall Sliding Folding Partition Office Acoustic Room Movable Partition Walls
Movable partition walls features
- Top hung system without the need for a floor track.
- Retractable top and bottom seals ensure effortless movement of panels.
- Combines elegance with robust construction.
- Concealed or exposed panel edge profiles.
- Numerous panel stacking options for complete flexibility.
- Sealed for life roller assemblies provide smooth and silent movement.
- The system offers various levels of sound reduction.
- Extensive range of surface finishes available.
| Pattern | Hoist Weight | STC | Frame Material | Track Loading Weight | Retractable Range of Top/Bottom | Width (Min/Max) |
Height (Min/Max) |
Thickness (Min/Max) |
| kg/m2 | db | kg/m | mm | mm | mm | mm | ||
| BG-65 | 30 | 32 | Aluminium | 225 | 22.5 | 750-1200 | 2000-3000 | 65 |
| BG-80 | 35 | 38 | Aluminium | 450 | 22.5 | 750-1200 | 3000-5000 | 80 |
| BG-100 | 45 | 45 | Aluminium | 675 | 22.5 | 750-1200 | 5000-10000 | 100 |

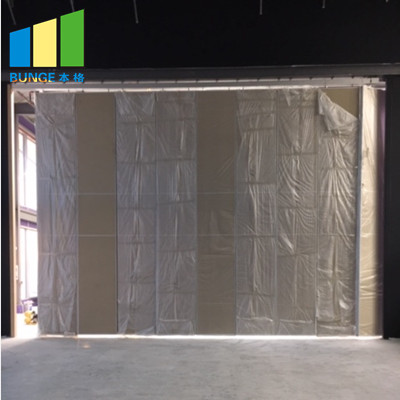

Finished project

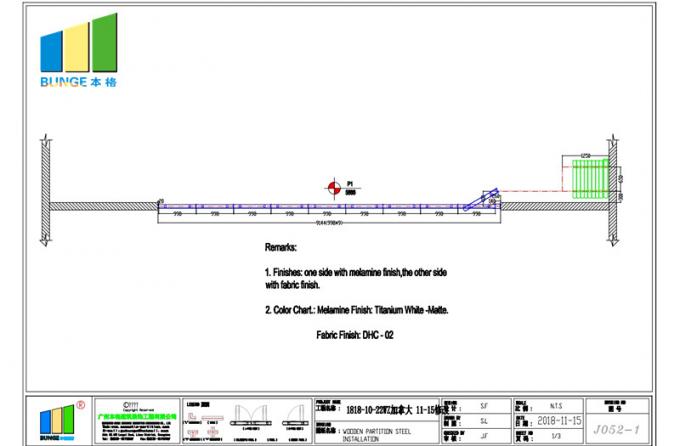

Thanks for the trust from the client. We finished a movable partition walls project in Januarary,2019. Totally 1 set of wall. Size: 9144*5886 mm, around 53.8 square meters. And the client choose 2 different finishes for this project, one is for melamine, the other is fabric finish.

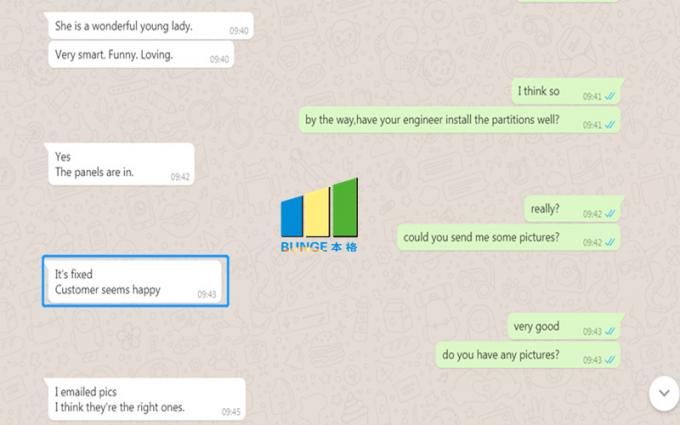

On March 20th,2019, we received some nice feedback from our client who comes from Canada.
He is a contractor in charge of the project details, his engineer just installed the movable partition walls well and sent us some pictures and videos about the project site.
Everything goes well and his client felt satisfied and happy about our movable partition walls.
Movable partition walls details
| Series | BG85 | ||
| Panel suspension | Top hung only | ||
| Panel thickness | 85mm | ||
| Max height | 6000mm | ||
| Panel width | 500-1200 mm | ||
| Face material | 9mm | ||
| Pass doors | Single door or Double door | ||
| Sound insulation | 28-38dB Rw | ||
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Specifications
| Product Name | Movable Partition Walls |
|---|---|
| Function | Room Dividers |
| Color | Customized |
| Size | Partition Walls Customized |
| Style | Sliding Folding Partitions |
| Application | Conference Hall Partitions |
| Highlight | movable walls on wheels , acoustic movable walls |
Product Details
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO9001 |
| Model Number | 85 mm movable partition walls |
| Packaging Details | Paper carton, outside with wooden boxes |
