Name: Multi-Function Hall Movable Partition, Acoustic Room Divider, Aluminium Frame
Brand: EBUNGE

Product Description

Multi-Function Hall Movable Partition , Acoustic Room Divider , Aluminium Frame

Specifications :

Technical Parameter for Partition Panel	Panel Width	500 – 1230mm
	Panel height	2000 – 4000mm
	Sound proof	32 – 38db
	Operation	Manual
	Frame	Aluminum
	Vertical profile	Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside
	Finish options	Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish
	Base options	Plywood, Gypsum, steel, MDF
	Max width	Unlimited
	Panel weight	25 – 40kg/sq
Pass door selection	door	Single or double door
Seals	Top	Manual
Seals	bottom	Manual

Description :

The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards.

Operation :

Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.

Track :

The tracks are made from extruded 6063 – T6 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.

Trolley :

BUNGE Centre/ Side /Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method.

Aluminum trim :

The panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 – T6 Anodized Aluminum shall be used.

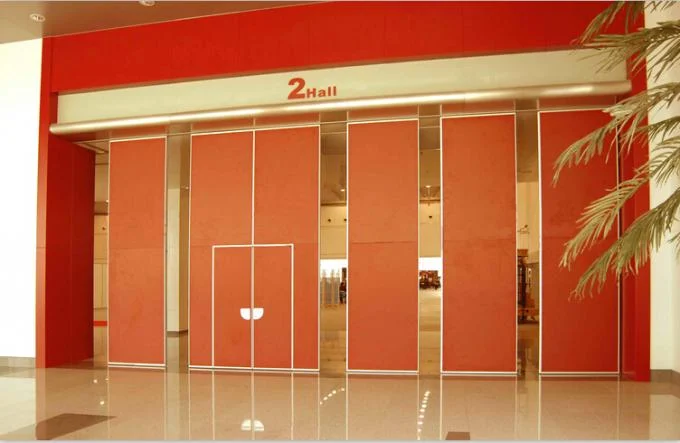

Multi-Function Hall Movable Partition , Acoustic Room Divider , Aluminium Frame 0

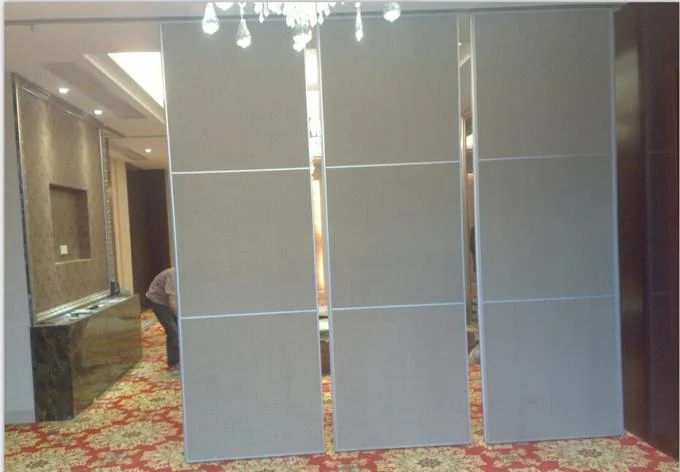

Multi-Function Hall Movable Partition , Acoustic Room Divider , Aluminium Frame 1

Specifications

Type	Room Dividers
Material	Melamine , Wooden
Track	Aluminium
Sound Proof	32 / 38 DB
Position	Commercial
Thickness	65mm
Highlight	conference room dividers , sound proof room divider

Product Details

Place of Origin	China
Brand Name	BUNGE
Model Number	Type65
Packaging Details	Carton package , MDF batten on four section sides , foam board on both front face
