Product Description

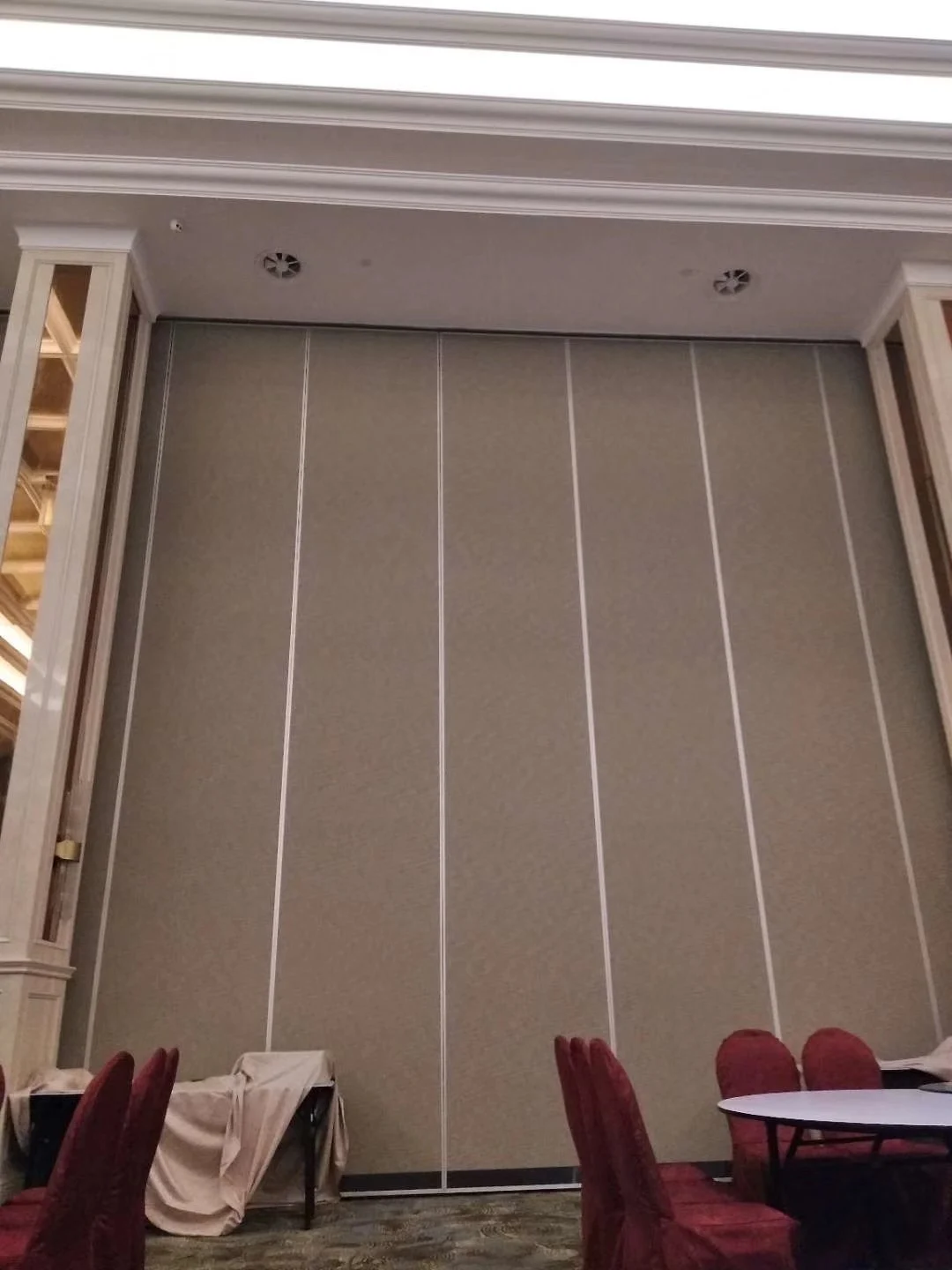

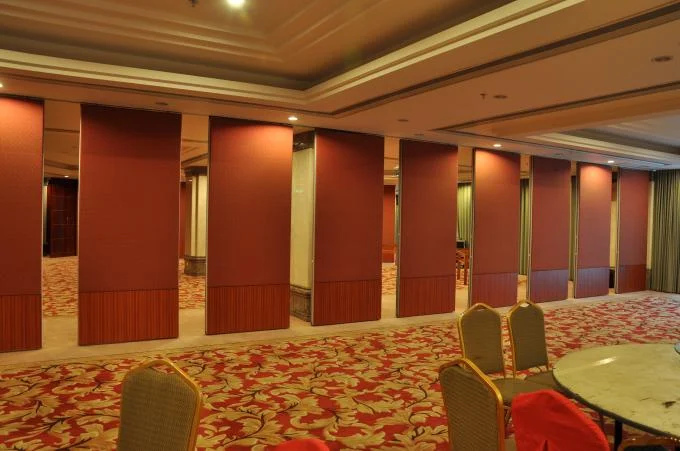

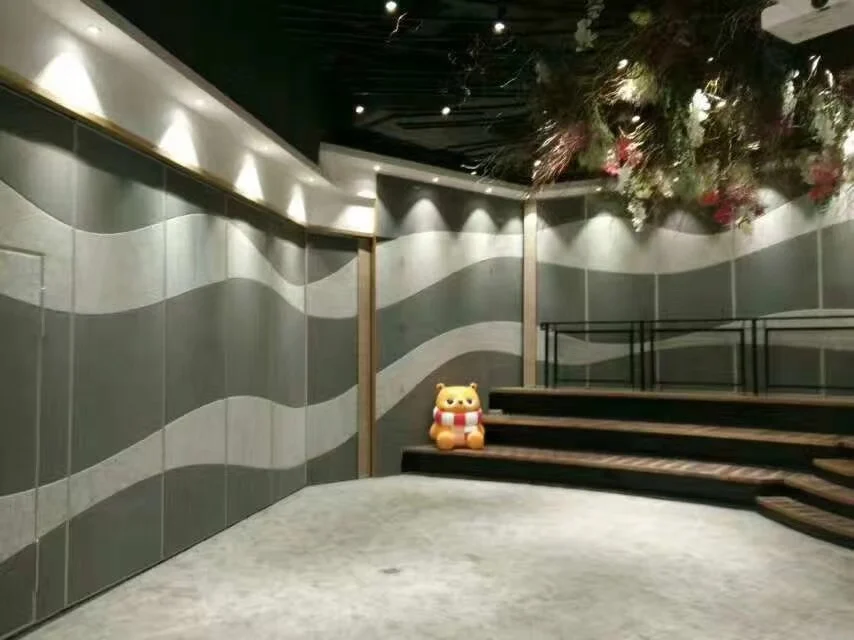

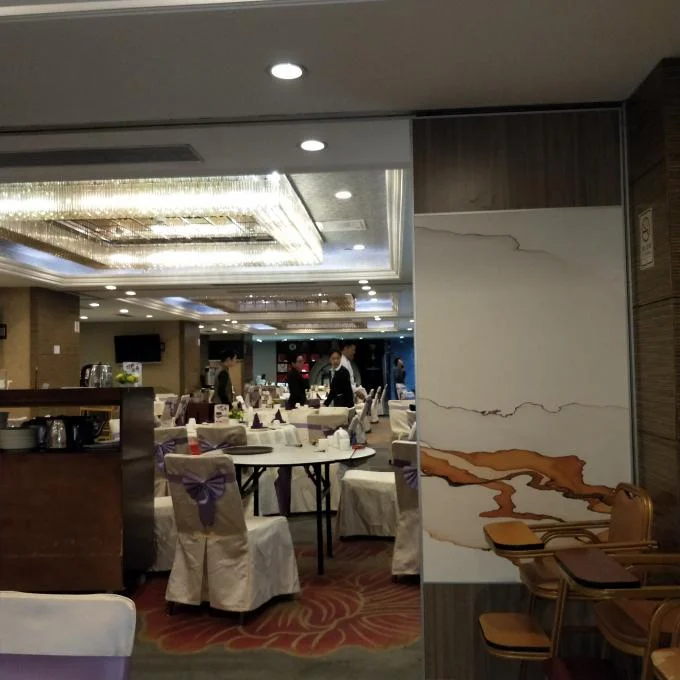

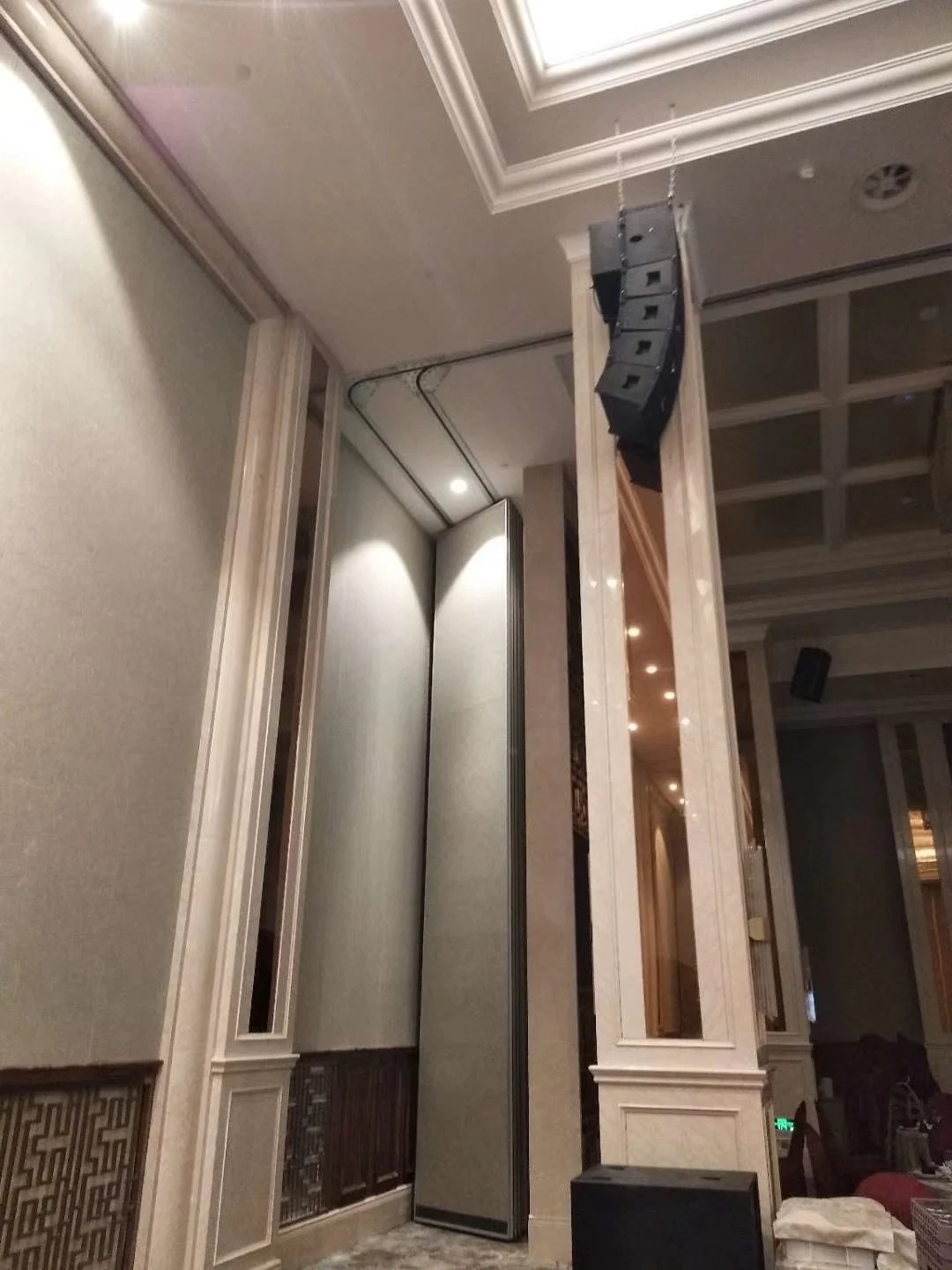

Multi Color Sliding Doors Interior Soundproof Room Divider Office Acoustic Partition Wall
Specification:
The operable wall series is the highest specification range of fully operable, individual-panel movable partitions system. Acoustic insulation noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple in fill’s and a panel assembly design that allows an acoustic break between the frame and outer layer.
The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Panels are produced in three thickness, 65 mm, 85 mm and 100 mm.
Feature:
Individual panels that can be stored away for maximum space utilization.
Operable top and bottom seals for effortless operation.
Isolated aluminium frame construction for enhanced acoustics.
High performance multiple in fill’s for maximum sound attenuation.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
No floor track ensuring obstruction free threshold.
Three panel sizes to accommodate a wide range of acoustic requirements .
Technical details:
Rubber sealing materials plays an important role in modern sound insulation technology, especially in doors, windows, cars, etc.
Our sealing rubber materials made by high quality EPDM rubber, foam production process.
Have outstanding temperature resistance, optimum hardness and mechanical strength for long lasting sealing results, Ozone resistance, resistance to chemical corrosion properties.
Operation:
When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide).
Telescopic end panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
Technical Information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. | ||
Our service:
Supply you excellent design proposal.
Supply you prompt and competitive price.
Supply you strict quality-compliance and punctual delivery.
Organize the shipment for you.
Reliable after service: timely service and efficient response.
Specifications
| Thickness | 65 Mm |
|---|---|
| Material | MDF Board+Aluminium |
| Height | Less Than 4 M |
| Service | OEM/ODM Service |
| Application | Office,conference Room |
| Panel Style | Melamine |
| Open Style | Sliding |
| Surface | Melamine |
| Position | Commercial |
| Highlight | acoustic operable partitions , movable acoustic partition walls |
Product Details
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO9001 |
| Model Number | 65 mm acoustic partition walls |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
