Multi Color Fabric Surface Office Partition Wall With Sliding Aluminium Door

High quality Multi Color Fabric Surface Office Partition Wall With Sliding Aluminium Door from China, China's leading product market acoustic folding partition product, with strict quality control soundproof folding partition factories, producing high quality soundproof folding partition Products.

Request A Quote

Send Your Project Details

Product Description

Sliding Soundproof Fabric Surface Office Folding Partition Walls


Description:

We specialize in easy to install, simply-erected, quality custom surmountable partition systems. While other companies have many complex parts that make their partition systems less than ideal, ours are moveable, reusable, and always economical.
Our non-load bearing walls feature a number of components, from bridging and panels through doors and windows. With a variety of finishes available, your custom-designed partition system can include corner channels, sound blankets, and/or cavity insulation.

Panels range in size, with thicknesses we can supply 65 mm, 85 mm and 100 mm, and heights up to 40′. They feature sound control of 37 or 53 STC.

Priding ourselves on ease of use, we can furnish a lead man to train installers to put our systems in place. Non-progressive construction with unlimited wiring/plumbing options means easy accessibility.

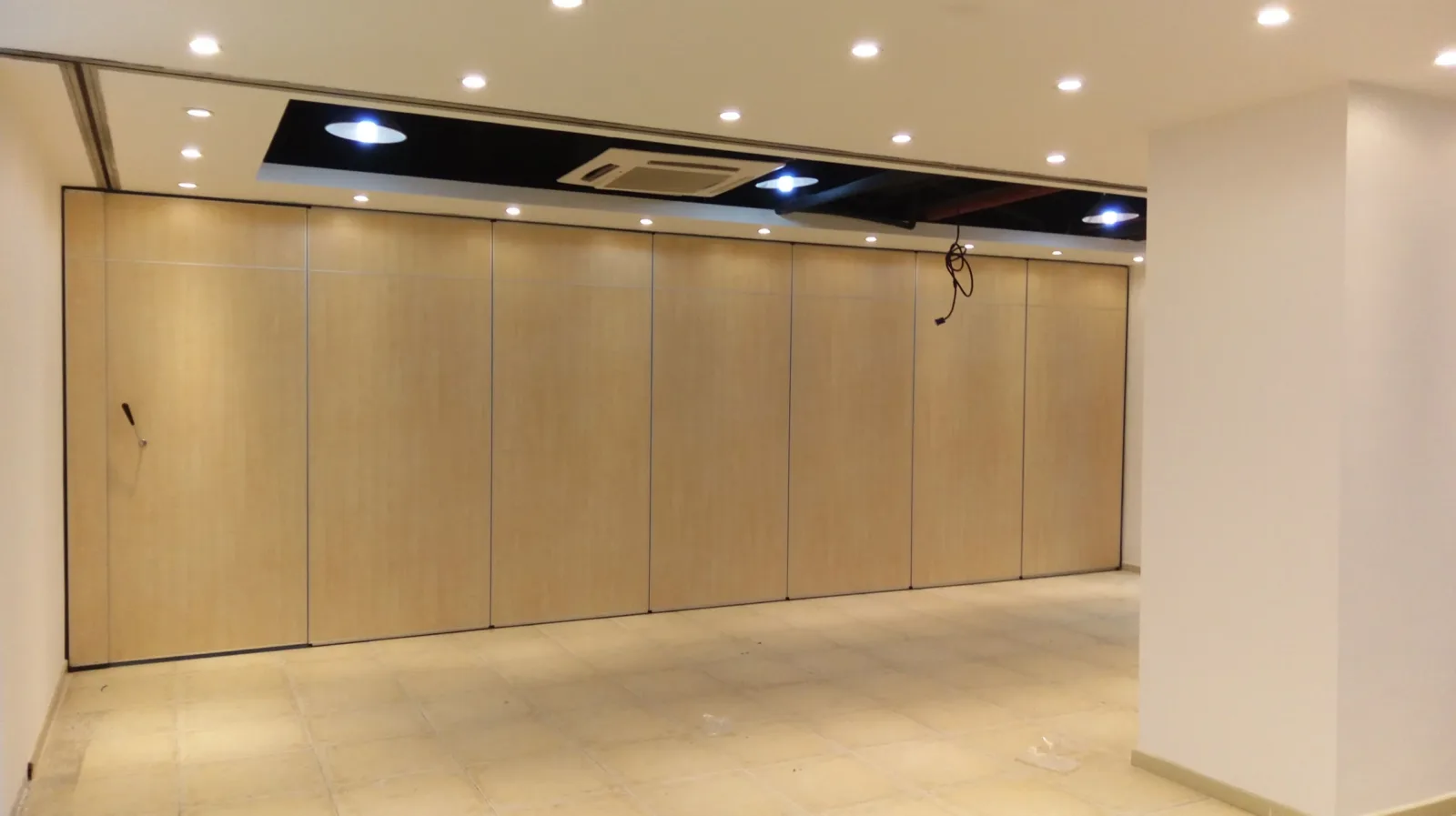

Multi Color Fabric Surface Office Partition Wall With Sliding Aluminium Door 0
Feature:

1. Floor less suspension: There is no track on the floor, just install the track on the ceiling;
2.Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;
3.Insulation and energy saving: excellent heat insulation performance, according to different occupancy rates, divide the large rating into small spaces to reduce air conditioning power consumption;
4.High-efficiency fire prevention: The production of high-efficiency fireproof materials, and good fireproof performance;
5.Beautiful and generous: any surface decoration, can be combined with the indoor decoration effect.
6.Retractable and flexible: The partitions move freely, promoting flexibility, and one person can complete the entire process of partitioning;
7.Convenient collection: when closing, the partition can be hidden in a dedicated storage cabinet, which does not affect the overall appearance;
8.Wide range of applications: Can be used in conference halls, exhibition halls, restaurants, hotels, high-cleaning factories and offices.

Technical information:


TYPE BG65 BG85 BG100
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M

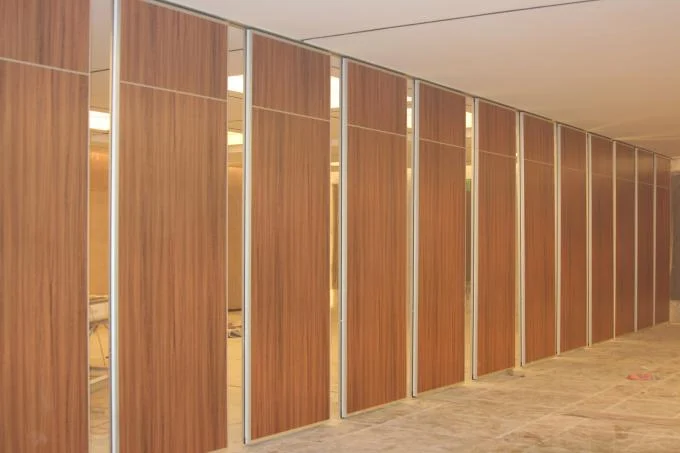

Multi Color Fabric Surface Office Partition Wall With Sliding Aluminium Door 1

Advantage:

Individual panels help to make most of the space.
Comes with top seals for easy movement.
Boasts sturdy contraction with aluminium frame.
Available with different styles and designs to meet individual needs in a perfect manner.
Above mentioned qualities of acoustic movable wall facility are appealing enough to make it popular among people. But, cost effective feature allures middle and low class people to the large extent.

Due to this pocket friendly aspect, anybody can avail its benefits without making any kind of compromise on financial ground. It is easy to reach the reputed service provider as they are located at the prime locations of the city.

Specifications

ServiceOEM Service
Metal TypeAluminium
Height6 M
ColorMulti Color
Open StyleFolding
ApplicationOffice,conference Room
FunctionSoundproof
Thickness85 Mm
Door MaterialMDF Board
Panel TypeMelamine,acoustic Fabric
Highlightacoustic folding partition , soundproof folding partition

Product Details

Place of OriginChina,Guangzhou
Brand NameBUNGE
CertificationISO9001
Model NumberSeries 85 mm folding partition walls
Packaging DetailsCarton package, MDF batten on four section sides ,foam board on both front face.
