Product Description

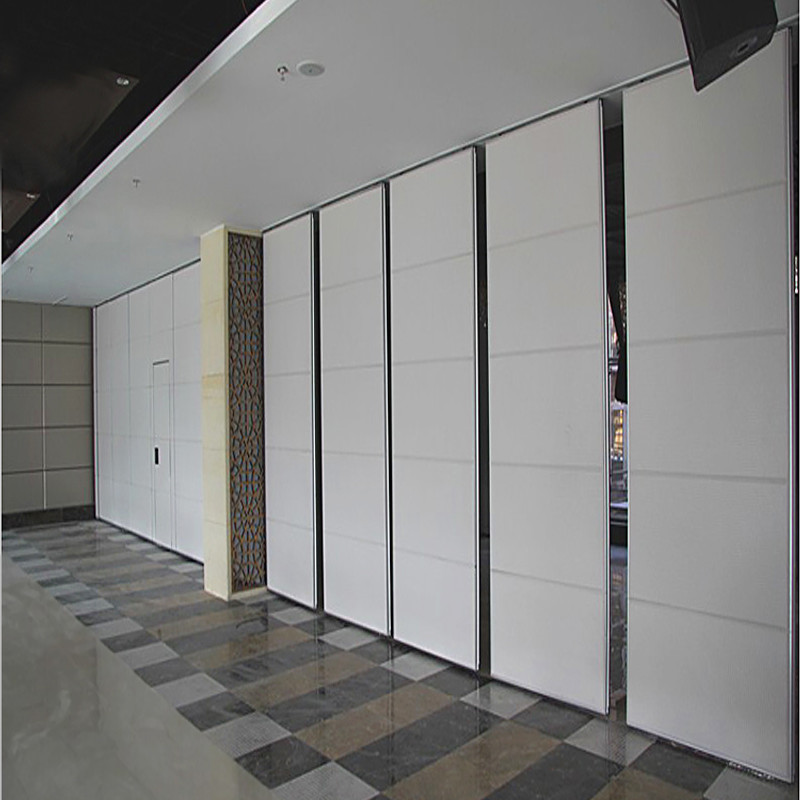

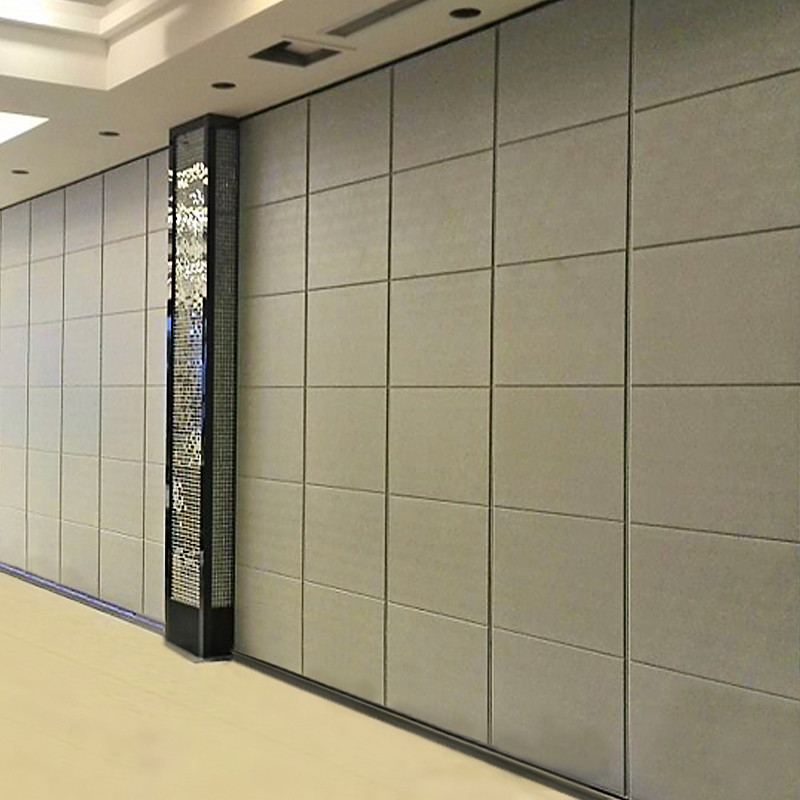

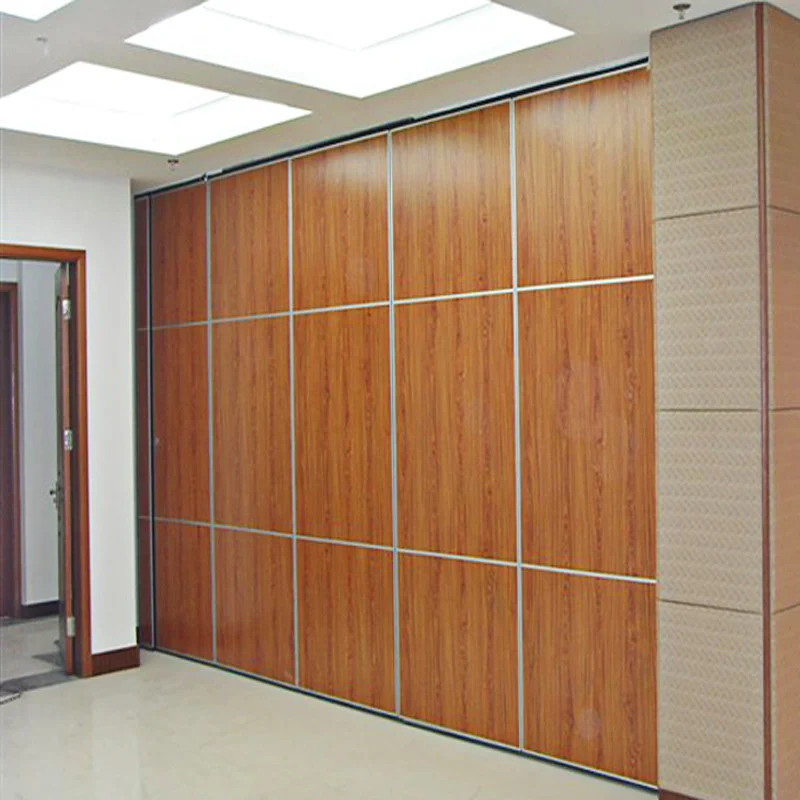

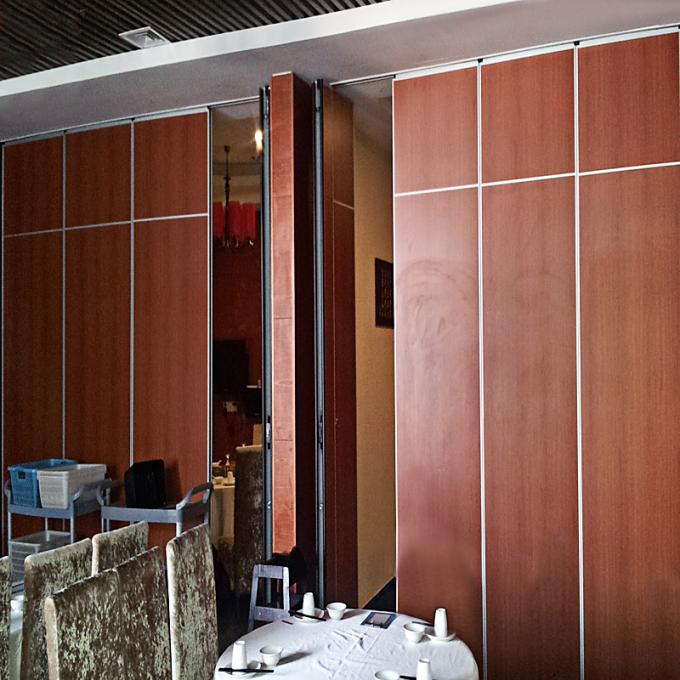

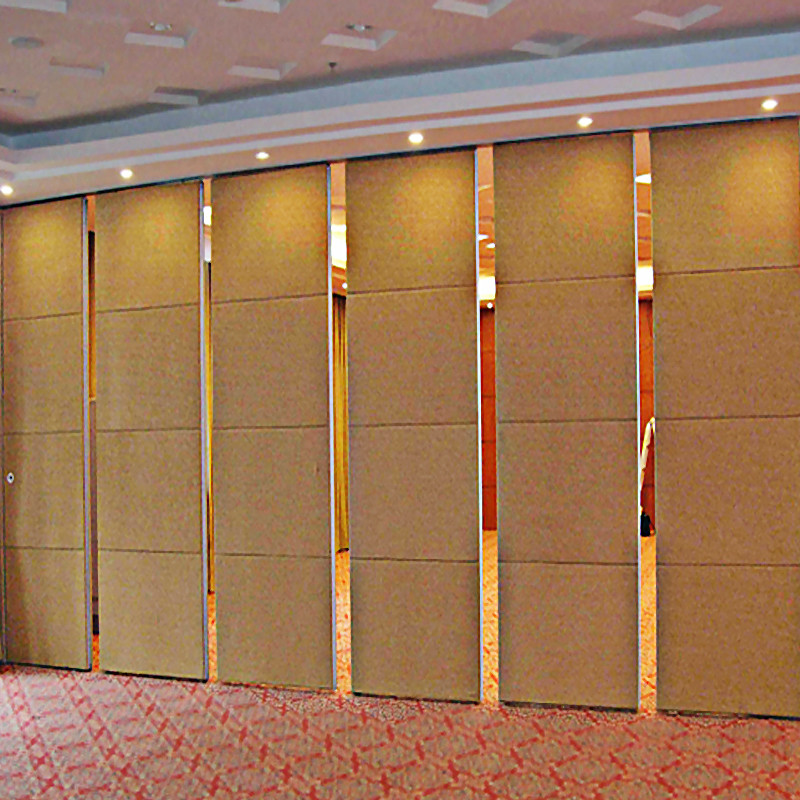

Decorative Sliding Door Folding Partition Wall
Description:
The operable wall series are the highest specification range of fully operable ,individual-panel partition system.Acoustic insulation of up to 55 dB noise reduction is achieved with a combination of operable top and bottom seals,high performance multiple infills and a panel assembly design that allows an acoustic break between the frame and outer layer.The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall.Panels are produced in four thickness:65 mm, 85 mm, 100 mm, depending on acoustic rating(from 32 dB-55dB).
Freature:
Individual panels that can be stored away for maximum space utilization.
Operable top and bottom seals for effortless operation.
Isolated aluminium frame construction for enhanced acoustics.
High performance multiple infills for maximum sound attenuation.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
No floor track ensuring construction free thresh ole.
Three panel sizes to accommodate a wide range of acoustic requirements.
Extensive range of surface finishes can be applied.
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 – 1200mm 1′ 5/8″ — 4′ |
500 – 1200mm 1′ 5/8″ — 4′ |
500 – 1200mm 1′ 5/8″ — 4′ |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Advantage:
Our easy lock-up set, Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.

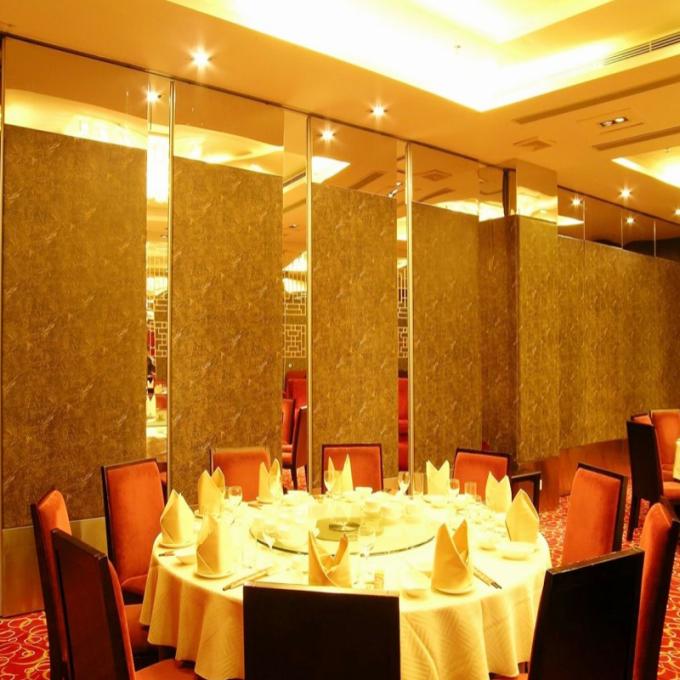

Operable Partition Walls for Hotel, Multi-purpose Hall and Conference Room.
Retractable Pressure Seals–Once the panel is positioned, they are sealed in place with retractable pressure seals.
Telescopic sleeve panel–Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panel can seal the wall tightly to reach acoustic integrity.
Packing and shipping:
(1) Inside packing:
Packed with plastic protective film to protect each piece.
(2) Carton Packing:
a. Each pcs pack in one plastic bag.
b. Numbers of quantity put in one carton.
(3) Wood Pallet packing:
a. Bundles or cartons packing.
b. Numbers of bundles or cartons laden on one wood pallet.
Loading and delivery details
Safe shipping with shipping marks for easy recognition.
Specifications
| Function | Soundproof |
|---|---|
| Height | 4 M |
| Width | 500-1200 Mm |
| Color | Multi Color |
| Thickness | 65 Mm |
| Open Style | Folding |
| Application | Conference Room, Office |
| Service | OEM Service |
| Panel Type | Melamine |
| Metal Type | Aluminium |
| Highlight | movable partitions systems , acoustic movable walls |
Product Details
| Place of Origin | China,Guangzhou |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO9001 |
| Model Number | Series 65 mm movable partition walls |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
