movable glass partitions or fixed glass partitions for office or conference room

Aluminum Acoustic Folding Partitions Walls Movable Door for Meeting Room

Finished Project

Thanks for the trust from the client who comes from Vancouver.

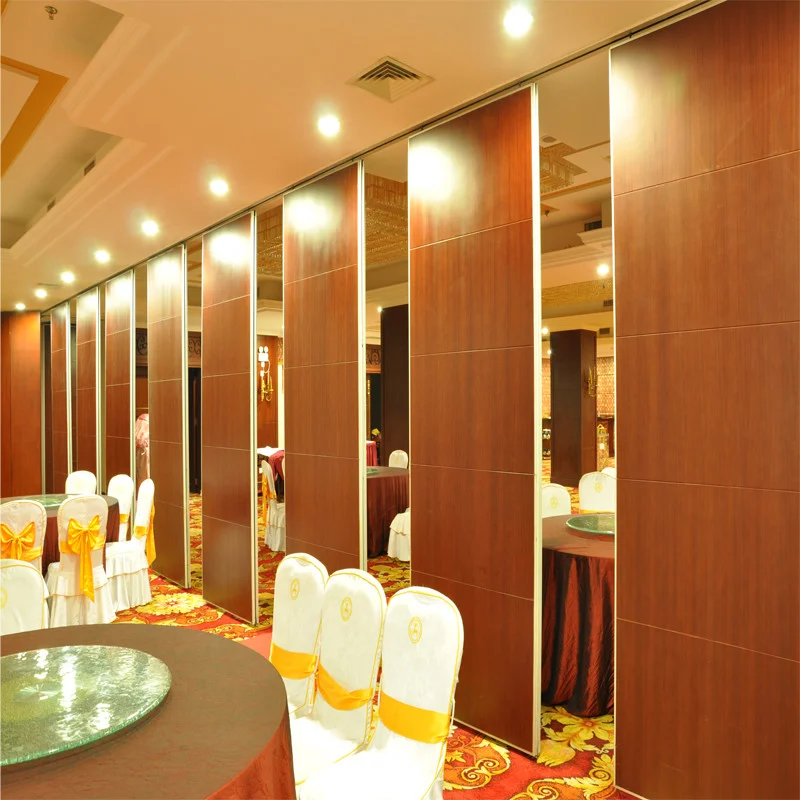

This was a project for hotel, the client used the banquet hall operable walls to divide a big rooms into many smaller rooms, so that the people have a separate small room to entertain.

After we finished the production, we sent some video and pictures to the client to check the quality, he felt satisfied in it. In 2019 April, he received our partition walls and sent us a nice feedback.

Size: Width6520*Height2728 mm, 2 sets of walls, around 35.6 square meters.

Width4000*Height2583 mm, 5 sets of walls, around 51.7 square meters.

Finish: Melamine Surface. Color Chart: CS-31741F, a nice one.

Acoustic folding partitions technical information   Model BG65 BG85 BG100 Ultra-high System Suspension System Hanging System, with ceiling rails Basic Thickness 65mm 85mm 100mm 100 mm Max Height Max 3800 mm Max 6000 mm Max 8000 mm Max 15000 mm Width 800 -1230mm Floor/ceiling Sealing strength Telescopic aluminum tube with rubber strip Side Walls Sealing Strength Double seal tape Base Board Thickness 9 mm 9 mm 12 mm 12 mm Vertical Profiles Aluminum anodised with sealing profiles Retractable Seals Aluminum black with double rubber seals Operation Manual System, with supplied operating handle Pass Doors Single or Double Pass Through Door Available Weight Approx 22-35 kg/m² Approx 25-40 kg/m² Approx30-48 kg/m² Approx38-68 kg/m² Finish Options Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Related products

1. Movable partition walls, operable walls, movable doors, acoustic room dividers, sound proof partitions.

2. Office furniture: office workstations, office chairs, conference chairs, stackable conference tables.

3. Glass partitions: movable glass partitions or fixed glass partitions for office or conference room also available.

4. Partition walls accessories: partition walls tracks and wheels.
