Modern Hotel Movable Wall Acoustic Partition Wall Aluminium Sliding Track

High quality Modern Hotel Movable Wall Acoustic Partition Wall Aluminium Sliding Track from China, China's leading product market acoustic operable partitions product, with strict quality control movable acoustic partition walls factories, producing high quality movable acoustic partition walls Products.

Request A Quote

Send Your Project Details

Product Description

Modern Aluminium Sliding Track Hotel Movable Wall Acoustic Partition Walls

Specification:

Acoustic Partition Systems offer a unique facility for utilising available space in the most practical manner.
They allow a large space to be converted into smaller, separate areas, which can be converted back to a large space with the minimum of effort. Handled well and serviced regularly, they will give many years of trouble free service.

Movable Wall can source, install and maintain a wide range of Operable Walls , Moveable Partitions, Sliding Door Systems and Room Dividers from the top manufacturers and extremely competitive rates.All installations include initial requirement assessment, on-site training in use and care as well as optional maintenance servicing contracts.

Feature:

Due to the movable partition walls flexibility and cost effectiveness, it allows large rooms to be conveniently sub-divided to maximize space utilization.

Operable wall material is customized built to suit the specified requirement. Movable partition system can be made from aluminium, gypsum, MDF, melamine-faced particleboard, plasterboard, plastic, PVC, softwood, stainless steel or wood veneer.

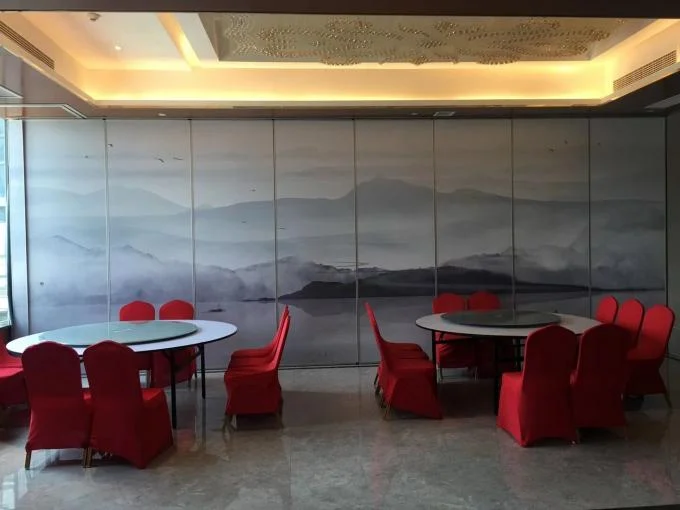

Modern Hotel Movable Wall Acoustic Partition Wall Aluminium Sliding Track 0
Acoustic partition wall technical details:

Rubber sealing materials plays an important role in modern sound insulation technology, especially in doors, windows, cars, etc.
Our sealing rubber materials made by high quality EPDM rubber, foam production process.
Have outstanding temperature resistance, optimum hardness and mechanical strength for long lasting sealing results, Ozone resistance, resistance to chemical corrosion properties.

Technical information:


TYPE BG65 BG85 BG100
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M

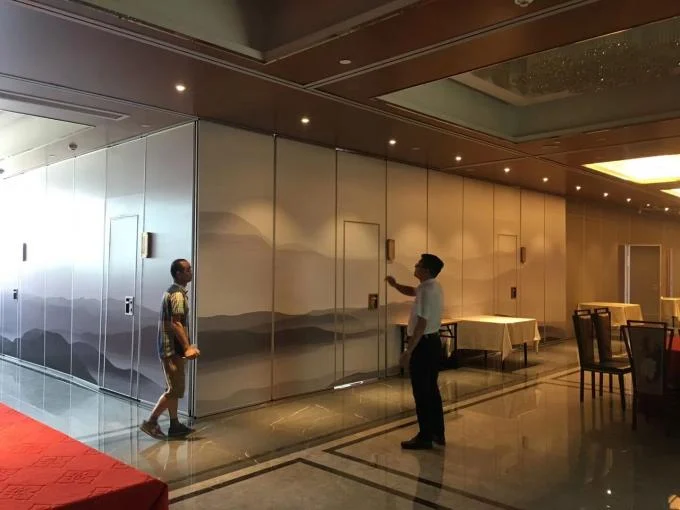

Modern Hotel Movable Wall Acoustic Partition Wall Aluminium Sliding Track 1

Acoustic partition wall advantage:
 Individual panels that can be stored away for Maximum space usage.
Operable top and bottom seals for effortless operation.
Aluminum frame construction for enhanced acoustics.
The system offers various levels of sound reduction.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
Top hanging and no floor track.
Extensive range of surface finishes can be available.

Application:

At present, movable partition walls are widely used in hotels, hotels, multi-purpose halls, conference rooms, banquet halls, office buildings, exhibition halls, financial institutions, government offices, hospitals, factories and other occasions.

Specifications

Thickness65 Mm
HeightLess Than 4 M
Width800-1300 Mm
SurfaceMelamine,fabric,leather
Open StyleSliding And Folding
FunctionDivide Space
ApplicationHotel,banquet Hall,function Room
Product NameAcoustic Partition Wall
MaterialMDF Board+Aluminium
TypeModern
Highlightacoustic operable partitions , movable acoustic partition walls

Product Details

Place of OriginChina,Guangzhou
Brand NameBUNGE
CertificationISO9001
Model NumberSeries 65 mm acoustic partition wall
Packaging DetailsCarton package, MDF batten on four section sides ,foam board on both front face.
