Melamine Surface Meeting Room Partitions / Classroom Dividers Partitions

Explore Melamine Surface Meeting Room Partitions / Classroom Dividers Partitions for overseas B2B partition projects. Share the application, opening dimensions, quantity and preferred finish with EBUNGE for project review.

Request A Quote

Product Description

Classroom Movable Wall Aluminium Accessories Folding Room Partition



Specification:



Movable Partition Walls, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.



Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements and surface finishes, with melamine probably being the most popular.



The best door for maximum acoustic performance, with variable options on sound reduction from 32dB (Rw) to 53 dB(Rw).



Feature:



Environmental protection and light material.

Top hung system without the need for a floor track.

Retractable top and bottom seals ensure effortless movement of panels.

Concealed or exposed panel edge profiles.

Numerous panel stacking options for complete flexibility.

Extensive range of surface finishes available, easy construction and transportation.

The system offers various levels of sound reduction.

Combines elegance with robust construction.

Allow Customization.

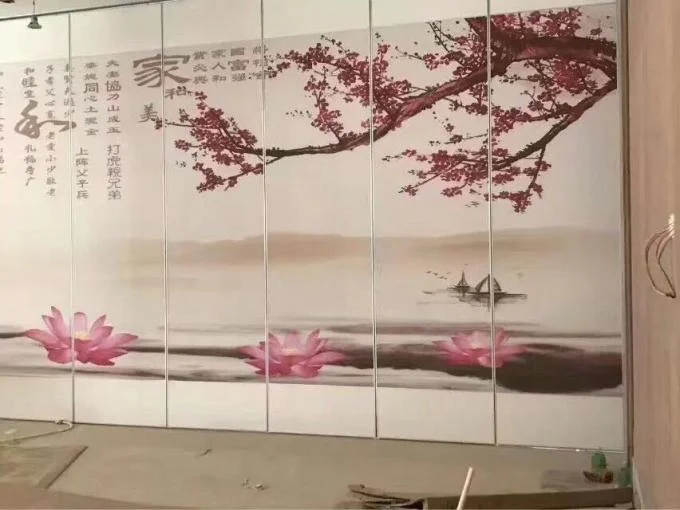

Melamine Surface Meeting Room Partitions / Classroom Dividers Partitions 0



Advantage:



Long-term use: with more economy and higher decorative, beautiful and safe, will not scratch the skin.

Cost savings: installation does not affect the construction of smallpox and the ground.

Various forms: optional with a variety of occasions partition wall, can be customized according to customer requirements.

Easy combination: in the re-assembly can make full use of building materials.

Material environmental protection: selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.

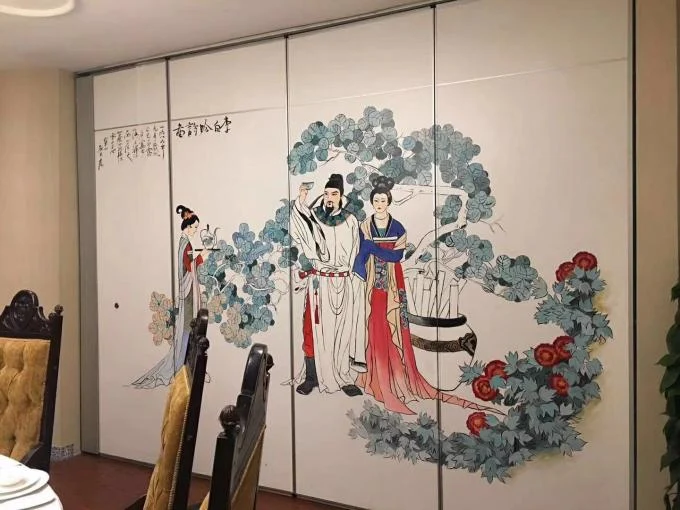

Melamine Surface Meeting Room Partitions / Classroom Dividers Partitions 1



Technical information:



Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)



Operation:



When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide).

Telescopic end panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.

Specifications

Product NameFolding Partition Walls
FinishedMelamine,fabric
CertificateISO9001
Height6 M
Thickness85 Mm
Door MaterialAluminium Alloy
Open StyleSliding
ApplicationBanquet Hall,conference Room
ColorMulti Color
Highlightacoustic folding partition , soundproof folding partition

Product Details

Place of OriginChina,Guangzhou
Brand NameEBUNGE
CertificationISO9001
Model NumberSeries 85 mm folding partition walls
Packaging DetailsCarton package, MDF batten on four section sides ,foam board on both front face.
