Product Description

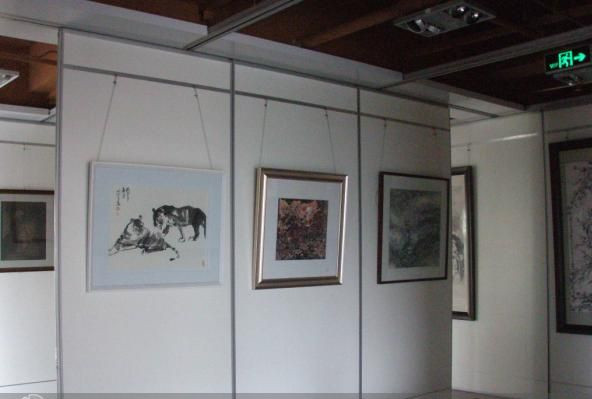

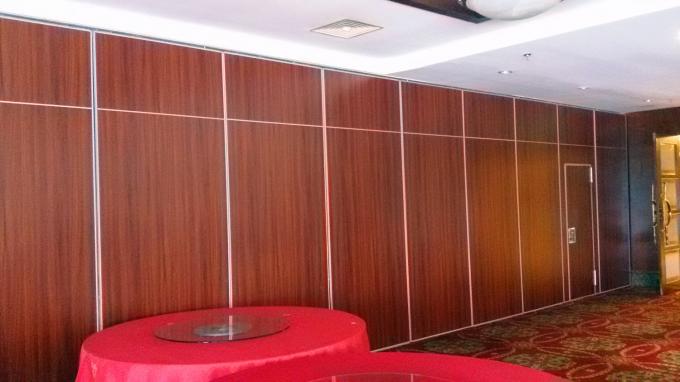

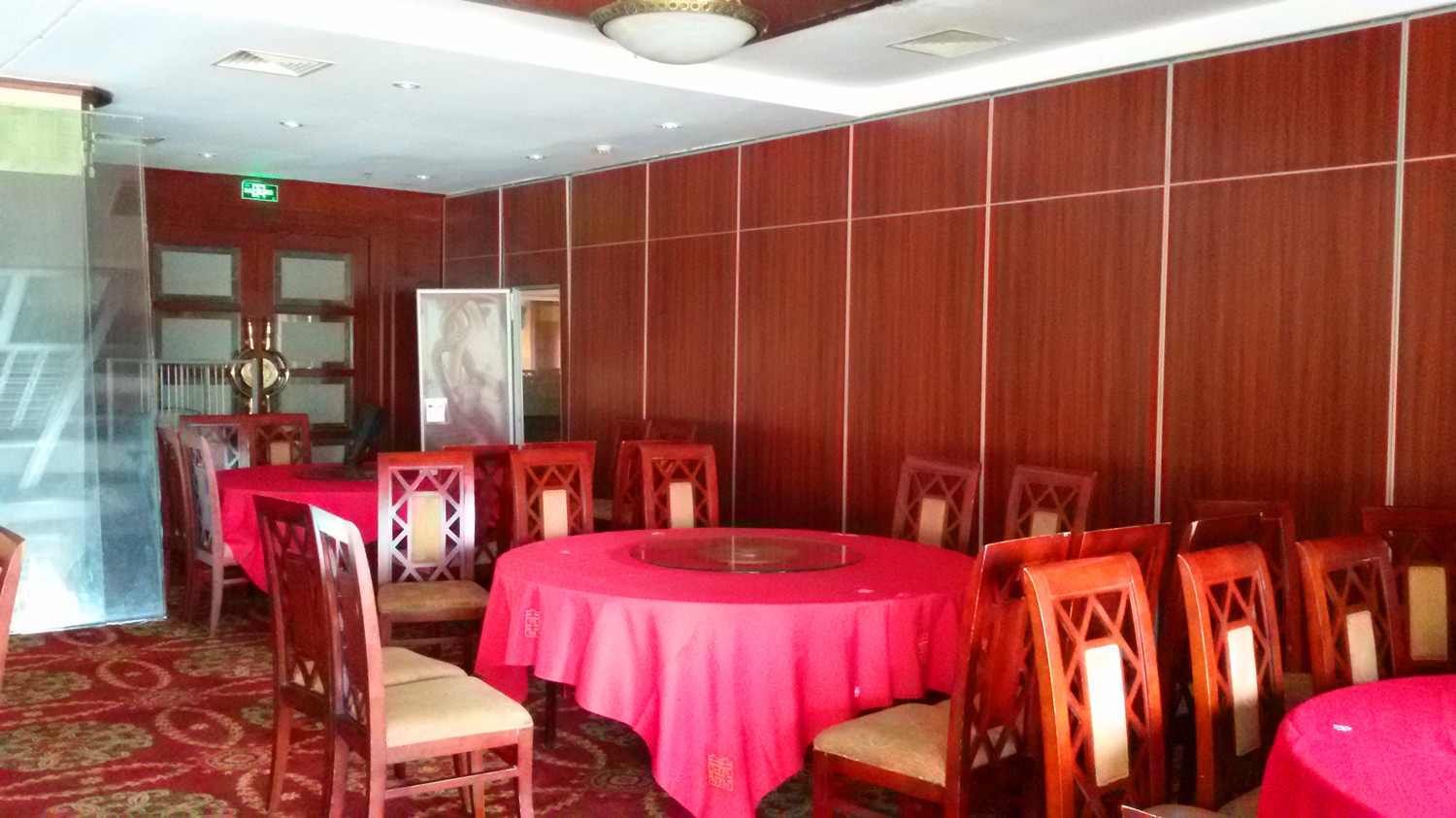

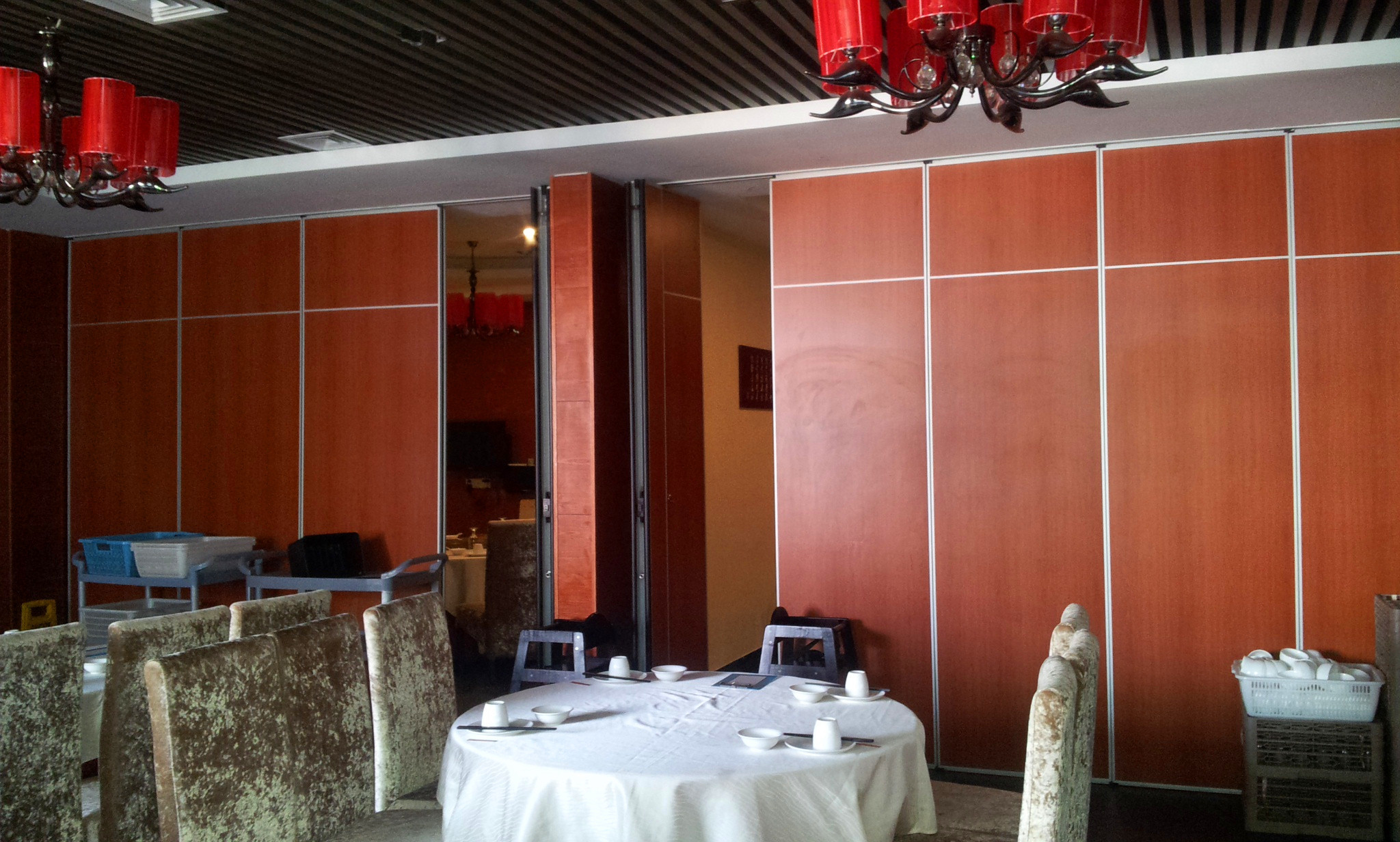

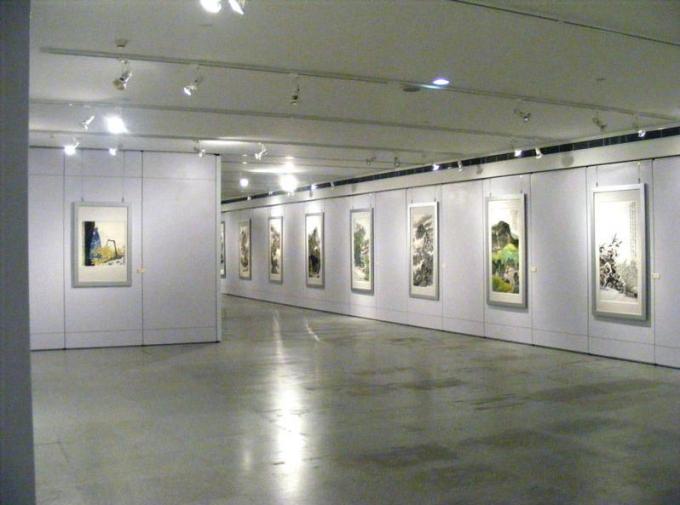

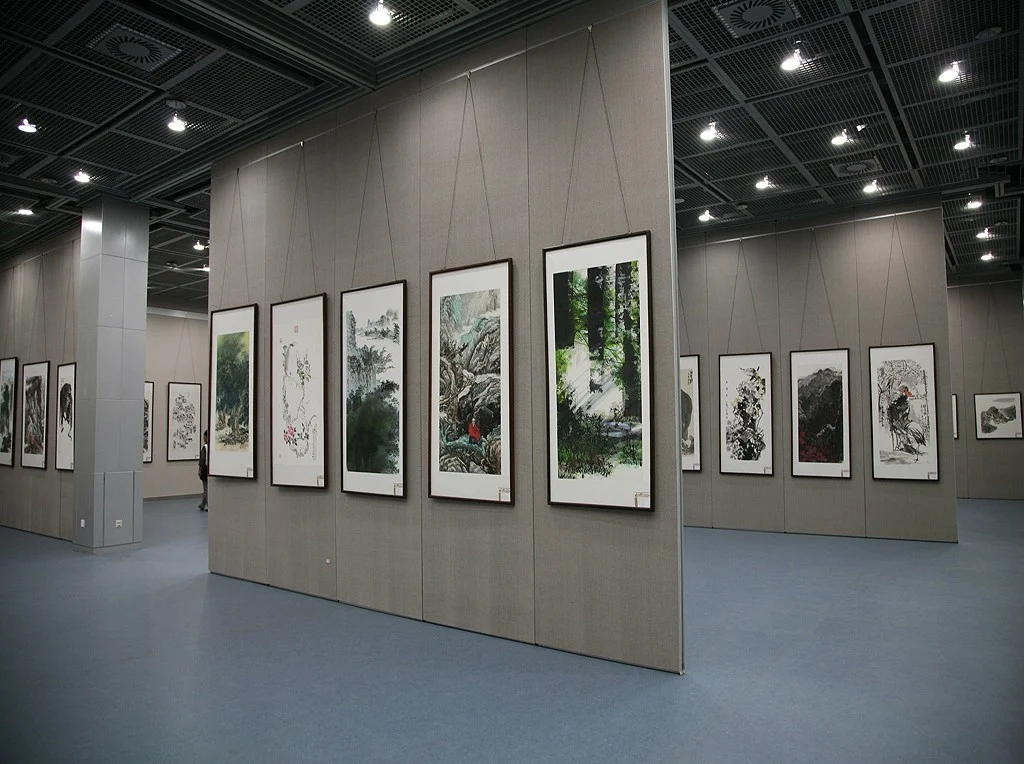

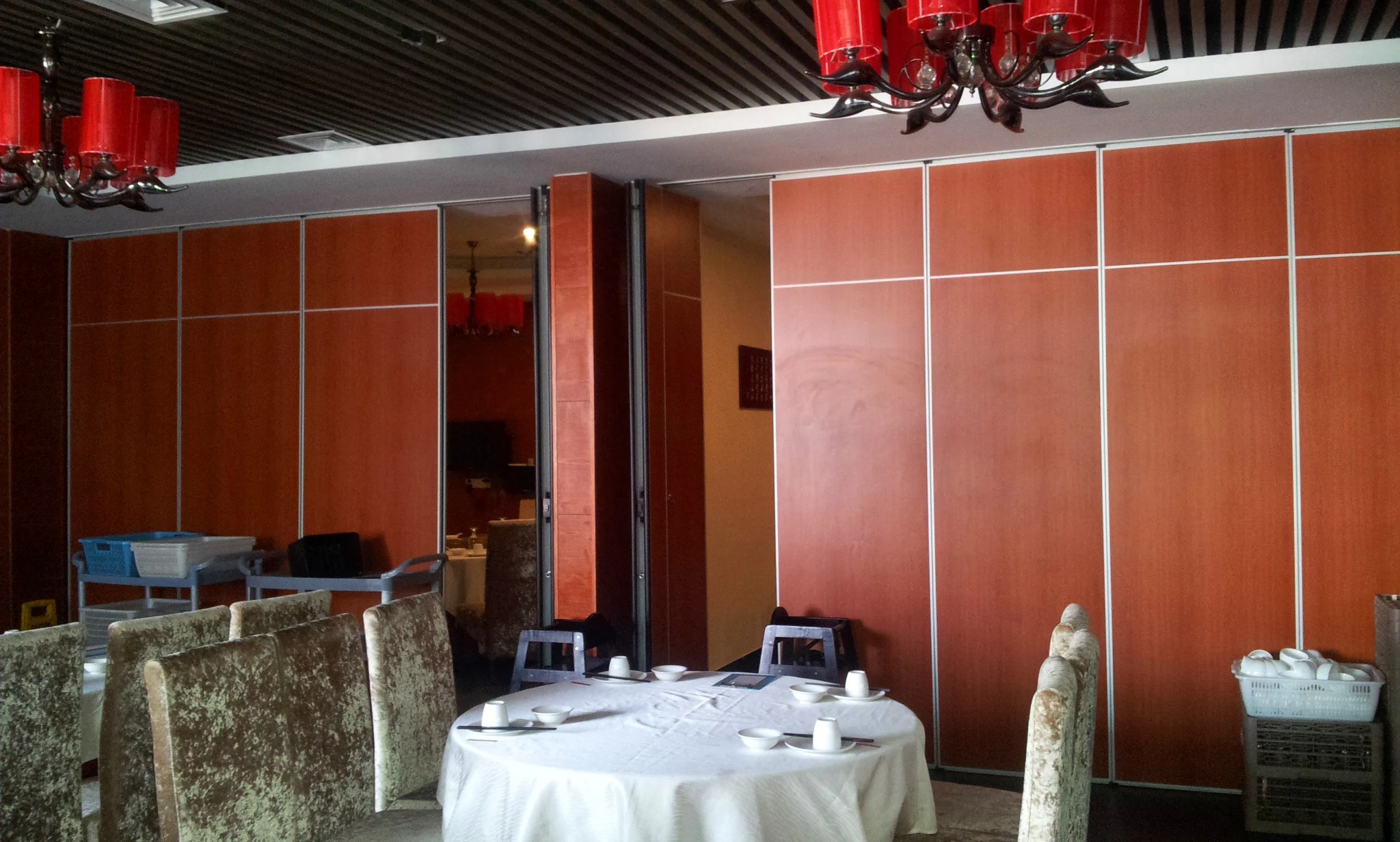

Melamine Surface Floor to Ceiling Hanging System Banquet Hall Operable Partition Wall
Specification:
BUNGE offers a technologically advanced, aesthetically pleasing design. It uses a unique welded steel frame that permits all substrates (skins), both breakable and steel to be welded to the frame. It never requires substrates or skins to be glued or mechanically attached to the frame. This construction provides a durable, unitized panel that will last for years of rugged use.
The basic panel construction is combined with wraparound finishes for a T rimless, monolithic appearance. Deep interlocking vertical astral at all panel joints align panels ensuring a smooth wall face while providing an acoustic seal.
Automatically setting and retracting bottom seals provide 22.5 MM of operating clearance to accommodate for floor variation and or deflection.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Feature:
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Allow Customization.
Advantage:
(1) The surface can be made of any decorative surface, perfectly combined with the interior decoration style;
(2) The partitions are free to move freely and promote flexibility, which can be hidden in special storage cabinets without affecting the overall appearance;
(3) It can be used in conference rooms, exhibition halls, restaurants, training rooms, muti-function halls and other commercial establishments;
(4) Each screen is equipped with a telescopic mechanism, which can serve as a fixed screen and achieve soundproofing.
Operation:
A large amount of repairs are as a result of incorrect operation by users. Movable wall panels are deceptively heavy due to the ease of operation but are capable of serious crush injuries. Your work place risk assessments should have taken this into account and state that only trained and authorized personnel may operate the wall.
We will offer training on the safe and correct operation of your system to your staff.
Movable walls and sliding folding partitions do have a life cycle and there is a point where maintenance and repairs become either impossible or uneconomical.
We can offer:
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
Specifications
| Material | Melamine |
|---|---|
| Height | 4 M |
| Width | 500-1200 Mm |
| Certificate | ISO9001 |
| Application | Banquet Hall,conference Room |
| Thickness | 65 Mm |
| Open Style | Sliding |
| Position | Commercial |
| Sliding Door Type | Partition Doors |
| Product Name | Office Partition Wall |
| Highlight | acoustic sliding partition , sound proof sliding partitions |
Product Details
| Place of Origin | China,Guangzhou |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO9001 |
| Model Number | Series 65 mm operable partition wall |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
