Product Description

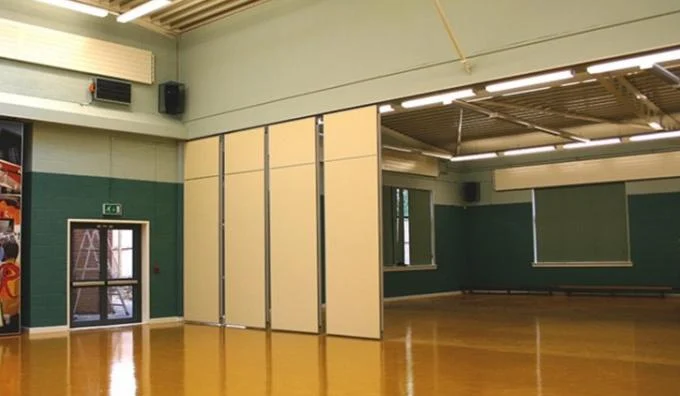

Melamine , Movable Folding Partition Walls For Meeting Room , Banquet Hall
Technical Description Feature
1. Change the room space freely .
2. Heavy Track loading capacity make sure the safety of Partition .
3. Precise welding between separate rail can eliminate repairing and maintenance rate .
4. Partition retract and push easily for one people to handle the operating work .
5. Wide application: can be used in Office place , commercial place , exhibition place , Hospital place .
Easy Parking On Movable And Operable Partition System
In their stacked position , the elements form a compact package and can be accommodated in the smallest of spaces depending on the room situation . The low weight of the elements and the associated structural advantages are particularly noticeable here.The four standard stacking or parking track systems offer convenient operability with a minimum of noise from the individual elements as they slide into position on movable and operable partition system .
Specifications:
|
Technical Parameter for Partition Panel |
Panel Width |
500 – 1230mm |
|
Panel height |
2000 – 4000mm |
|
|
Sound proof |
32 – 38db |
|
|
Operation |
Manual |
|
|
Frame |
Aluminum |
|
|
Vertical profile |
Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside |
|
|
Finish options |
Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish |
|
|
Base options |
Plywood, Gypsum, steel, MDF |
|
|
Max width |
Unlimited |
|
|
Panel weight |
25 – 40 kg / sq |
|
|
Pass door selection |
door |
Single or double door |
|
Seals |
Top |
Manual |
|
bottom |
Manual |



Specifications
| Material | Aluminum |
|---|---|
| Surface | Melamine |
| Thickness | 65mm |
| Sound Proof | 32 / 38 DB |
| Weight Kg/m2 | 22 / 30 |
| Max Panel Height Mm | 4000 |
| Highlight | acoustic folding partition , folding room partitions |
Product Details
| Place of Origin | China |
|---|---|
| Brand Name | BUNGE |
| Model Number | Type 65 |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face |
