Product Description

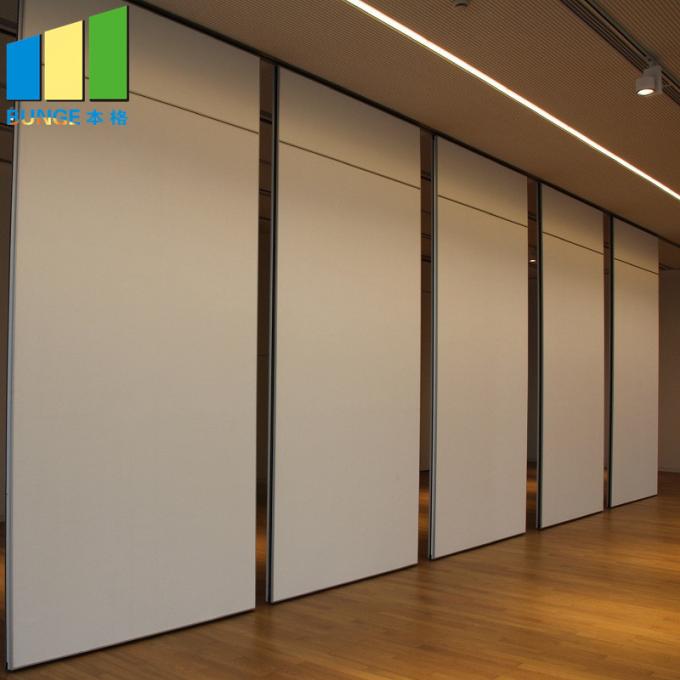

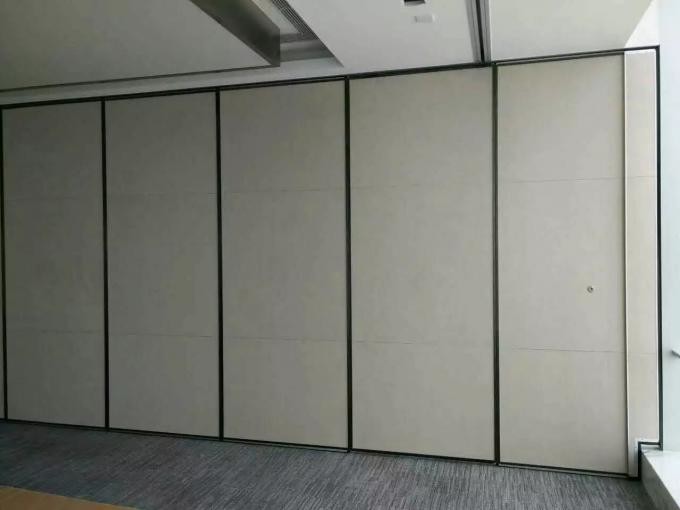

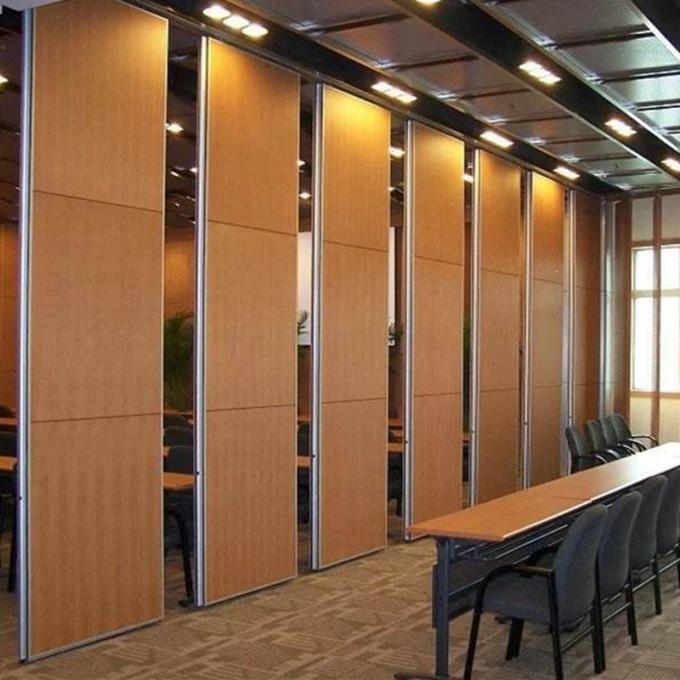

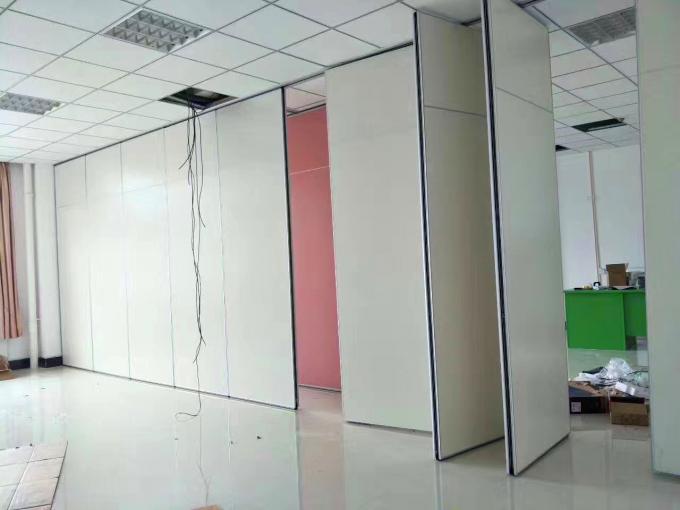

Soundproof Sliding Movable Walls For Auditorium meeting room With Aluminum Frame MDF Finish
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
Partitions wall details
Frame: the frame material of the mobile screen is made of 6063-t6 aluminum alloy oxide material.
Rail: same as the frame, 6063-t6 aluminum oxide material, bearing capacity limit of 625kg.
Hanging wheel: movable screen roller material is PA, can make any Angle rotation in the horizontal plane, can slide through the rail L, T, X intersection.
Layering: the material is anodized aluminum, sealed screen and ground, ceiling this gap, sound insulation and fixed screen.
Sealing tape: material is PVC+ polyethylene, tensile strength 8.15mpa, shore A hardness 65+MPA, tear strength 30KN/M, the surface color is black, sealing head, sealing light, and contact wall buffer effect.
Telescopic mechanism: standard 45 steel and spring steel, pressure spring operation, can automatically adjust the gap between the screen and the ground.
Telescopic range: telescopic range of movable screen telescopic plate is 100mm
Weight: 41kg-50kg/m2 (depending on the decoration surface, the weight of each unit is different).
Sound insulation coefficient: 43db-53db
Telescopic range: telescopic range of movable screen telescopic plate is 100mm
Single height of movable screen: 2000-15000mm
Width of movable screen unit: 900-1200mm
Single thickness of movable screen: 65mm 85mm 100mm 125mm
Partitions wall finish
The decorative surface with general partition screen has: board of medium fibre, 3 get together cyanamide board, plywood, fire prevention board, wall paper, cloth is soft bag, leather is soft bag, cloth is hard bag, leather is hard bag, glass, mu PI is etc., design diversity, style each different, the setting demand that can satisfy different situation.
Application
The partition screen is widely used in hotels, hotels, banquet halls, restaurant boxes, training rooms, teaching rooms, offices, meeting rooms, office buildings, living rooms
WITH US YOUR MONEY IS SAFE ,YOUR BUSINESS IS SAFE.
We are the office partitions walls and office furniture supplier from China, we have our own factory and showroom in Guangzhou .Welcome to visit us.
We offer
1:Factory direct price
2:Nice quality
3:Quick shipping with 5 days
4:Small order welcome
5:Support customer designs
6:More than warranty terms subject to written confirmation
Specifications
| General Use | Soundproof Partition Walls Are Used For Interior Decoration |
|---|---|
| Type | Folding Partition |
| Material | MDF,Aluminium |
| Color | Customized |
| Size | Customized |
| Thickness | 100mm |
| Application | Commercial Building And Residential House |
| Style | Modern |
| Height | Max 8000mm |
| Width | 750~~1200mm |
| Feature | Space Saving |
| Highlight | movable walls on wheels , movable partitions systems |
Product Details
| Place of Origin | Guangdong ,China |
|---|---|
| Brand Name | BUNGE |
| Model Number | 65 SERIES |
| Packaging Details | Partition board paper packaging, and finally packed in wooden frame |
