Name: MDF Aluminum Frame Soundproof Folding Wood Partition Wall For Conference Center
Brand: EBUNGE

Product Description

MDF aluminum frame Soundproof folding partition walls cost wood partition wall for the conference center

1.Technical Parameters:

Series	BG65	BG85	BG100
Panel suspension	Top hung only	Top hung only	Top hung only
Track system	Single or twin point	Single or twin point	Single or twin point
Panel thickness	65mm	80mm / 85mm	100mm
Panel height	Up to 4000mm	Up to 6000mm	Up to 18000mm
Max height	4000mm	6000mm	18000mm
Panel width	600-1230mm	600-1230mm	600-1230mm
Frame construction	Aluminum frame	Aluminum frame	Aluminum frame
Face material	9mm	9mm / 12mm	12mm
Fire safety	Optional Class I or O	Optional Class I or O	Optional Class I or O
Vertical profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles
Retractable seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals
Operation of seals	Manual, with supplied operating handle	Manual, with supplied operating handle	Manual, with supplied operating handle
Locking	Optional lock to pass doors	Optional lock to pass doors	Optional lock to pass doors
Pass doors	Single open in panel or double open in two panel	Single open in panel or double open in two panel	Single open in panel or double open in two panel
Sound insulation	20-32dB Rw	28-36dB Rw	32-50dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx30-48kg/sq M
Finish Material	Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

MDF Aluminum Frame Soundproof Folding Wood Partition Wall For Conference Center 0

2.Advantages:

1) Folding room partition movable wall interlocking male / female trapezoidal vertical aluminum profiles, for soundproof connection between elements.

2) Movable room partition to ensure additional friction connection shall be integrated with a magnetic strip.

3) The operable partition wall is an easy element adjustment after installation.

4) Movable wall track system shall be Extruded aluminum, maintenance-free with heavy-duty ball bearing steel rollers.

MDF Aluminum Frame Soundproof Folding Wood Partition Wall For Conference Center 1

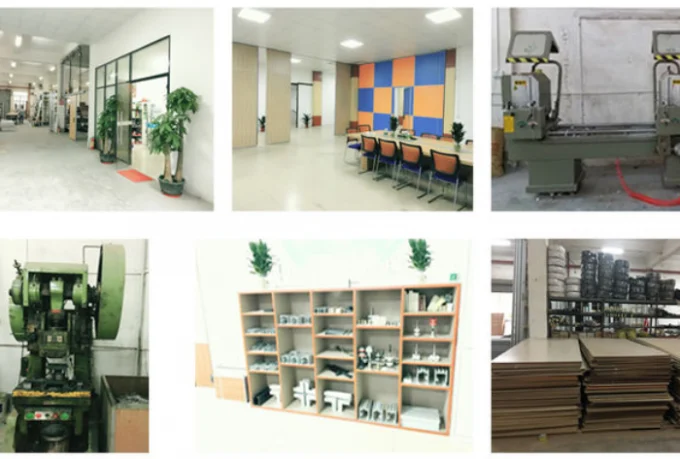

3.About Us

Guangdong Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing Movable Partition Walls System.

We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m2. And we have around 10 years experience in it. There is an ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system, and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines, and many other countries.

MDF Aluminum Frame Soundproof Folding Wood Partition Wall For Conference Center 2

Specifications

General Use	Soundproof Partition Walls Are Used For Interior Decoration
Type	85 Type
Material	MDF,Aluminium
Size	Customized,Partition Wall Customized
Application	Commercial Building And Residential House
Product Name	Acoustic Partition Walls,soundproof Partition Walls
Feature	Soundproof,Fireproof
Advantage	Free Of Floor Track,Professional Design Team&factory Manufacture&fashionable Outlook,Soundproof,Competitive,Fireproof
Function	Soundproof
Surface Treatment	Melamine
Frame Material	Aluminium
Highlight	Soundproof Folding Partition Wall , Conference Wood Partition Wall

Product Details

Place of Origin	Guangzhou, China
Brand Name	EBUNGE
Certification	ISO 9001
Model Number	85 mm folding partition walls
Packaging Details	Paper carton, outside with wooden box.
