Product Description

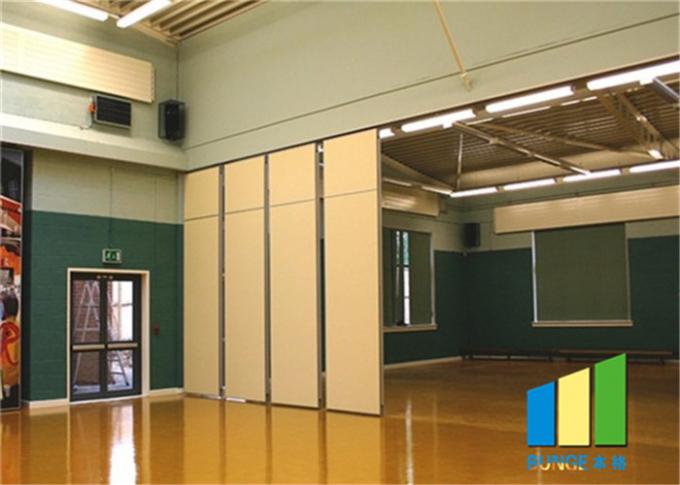

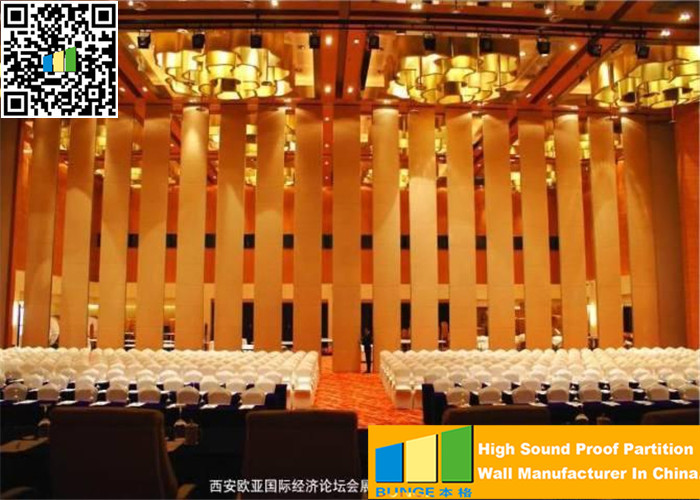

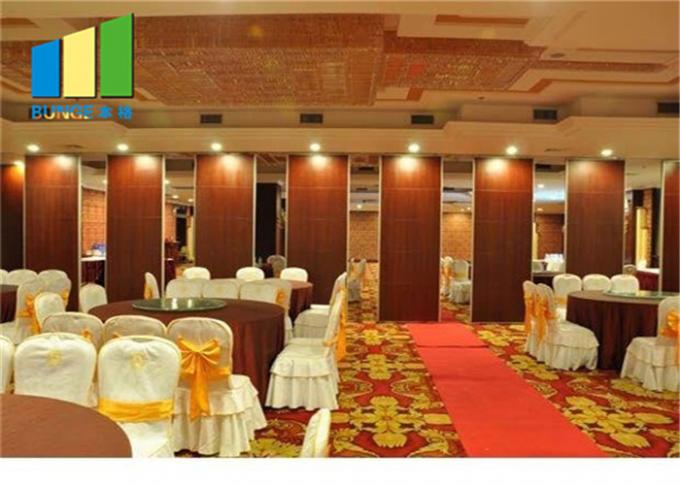

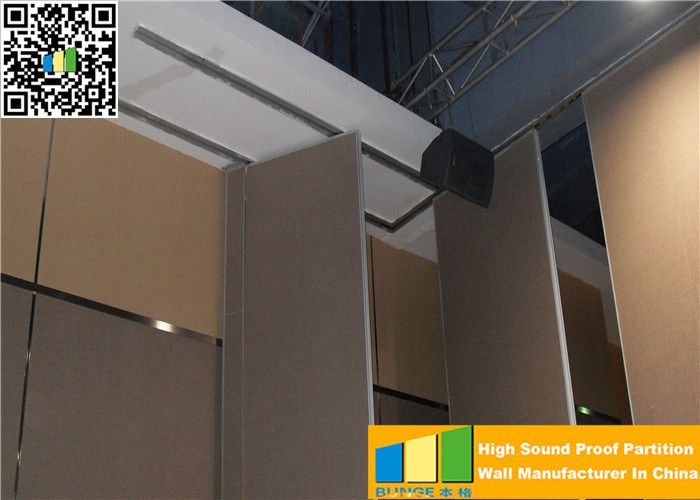

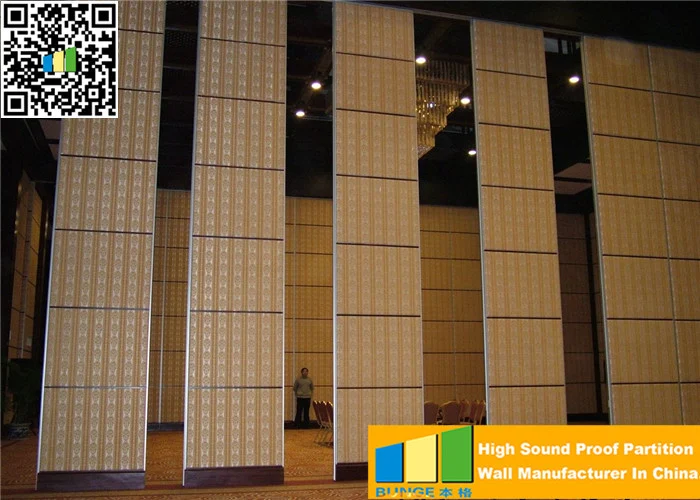

MDF Acoustic Partition Walls Interior Divider For Office & Restaurant
Description:
Our movable and operable partition system accessories are custom for each client and project , and they are also made of superior material. Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test, we have passed the Eco-protection test and Fireproof test , to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system .
|
BUNGE BG-65# Series
|
||||||||
|
Base board
|
Hoisting weight (kgs/ã¡)
|
STC (db)
|
Structure material
|
Top/Bottom Telescopic mechanism(mm)
|
Width(mm) Min/Max
|
Height(mm) Min/Max
|
Thickness (mm)
|
Fire Safety
|
|
Plywood MDF
|
22-35kgs/ã¡
|
32db
|
Aluminium
|
22.5mm
|
500 / 1230mm
|
2000 / 4000mm
|
65mm
|
optional class o
|
|
Melamine Surface
|
||||||||
|
Fabric/Leather Surface
|
32db / 35db
|
|||||||
|
BUNGE BG-85# SERIES |
||||||||
|
Base board
|
Hoisting weight (kgs/ã¡)
|
STC (db)
|
Structure material
|
Top/Bottom Telescopic mechanism(mm)
|
Width(mm) Min/Max
|
Height(mm) Min/Max
|
Thickness (mm)
|
Fire Safety
|
|
Plywood MDF
|
28-40kgs/ã¡
|
38db
|
Aluminium
|
22.5mm
|
500 / 1230mm
|
2000 / 6000mm
|
85mm
|
optional class o
|
|
Melamine Surface
|
||||||||
|
Fabric/Leather Surface
|
38db / 42db
|
|||||||
|
BUNGE BG-100# SERIES |
||||||||
|
Base board
|
Hoisting weight (kgs/ã¡)
|
STC (db)
|
Structure material
|
Top/Bottom Telescopic mechanism(mm)
|
Width(mm) Min/Max
|
Height(mm) Min/Max
|
Thickness (mm)
|
Fire Safety
|
|
Plywood MDF
|
35-45kgs/ã¡
|
45db
|
Aluminum
|
30mm
|
500 / 1230mm
|
6000 / 15000mm
|
100mm
|
optional class o
|
|
Melamine Surface
|
||||||||
|
Fabric/Leather Surface
|
45db / 52db
|
|||||||
Details of Operable Glass Room Partition Wall System On Wheels For Meeting Room
Specifications
| Product Name | Operable Glass Room Partition Wall System On Wheels For Meeting Room |
|---|---|
| Material | MDF + Aluminum |
| Color | Multe Color |
| Width | 500 / 1230mm |
| Height | 2000 / 13000mm |
| STC Coeffcient | 32 / 53db |
| Key Words | Operable Glass Room Partition Wall System On Wheels For Meeting Room |
| Highlight | movable walls on wheels , acoustic movable walls |
Product Details
| Place of Origin | China |
|---|---|
| Brand Name | Bunge |
| Certification | SGS,CE etc. |
| Model Number | BG85 # movable partition wall |
| Packaging Details | Operable Glass Room Partition Wall System On Wheels For Meeting Room : Carton package, MDF batten on four section sides ,foam board on both front face. |
