Product Description
Fire Resistant Manual Rotating Sliding Noise Barrier Movable Wall Partition For Hotel
Bunge Partition wall description
BUNGE Partitions panels are hung from a precision extruded heavy duty aluminum top track with ball bearing trolleys. Suspended from the structure by threaded steel rods or brackets. No floor track or guides are required.
Each partition comprises2 no.adjustable wall mounted jamb posts suitable for opening of unlimited width. Panels are positioned within the jamb posts and locked into position by means of two retractable acoustic seals operated by a single control, securely fastening the panels between the floor and top track with flexible acoustic seals; creating a very good seal and locking the panels firmly in position across the opening. The last panel positioned has an additional telescopic vertical element which finally exerts pressure on all panels, ensuring that the panels are tightly closed together and the acoustic seals are fully compressed for maximum efficiency. The system is also availiable with electric panel operation. Constructed for a long trouble free life, the panels have internal frames incorporating the precision mechanical operating mechanism.
They are faced both sides as standard with high density particle board which can be finished with a wide range of exciting materials to suit the clients’ requirements.
Panel edges are fitted with precision interlocking trim sections with vertical acoustic magnetic seals. Cavity filled with acoustic sheet material bonded to the inside of the panel boards depending on the acoustic requirement.Trimless panel edges are also available (non-visible profiles).

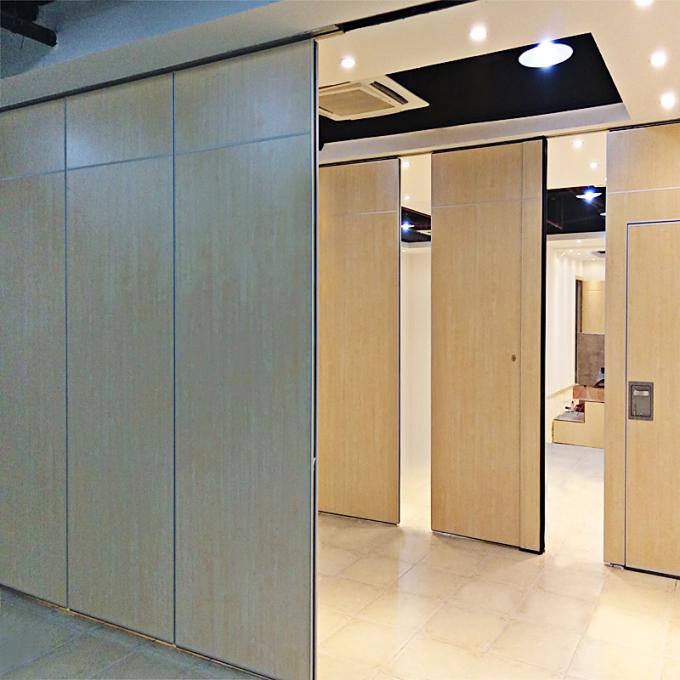

Installation site of partition wall
1: Installation track
Track is the base, is the priority among priorities of all links, through percussion drilling expansion screws, welding Angle iron and other steel materials fixed up.
2: Insert the door panel
The moving door panels are suspended in the rails without any support on the ground.
3: Installation and debugging
Free and flexible, move the door panels according to whatever you need to change the layout

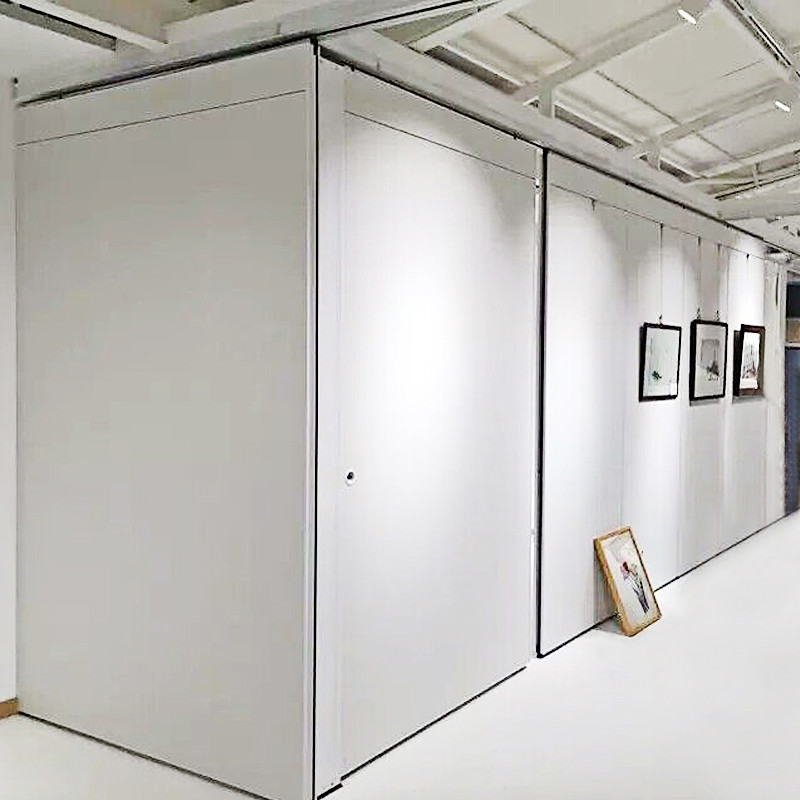

4: Close against the wall
Convenient collection, save space
Technical Details
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |

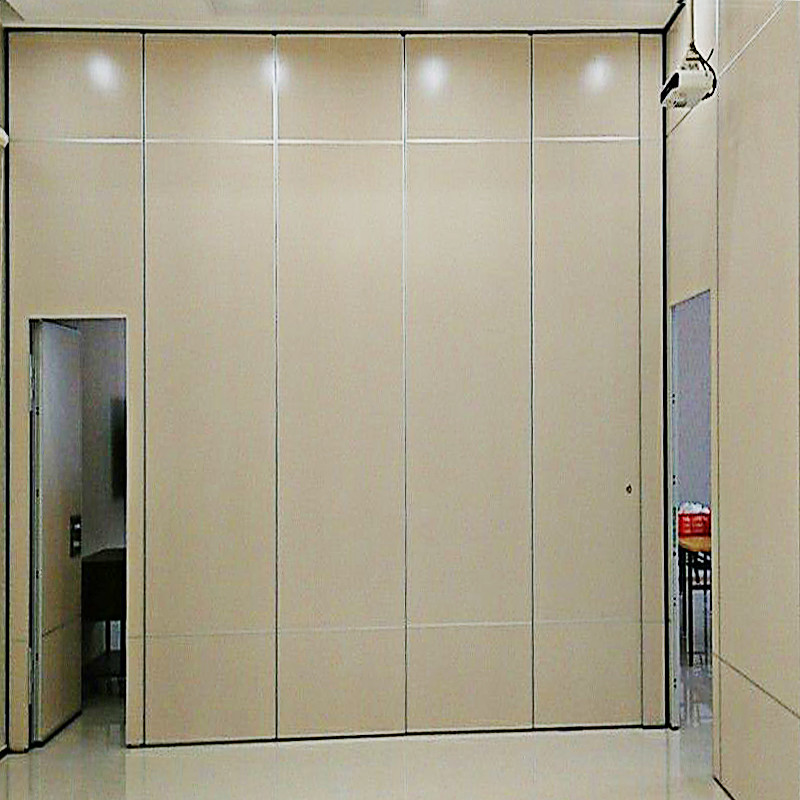

| Passdoors | Single door or Double door | ||
| Sound insulation | 28-38dB Rw | 28-42dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) | ||
Specifications
| Product Name | 65 Series Partitions Wall |
|---|---|
| Material | Fabric Or Leather |
| Thickness | 65 Mm |
| Advantage | Movable Soundproof |
| Height | Max 4000 Mm |
| Usage | School Church Auditorium Concert Hall |
| Highlight | movable partitions systems , acoustic movable walls |
Product Details
| Place of Origin | China(mainland) |
|---|---|
| Brand Name | EBUNGE |
| Model Number | 65 Series Partitions wall |
| Packaging Details | Partition board paper packaging, and finally packed in wooden carton |
