EBUNGE Partition Solution

Malaysia Aluminum Folding Partition Wall Movable Acoustic Partition Door For Meeting Room

High quality Malaysia Aluminum Folding Partition Wall Movable Acoustic Partition Door For Meeting Room from China, China's leading product market acoustic operable partitions product, with strict quality control movable acoustic partition walls factories, producing high quality movable acoustic partition walls Products.

Request A Quote

Product Description

Malaysia Aluminum Folding Partition Wall Movable Acoustic Partition Door for Meeting Room



Acoustic partition doors details



Acoustic partition doors are used to divide meeting rooms, conference rooms, restaurant and banquet halls etc., it provides convenient and effective space management solutions, the panels move on a ceiling track with no requirement of floor guides or rails, its has been extensively applied to hotel industry.

BUNGE Factory offers products and service with the end user in mind. We build in features that provide benefits to the owner over the life of the partition. Features such as protective edge trim will keep your partitions looking good for many years to come.

The acoustic partition doors consist of a series of interlocking flat panels and the fast set retractable top and bottom seals provide the easiest in-field operation, a simple half-turn of the waist high removable handle extends or retracts the sound seals.

The quick set retractable seals save the owner a great deal of time during setup and take down Time means money, especially for clients that rent their facilities for meetings and other functions.

There are many finishes to choose, such as melamine, fabric, leather, wood veneer, high-pressure laminate or other custom surfaces, panels also be supplied unfinished(raw mdf or plywood) for field decoration to compliment the building environment.

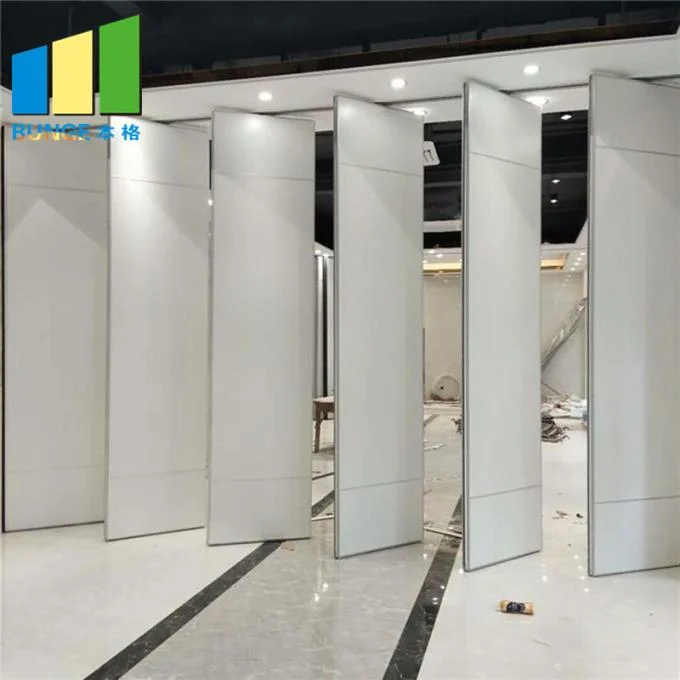

Malaysia Aluminum Folding Partition Wall Movable Acoustic Partition Door For Meeting Room 0



Technical Information



Model BG-65 series BG-80 series BG-100 series BG-high series
Suspension system Aluminum hanging Aluminum hanging Aluminum hanging Steel hanging
Basic thickness 65mm 85mm 100mm 100mm
Total thickness 65/75/85/95mm 85/90/100/110mm 100/120/130mm 100/120/130mm
Max height Up to 3800mm Up to 4500mm Up to 6500mm Up to 12000mm
Width 600-1230mm 600-1230mm 800-1230mm 800-1230mm
Floor/ceiling sealing strength Telescopic aluminum tube with rubber strip
Side walls sealing strength Double seal tape
Sound insulation level 26dB-30dB 28dB-34dB 32-40dB 32-40dB
Panel structure Aluminum frame with wooden keel Aluminum frame with steel keel
Panel density 22-28kg/sqm. 24-32kg/sqm. 32-50kg/sqm. 40-68kg/sqm.
Surface material Melamine laminate/fabric/PU leather/wallpaper/veneer/customized

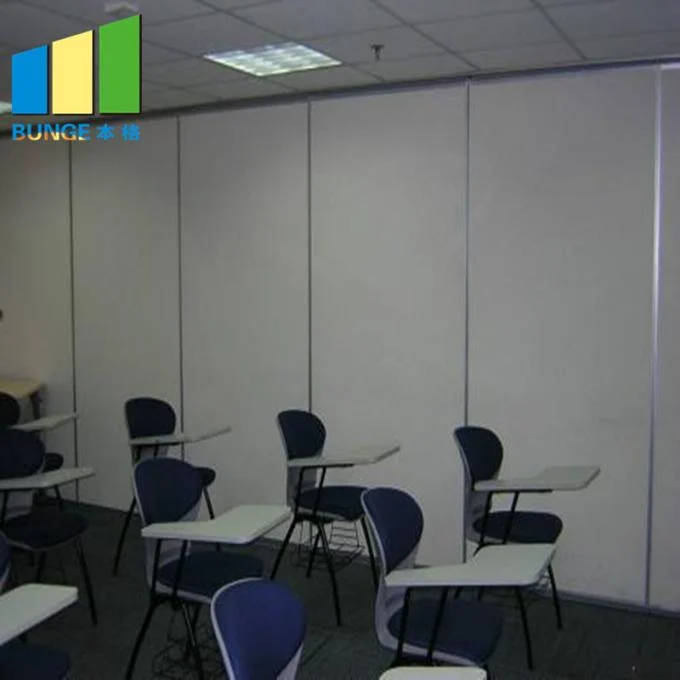

Malaysia Aluminum Folding Partition Wall Movable Acoustic Partition Door For Meeting Room 1



Acoustic partition doors features



Room to move, room to work or play. Public meeting or private function, assembly or seminar: Movable Acoustic Walls and Sliding Folding Partitions put all the options at your fingertips.



Gliding effortlessly along a concealed track suspended above the ceiling, our movable walls can provide all the acoustic and aesthetic qualities of a fixed wall, with the immeasurable advantage of maximum flexibility.



A variety of configurations and divisions can be achieved easily and rapidly. Once in place, spring loaded seals lock the panels into position.



The fully modular system allows for design on a project by project basis, taking account of all individual requirements. Installation is carried out by highly experienced engineers.



In essence, our acoustic partition doors can remove the barriers of your building’s design, allowing you to make the most of your available space.

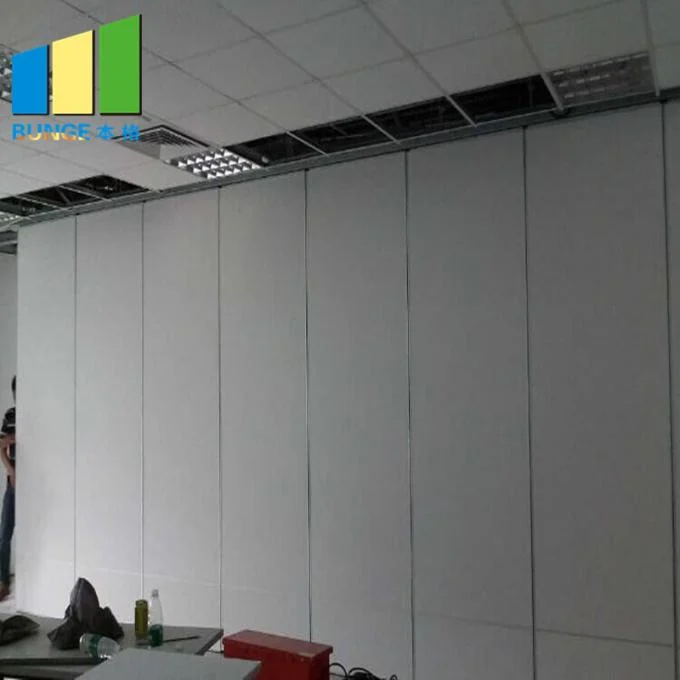

Malaysia Aluminum Folding Partition Wall Movable Acoustic Partition Door For Meeting Room 2



Specifications

Product NameAcoustic Partition Door
ApplicationMeeting Room Partitions
SizePartition Walls Customized
StyleFolding And Sliding
Pass DoorSingle Or Double
ServiceOEM ODM
Highlightacoustic operable partitions , movable acoustic partition walls

Product Details

Place of OriginGuangzhou, China
Brand NameEBUNGE
CertificationISO9001
Model Number65 mm acoustic partition doors
Packaging DetailsPaper carton, outside with wooden boxes
Project Support

Send Your Project Details

Share the application, opening dimensions, quantity and preferred finish. The EBUNGE team will review the information before preparing a project-specific response.

  • Current product is recorded automatically
  • Drawings and reference files are supported
  • Project requirements remain editable before submission
Drawing or reference file
No file selected
