Product Description

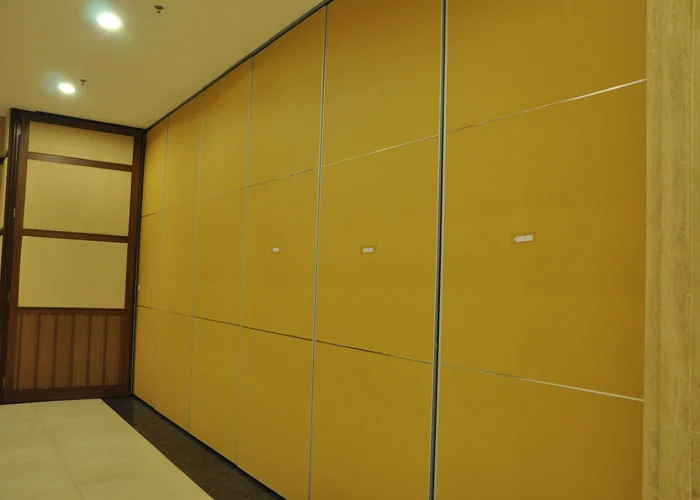

Light Weight Partition Wall Panel , Conference Room Dividers , For Meeting Room
Applications :
1. Change the room space freely dividly.
2. Heavy Track loading capacity make sure the safety of Partition .
3. Precise welding between separate rail can eliminate repairing and maintenance rate .
4. Partition retract and push easily for one people to handle the operating work .
5. Wide application: can be used in Office place , commercial place , exhibition place , Hospital place .
Specifications:
|
Technical Parameter for Partition Panel |
Panel Width |
500~1230mm |
|
Panel height |
2000~6000mm |
|
|
Sound proof |
36~42db |
|
|
Operation |
Manual |
|
|
Frame |
Aluminum |
|
|
Vertical profile |
Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside |
|
|
Finish options |
Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish |
|
|
Base options |
Plywood, Gypsum, steel, MDF |
|
|
Max width |
Unlimited |
|
|
Panel weight |
25-40kg/sq |
|
|
Pass door selection |
door |
Single dor or double door |
|
Seals |
Top |
Manual |
|
bottom |
Manual |
Operation :
Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier . No floor track shall be used .
Track :
The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .
Seals :
Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system . Retractable seal drop will be 23mm
Specifications
| Material | Aluminum |
|---|---|
| Surface | Wooden |
| Thickness | 85mm |
| Sound Proof | 36 / 42 DB |
| Weight Kg/m2 | 25 / 35 |

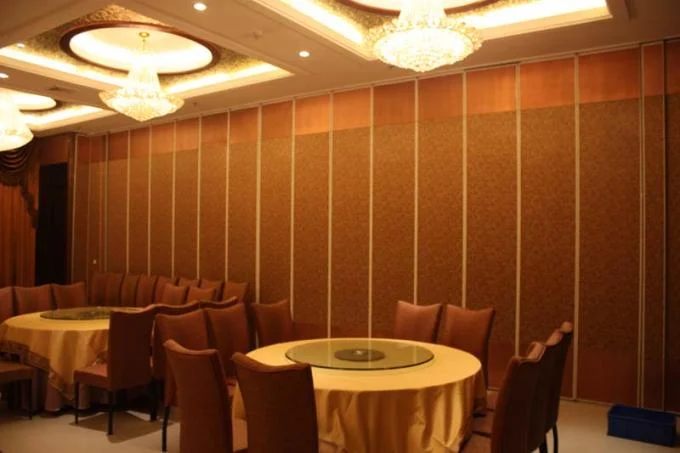

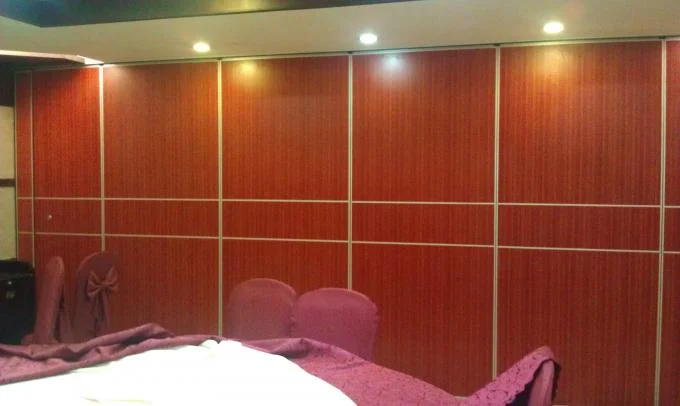

| Application | Hotel , Banquet Hall .meeting Room And So On |
| Highlight | conference room dividers , banquet hall room dividers |
Product Details
| Place of Origin | China |
|---|---|
| Brand Name | BUNGE |
| Model Number | Type 85 |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face |
