EBUNGE Partition Solution

Interior Wooden Sound Proofing Acoustic Room Dividers / Folding Partition Wall

High quality Interior Wooden Sound Proofing Acoustic Room Dividers / Folding Partition Wall from China, China's leading product market conference room dividers product, with strict quality control banquet hall room dividers factories, producing high quality banquet hall room dividers Products.

Request A Quote

Product Description

Interior Wooden Sound Proofing Folding Wall Partitions Acoustic Room Dividers

Acoustic Room Dividers Details

Model: BG65,BG85,BG100

Acoustic Room Dividers thickness: 65mm~2.56inch, 85mm~3.35inch, 100mm~3.9inch

Board thickness: 9mm or 12mm

Blinds thickness: 16mm,25mm

Partition-wall standard length: ANY

Partition-wall standard height: 2000—13000mm, 78.7inch ~ 512inch

Optional material: Fabric/Melamine board/Glass/metal board/Aluminum Composite Panel/Soft panel/Blinds/Wooden board

Description partition wall / folding door / movable wall /

Characteristic: Movable / Stable Structure/ Sound insulation / Pro-environment/ fireproofing / Stylish

Product dominant: Design systematization / Industrialization productions / Standardization Installation / Diversification working / Modernization appearance

Service: Supply consulting service, CAD project, office layout design /Work environment consulting /Products instruction

Sales Countries: Mace in china. Sales all over the world.

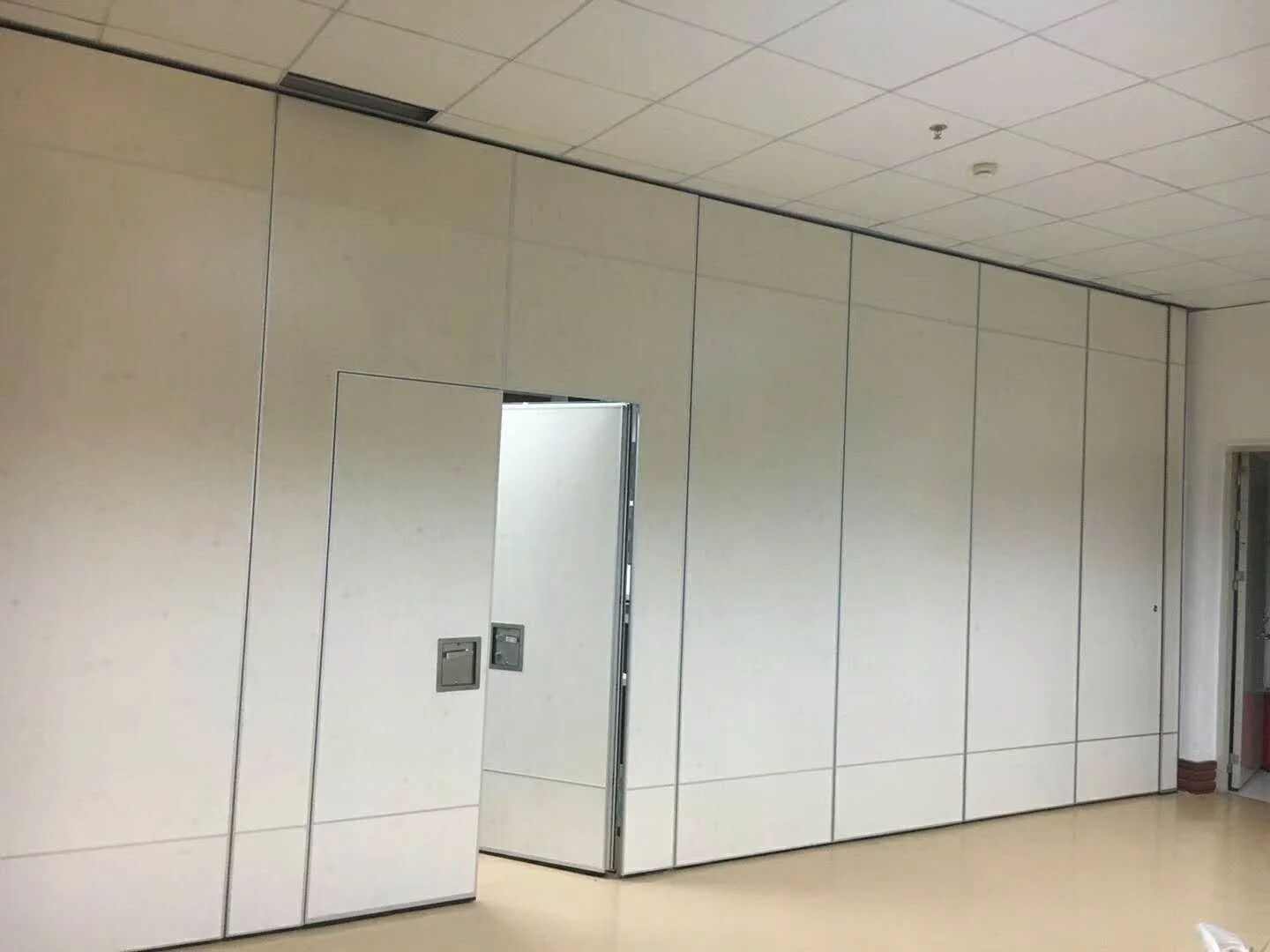

Interior Wooden Sound Proofing Acoustic Room Dividers / Folding Partition Wall 0

Specifications of Acoustic Room Dividers System



TYPE
BG65 BG85 BG100
Panel suspension
Top hung only
Track system
Single or twin point
Panel thickness
65MM
85MM
100MM OR 125MM
Panel height
Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept
Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document ‘M’disabled doors-optional
Max height
4000mm with heavy duty track
6000mm with heavy duty track
18000mm with heavy duty track or steel track
Panel width
600-1200mm
Frame construction
Aluminium
Aluminium
Aluminium/steel
Face material
9mm/12mm
9mm/12mm
9mm/12mm/15mm
Fire safety
optional Class I or O
Vertical profiles
Aluminium,anodised with sealing
profiles,painted-optional
Aluminium,anodised with sealing profiles,painted-optional
Aluminium,anodised with sealing profiles,painted-optional
Retractable seals
Aluminium,black with double rubber seals
Aluminium,black with double rubber seals
Aluminium,black with double rubber seals
Operation of seals
Manual,with supplied operating handle
Locking
Optional lock to pass doors
Pass Doors
Single open in oanel or double open in two panel
Sound insulation
41,43,48dB Rw
43,48,51,53dB Rw
48,51,53,58dB Rw
Weight
Approx 33-40kg/sq M
Approx 43-50kg/sq M
Approx 63-70kg/sq M

Interior Wooden Sound Proofing Acoustic Room Dividers / Folding Partition Wall 1


The features of Acoustic Room Dividers



1.The materials of acoustic room dividers are varied and varied, and the characteristics of the hotel can be selected according to the overall decoration style of the hotel.



2.The outer frame that can be cut into the hotel is made of aluminum alloy, and its decorative surface is satisfied according to the customer’s needs. For example, the veneer is made of non-combustible material and has strong fireproofing material. And the sound insulation effect of the partition is also very good.



3.The acoustic room divider is highly utilized, its design is the integration of parts, which is to facilitate the better combination, so its combination is powerful, it can be reused, which reduces the cost of customers, can also achieve environmental protection. Energy saving and other functions.



4.The installation period of the acoustic room divider can be short, and the pollution of the construction is small, so that the entire project can be quickly improved. Efficiently meet the needs of customers.



5.The choice of acoustic room dividers can be varied, according to the needs of the hotel, use different kinds of partitions, choose the partition suitable for the hotel style, will bring more aura to the hotel.

The acoustic room divider is skillfully used in various places of the hotel, bringing a variety of convenience and beauty, and is well received by customers.



6.The surface decoration surface of the acoustic room dividers can have various choices. According to the family, the decorative surface of the hotel can be compared with the matching style according to the style of the home, which can make the whole environment look new.



7.The biggest feature of the acoustic room divider is that it can be moved and can be reused. Its material will not bring waste to the environment. Therefore, the movable partition material is a green material. For example, many company addresses will be continuously relocated. Then the company needs to consider the reusability of the company’s installed activity partition, which is more convenient for the user’s service life, so it is a relatively cheap and cost-effective decoration.



8.Can be into a acoustic room dividers of the material of a variety of colors, a variety of material components can be used in conjunction with each other, which can reduce material waste. It is efficient, stylish, elegant, concise, generous, beautiful and exquisite.

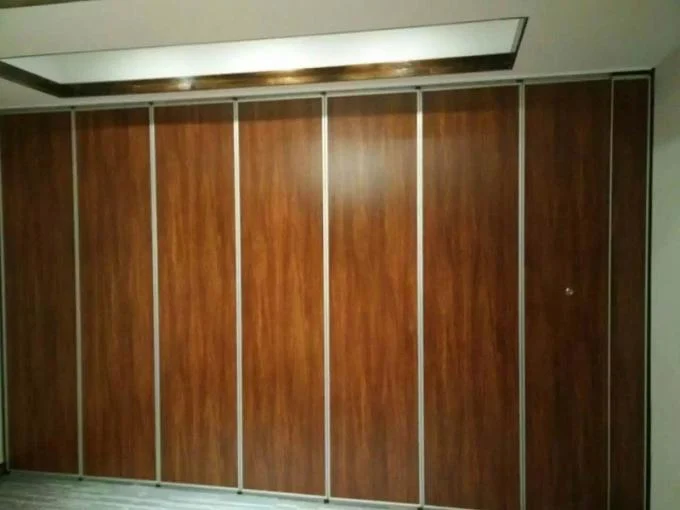

Interior Wooden Sound Proofing Acoustic Room Dividers / Folding Partition Wall 2

Specifications

Open StyleSliding
Product NameAcoustic Room Dividers
FeatureSound Proofing
Size85 Mm
ColorAccept Customized
ApplicationBanquet Hall,office,function Room
Panel Width500 Mm--1230 Mm
Door MaterialMelamine Board
SurfaceMelamine,leather,fabric,plywood
PositionInterior
Width85 Mm(3 1/4 Inch)
Highlightconference room dividers , banquet hall room dividers

Product Details

Place of OriginGuangdong
Brand NameBANGE
CertificationISO9001
Model Number85 mm acoustic room dividers
Packaging DetailsCarton package, MDF batten on four section sides , foam board on both front face.
