Product Description

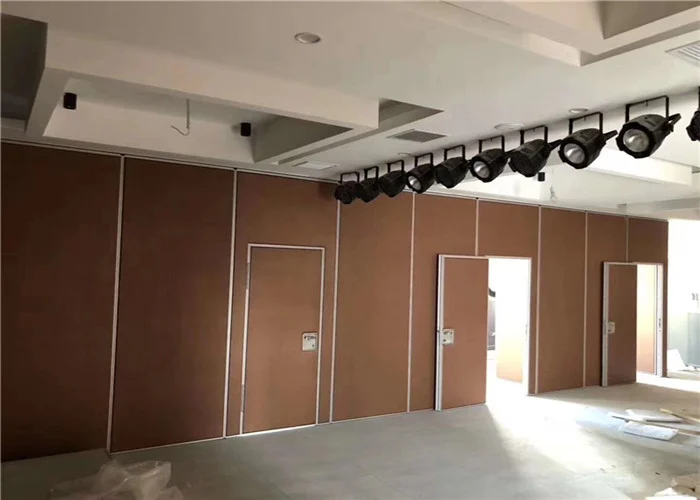

India Movable Screens Wooden Acoustic Sliding Folding Room Partitions Walls
Specification
1.Movable partition wall can separate the space speedy and convenient.
2.Top hung system without the need for a floor track.
3.Soundproof partition wall is made from a high-density aluminum frame, specially made rubber, excellent sound insulation cotton, and finish surface, etc.
4.Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.
5.The sliding partition wall is hanging on the aluminum track, assembled with muti direction wheels.
| Model | BG65 | BG85 | BG100 |
| Suspension System | Hanging System, with ceiling rails | ||
| Basic Thickness | 65mm | 85mm | 100mm |
| Max Height | Max 3800mm | Max 6000mm | Max 8000mm |
| Width | 800 -1230mm | ||
| Floor/ceiling Sealing strength |
Telescopic aluminum tube with rubber strip | ||
| Side Walls Sealing Strength |
Double seal tape | ||
| Base Board Thickness | 9 mm | 9 mm | 12 mm |
| Vertical Profiles | Aluminum anodized with sealing profiles | ||
| Retractable Seals | Aluminum black with double rubber seals | ||
| Operation | Manual System, with supplied operating handle | ||
| Pass Doors | Single or Double Pass-Through Door Available | ||
| Weight | Approx 22-35 kg/m² | Approx 25-40 kg/m² | Approx30-48 kg/m² |
| Finish Options | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||

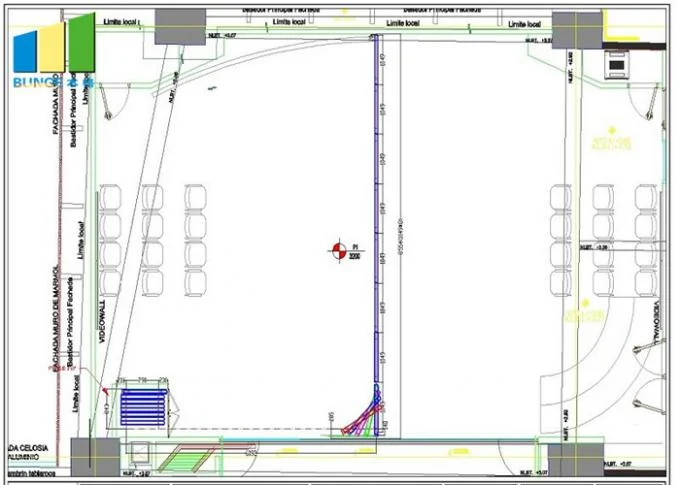

Finished Project
A nice project for a meeting room in Bangkok, Thailand.
The client chose the plywood finish, and he will decorate the surface with wallpaper at the project site.Size:14.65*5.5 meters, totally 80.6 square meters.
In addition, our client also bought polyester acoustic panels for the ceiling from us, 200 m², grey color.
Both the acoustic sliding conference room partition walls and acoustic wall panels were delivered to Bangkok Port together on April 6th.
Specifications
| Product Name | Folding Movable Partition Wall |
|---|---|
| Application | Hotel And Office |
| Surface Material | Customized |
| High | Less 4000mm |
| Function | Movable Wall |
| Highlight | Acoustic Sliding Folding Room Partitions , 4000mm Folding Room Partitions , Fireproof Movable Partition Wall |
Product Details
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO 9001 |
| Model Number | 65 mm soundproof partition door |
| Packaging Details | Paper carton, outside with wooden box. |
