EBUNGE Partition Solution

Hotel Soundproof Folding Door Temporary Movable Partition Walls Divider

High quality Hotel Soundproof Folding Door Temporary Movable Partition Walls Divider from China, China's leading product market Temporary Movable Partition Walls product, with strict quality control Soundproof Movable Partition Walls factories, producing high quality 100mm Thickness Movable Partition Walls Products.

Request A Quote

Product Description

Hotel Soundproof Folding Door Temporary Moveable Partition Wall Divider





Moveable Wall Divider Detail



For moveable wall divider to obtain high-quality sound insulation, it is not enough to focus on the increase in thickness. It also needs to combine the density of the material, sound absorption, sound insulation treatment, and fit. We believe that it is necessary have the following points:



1. The material of the moveable wall divider sound insulation cotton needs to have strong sound absorption performance, the density is appropriate, and the reflection angle is used to absorb the audio to achieve the effect of reducing the decibel.



2. The process of the moveable wall divider profile must be precise, horizontal and vertical, without special protrusions and asymmetry, to ensure that the moveable wall divider can ensure the tightness of the gap when the partition wall is combined, and achieve a better noise reduction effect.



3. In terms of material, the soundproof cotton inside the moveable wall divider should be made of double-layer processing color, and use better soundproof materials to effectively prevent buzzing.



4. Do not neglect the airtightness, the internal materials must be precisely fitted, and the sound insulation materials are best taken from pure natural materials.



5. If higher airtightness is pursued, soundproof curtains or other soundproof furniture should be installed outside the movable partition.



6. Moveable wall divider surfaces need to be composed of sound-absorbing panels or special flame-retardant fabrics instead of ordinary medium-density panels.



Technical Information

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

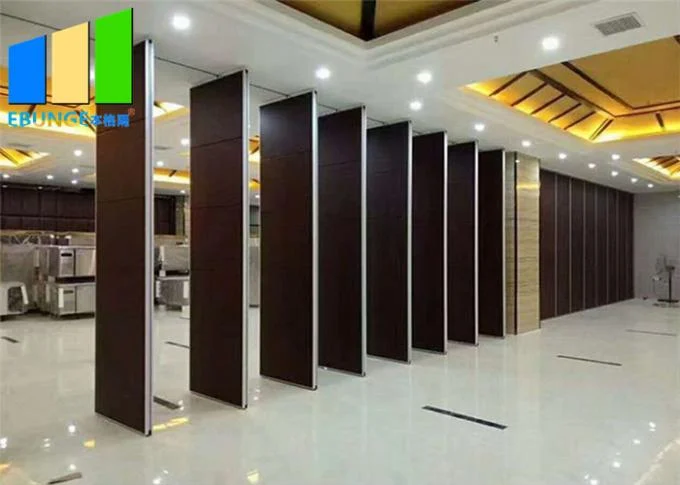

Hotel Soundproof Folding Door Temporary Movable Partition Walls Divider 0





Moveable Wall Dividers Features



A wide range of surface finishes are available for moveable wall dividers.

High performance multiple fill for maximum noise reduction.

Sound insulation aluminum frame structure, enhance the acoustic effect.

Unique track systems ensure quiet and easy operation.

Different models are available for a variety of acoustic requirements.

Specifications

Product NameMoveable Wall Divider
Panel Thickness100 Mm
Track MaterialAnodized Aluminum 6063-T6
Frame MaterialAnodized Aluminum 6063-T6
ApplicationHotel Partition Wall
FinishingMelamine
HighlightTemporary Movable Partition Walls , Soundproof Movable Partition Walls , 100mm Thickness Movable Partition Walls

Product Details

Place of OriginGuangzhou, China
Brand NameEBUNGE
CertificationISO 9001
Model NumberModel 100 moveable wall divider
Packaging DetailsPaper carton, outside with wooden box
