Name: Hotel Sliding Partition Walls, Folding Wall Sound Proof Door No Floor Track
Brand: EBUNGE

Hotel Sliding Partition Walls, Folding Wall Sound Proof Door No Floor Track

High quality Hotel Sliding Partition Walls , Folding Wall Sound Proof Door No Floor Track from China, China's leading product market acoustic sliding partition product, with strict quality control sound proof sliding partitions factories, producing high quality sound proof sliding partitions Products.

Request A Quote

Send Your Project Details

Product Description

Hotel Sliding Partition Walls , Folding Wall , Sound Proof Door , No Floor Track

Specifications:

Technical Parameter for Partition Panel	Panel Width	500 – 1230mm
	Panel height	2000 – 13000mm
	Sound proof	42 – 55db
	Operation	Manual
	Frame	Aluminum
	Vertical profile	Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside
	Finish options	Fabri c, veneer , HPL melamine , vinyl , carpet , customers own material , Bare finish
	Base options	Plywood , Gypsum , steel , MDF
	Max width	Unlimited
	Panel weight	35 – 48 kg / sq
Pass door selection	door	Single or double door
Seals	Top	Manual
Seals	bottom	Manual

Description :

The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards .

Operation :

Partitions shall be top supported , manually operated panels stacked in an area nominated in the plans. When closed , the operable wall shall provide a complete sound retardant barrier . No floor track shall be used .

Track :

The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .

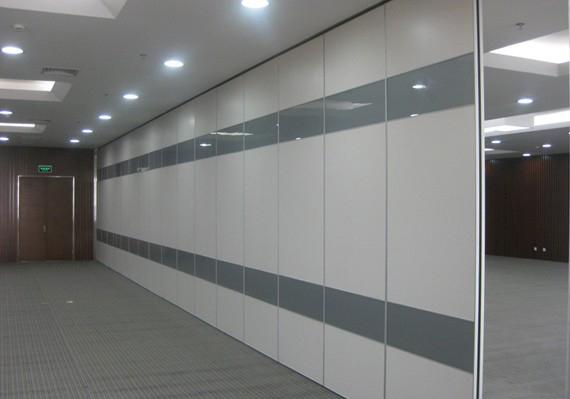

Hotel Sliding Partition Walls , Folding Wall Sound Proof Door No Floor Track 0

Hotel Sliding Partition Walls , Folding Wall Sound Proof Door No Floor Track 1

Specifications

Width	800 - 1230mm
Track	Aluminum
Application	Hotel , Hall .meeting Room And So On
Material	Veneer , Plaster , MDF , Melamin , Fabric
Open Style	Sliding
Position	Commercial
Highlight	acoustic sliding partition , sound proof sliding partitions

Product Details

Place of Origin	China
Brand Name	BUNGE
Model Number	Type100
Packaging Details	Carton package , MDF batten on four section sides , foam board on both front face
